SBL-B1 MiBoxer Single Colour 4-Zone Wall Panel Controller (battery powered)

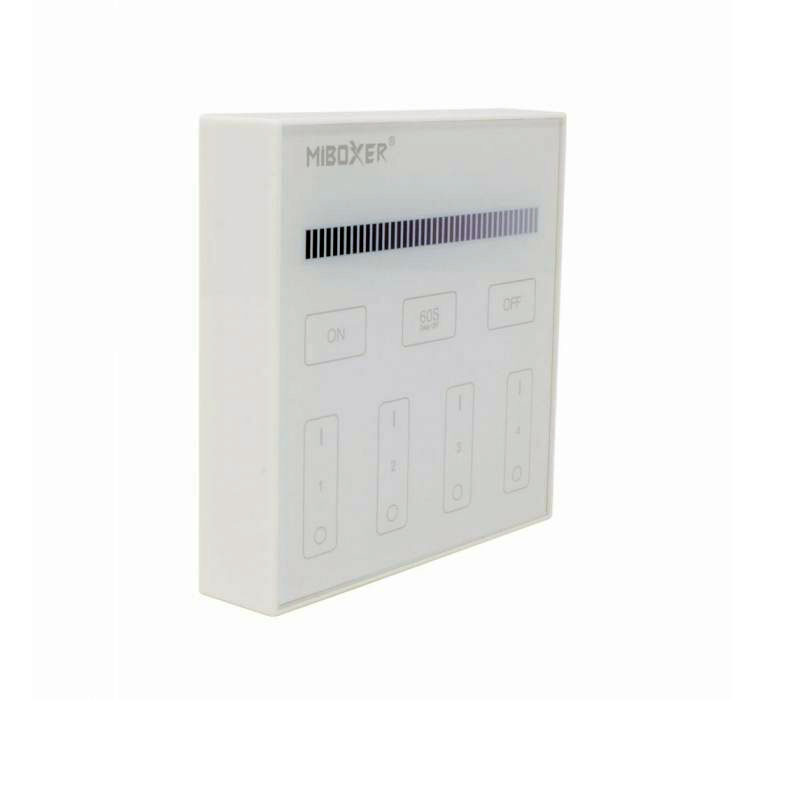

With the capacity to control up to four zones of single colour LED lighting together or individually, this wall panel features a toughened glass front with a touch sensitive dimming slider control, master power On/Off and individual power On/Off buttons for each zone. All the controls use an IC high precision touch sensitive system for a more stable and sensitive operation.
As an unlimited number of receivers / lights can be paired to each zone on the wall panel, it is possible to control multiple products in each of the four zones. Simply pair each product to your chosen zone and to operate individually, switch on the zone with the appropriate button and select the required brightness level using the touch slider control. A master On/Off button will switch all the zones On/Off together.
In addition a handy timer function will delay the switch off of your lighting so that when your luminaires are switched on you can select a 60 second Off timer. This is a very useful function which gives you time to exit a room or area before the lights turn off.
Compatible Mi-Light LED lighting sold separately. For product assistance please contact us by telephone, email or via the on-line chat.
Feature:
- Dimming touch slider
- Dimming slider
- 4 Zones control
- Lights off timer
- Optional sound indication on button press
- Quick and easy to pair with receivers
- 5 Year Guarantee
Technical Specification
Manufacturer: Mi-Light / MiBoxer
Product Type: Controller / Receiver
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: Battery Powered
Connectivity: RF
Size: L86 x W86x H16mm
Dimmable: No
Wireless Range: Up to 30 metres
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: 20uA
Operation Frequency: 2.4GHz
Battery Type: 2 x AAA Batteries
Operating Temp: -10 to 40ºC
