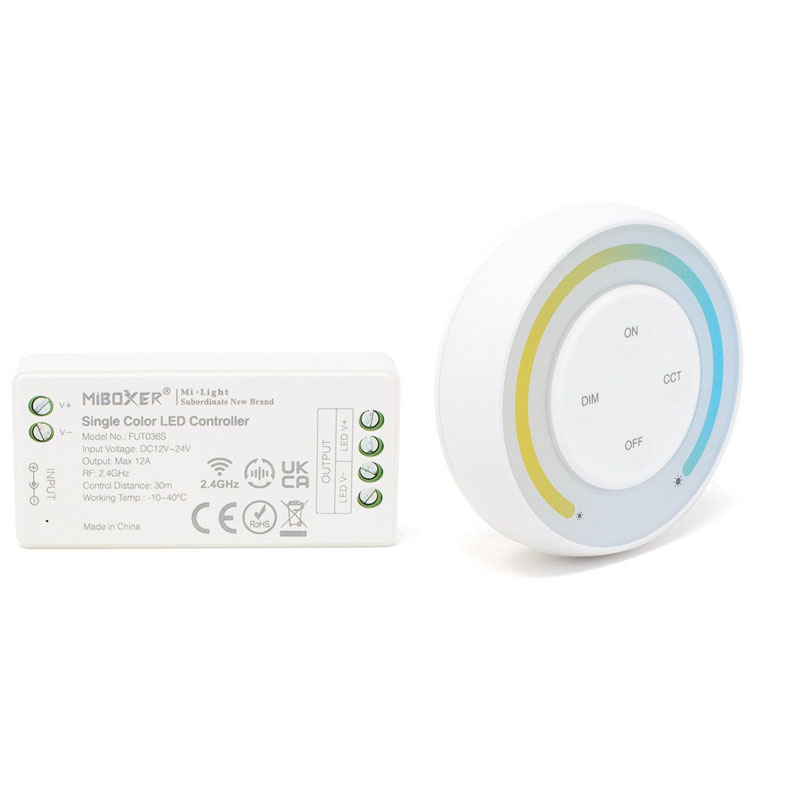

SBL-FUT036SA MiBoxer 2.4GHz Single Colour LED Controller Kit
This Wireless Single Channel RF Receiver and Sunrise Remote Controller set is supplied pre-paired giving you full control over your single colour LED lighting products up to a maximum of 12A. Additional 2.4GHz RF receivers can be paired if required as the receivers features auto transmitting & synchronising functions so when multiple receivers are paired to the same controller, providing they are all within 30m of each other and one unit is within 30m of the controller, all the receivers in the group will synchronise your lighting together with no interconnecting control cables. The receiver has an adjustable PWM frequency of 500Hz or 8KHz and the Sunrise Wireless Control Disk is magnetically attached to its back plate which can then be attached to many different surfaces as required using the sticky pad, simply lift off to use as the disc as a hand held remote or for when you need to change the batteries. Note: The Sunrise Remote Controller Disk
In addition to being able to pair with the compatible Mi-Light controllers, the receivers can also be paired to a smartphone application and they also support third party voice control products such as smart speakers (Additional hub required for these features).
Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the on-line chat.
Feature
- 2.4GHz Controller Kit
- For Single Colour LEDs
- 30m signal transmiting and synchronization
- Quick and easy to pair
Technical Specification
Product Type: Controller / Receiver
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Output Voltage: 12v / 24v DC
Connectivity: RF
Size Controller: ø70 x 24mm / Receiver: L74.5mm x W36mm x H12mm
Dimmable: No
Wireless Range: Up to 30 metres
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: 20uA
Operation Frequency: 2.4GHz
Battery Type: 3v (2x AAA)
Operating Temp: -10 to 40ºC
Total Output: Max 12A
Output Max: 12A/Channel
Smart Synchronisation: Version 2.0
