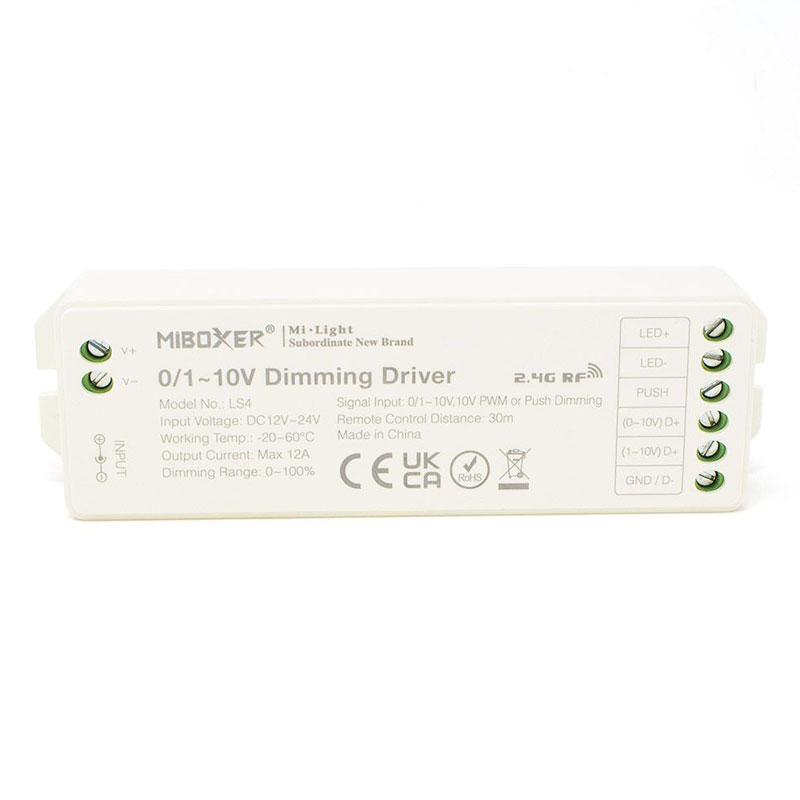

    SBL-LS4 MiBoxer 2.4GHz 0-10V Dimming Driver

      (0 Reviews) | Write a review
    SKU: SBL-LS4
    Discontinued
    Starting at: $34.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    Measuring just 124mm x 38mm x 23mm this compact low voltage single channel LED controller can control your single colour 12v or 24v LED products when paired to a compatible Mi-Light RF handset or wall panel on the 2.4GHz frequency.
    In addition, there are hard wired terminals for a 0-10v, 1-10v and "push dimming" inputs.  Using any of these control options will allow full smooth dimming froom 1-100% of your low voltage single colour LED lighting products.
    The receiver features auto transmitting & synchronising functions so when multiple receivers are paired to the same zone on the controller, providing they are all within 30m of each other and one unit is within 30m of the controller, all the receivers in the group will synchronise your lighting together with no interconnecting control cables.
    In addition to being able to pair with the compatible Mi-Light controllers, the receivers can also be paired to a smart phone application and they also support third party voice control products such as smart speakers (Additional 2.4GHz hub required for these features).
    Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the on-line chat.
    The dimmer is rated at a 12A maximum load.  The controller will accept a 12v or 24v DC constant voltage input.

    Feature

    • 2.4GHz / 0-10V Dimming Driver
    • Compatible with Mi-Light / MiBoxer handsets and wall panels
    • Smartphone Compatible
    • 30m signal transmitting and synchronization between receivers
    • Quick and easy to pair with handsets and wall panels

    Technical Specification
    Product Type:    Controller / Receiver
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Input Voltage:    12v / 24v DC
    Connectivity:    0-10v protocols
    Size:    L124mm x W38mm x H23mm
    Dimmable:    No
    Wireless Range:    Up to 30 metres
    Transmitting Power:    6dBm
    Operation Frequency:    2.4GHz
    Operating Temp:    -20~60°C
    Total Output:    Max12A
    Output Max:    12A/Channel
