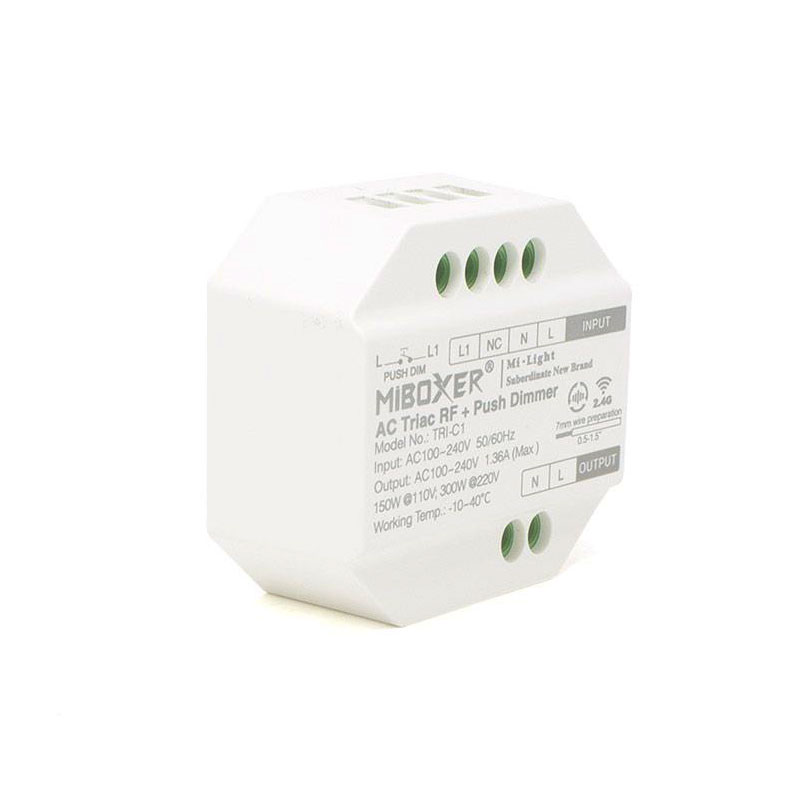

TRIC1 MiBoxer AC Triac RF + Push Dimmer
This AC Triac Dimmer is compatible with all the Mi-Light / Mi-Boxer range of 2.4GHz wireless RF handsets or wall panels and when paired through a compatible 2.4GHz Gateway or Hub the receivers can also be paired to a smartphone application. The receivers also support third party voice control products such as smart speakers (Additional hub required for these features).
The receiver features auto transmitting & synchronising functions so when multiple receivers are paired to the same zone on the controller, providing they are all within 30m of each other and one unit is within 30m of the controller, all the receivers in the group will synchronise your lighting together with no interconnecting control cables.
There is a connection for "Push Switch" control enabling you to switch or dim your mains powered lighting with a momentary hard-wired switch (third party product sold separately).
The switch will work with AC voltages of 100v - 240v AC with a maximum current of 1.36A, powering products up to 300w at 220v AC.
Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the online chat.
Feature
- 2.4GHz RF Receiver
- Compatible with Mi-Light / MiBoxer handsets and wall panels
- Smartphone Compatible
- 30m signal transmitting and synchronization between receivers
- Quick and easy to pair with handsets and wall panels
Technical Specification
Manufacturer: Mi-Light / MiBoxer
Product Type: Controller / Receiver
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 100v - 240v AC
Output Voltage: 100v - 240v AC
Connectivity: RF
Size :L49mm x W49mm x H25mm
Dimmable: No
Wireless Range: Up to 30 metres
Transmitting Power: 6dBm
Operation Frequency: 2.4GHz
Operating Temp: -10 to 40ºC
Total Output: Max1.36A
Output Max: 150W @ 110V / 300W @ 220V
