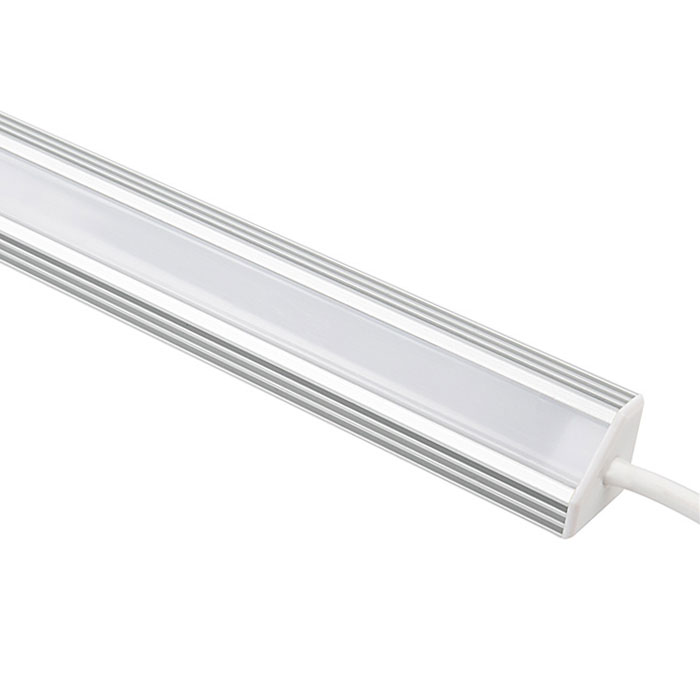

ALB series LED Light Bar Fixture has plug-and-play design, making it easy to link multiple light bars together and connect to power. The compact design can fit discreetly in narrow spaces while still producing a wide beam of high quality, bright light. Angled form factor mounts in corners to direct light outward. Use in low voltage applications such as the interiors of vans, trailers, RVs, and campers. Or, pair with a compatible power supply for household applications such as kitchen under cabinets, open shelving, work benches, and more. Surface mount with included mounting clips or with optional 3M double sided foam tape (sold separately).

Product Details:
Slim form factor has a depth of only 0.75"
DC barrel connectors (male on one end, female on other end) - see all plug-and-play accessories
Pair with compatible power supply for use in 120 VAC applications (sold separately)
Includes 2 mounting clips and screws
Wide 120° beam angle
Dimmable - see compatible dimmers (sold separately)
Brushed aluminum housing, frosted polycarbonate diffuser
Rated IP20

Specifications
Beam Angle:    120°
CRI:     90+
Certifications/Compliance:    CE, RoHS Compliant
Dimmable:    Yes
Dimming Type:    Pulse Width Modulation (PWM)
Electrical Connection:    5.5 mm x 2.1 mm DC barrel
Finish:    Aluminum
IP Rating:     IP20
Lens:    Frosted
Linkable:    Yes
Lumen Per Foot:    300 lm/ft
Material:    Aluminum, Frosted Polycarbonate Diffuser
Max Run in Feet:    7ft
Operating Temperature:    -25~+45 °C (-13~+113 °F)
Operating Voltage:    12 VDC
Rated Life (L70):    35000 Hours
Type:    Aluminum Housing, Linkable, Plug and Play, Rigid Light Bars
All specifications are subject to change without notice.
