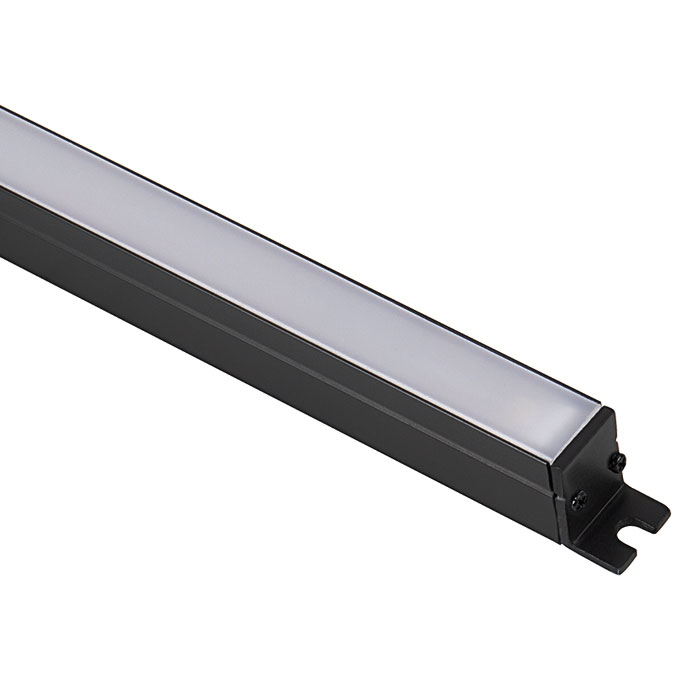

LED Light Bar - Under Cabinet Lighting - 135 lm/ft - 12V - Barrel Connector - 3000K/4000K/5000K
EGLB series LED Light Bar is a complete linear fixture ready for easy installation and powering in a wide range of applications. The low voltage and compact design provides discrete illumination in smaller locations such as RVs and trailer interiors without taking up lots of space. High CRI is ideal for environments that rely on accurate color rendering and striking visual displays. Black extruded aluminum is durable yet lightweight. Frosted lens distributes a wide beam of smooth hotspot free light.
Product Details:
Easy connection and linking with female DC barrel connector on one end (5.5 mm x 2.1 mm)
Wide 120° beam angle
No harmful UV emissions
Black extruded aluminum channel and end caps
Integrated screw mounting tabs on both ends
PWM Dimmable - 0-100%
35,000 hour (L70) lifespan
Rated IP20 - suitable for damp locations
12 VDC
5 year warranty
Specifications
Beam Angle: 120°
CRI: 90+
Certifications/Compliance: CE
Dimmable: Yes
Dimming Type: Pulse Width Modulation (PWM)
Electrical Connection: Female DC Barrel (5.5 x 2.1 mm)
Finish: Black
IP Rating: IP20
Lens: Frosted
Linkable: No
Material: Aluminum Housing, Polycarbonate Lens
Operating Temperature: -25~+45 °C (-13~+113 °F)
Operating Voltage: 12 VDC
Rated Life (L70): 35000 Hours
Type: Plug and Play, Rigid Light Bars
All specifications are subject to change without notice.
