    Single Color Injection LED Modules - Linear Constant Current Module w/ 3 SMD LEDs - 20PCS

      (4 Reviews) | Write a review
    SKU: SMCC3-12V

    Please Choose:



    Discontinued
    Starting at: $14.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Dec,21 and Fri,Dec,27. order with 2days,9hrs and 31 min.

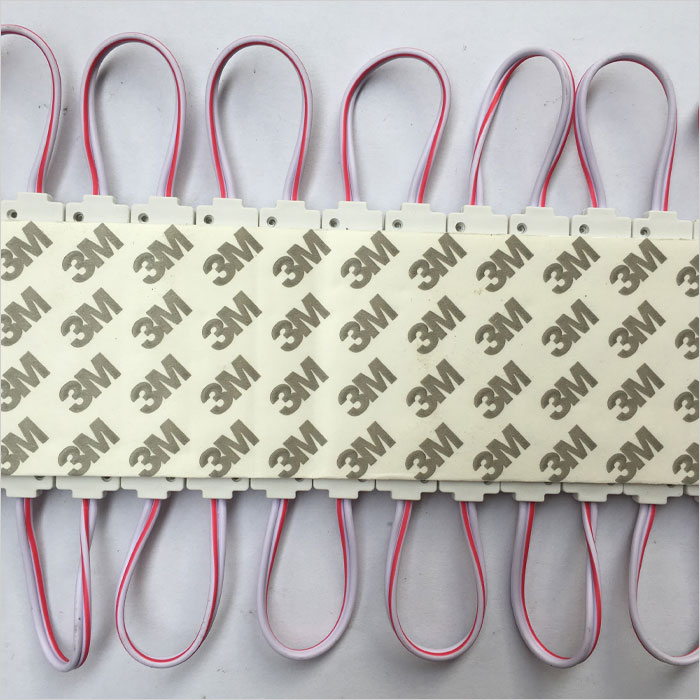

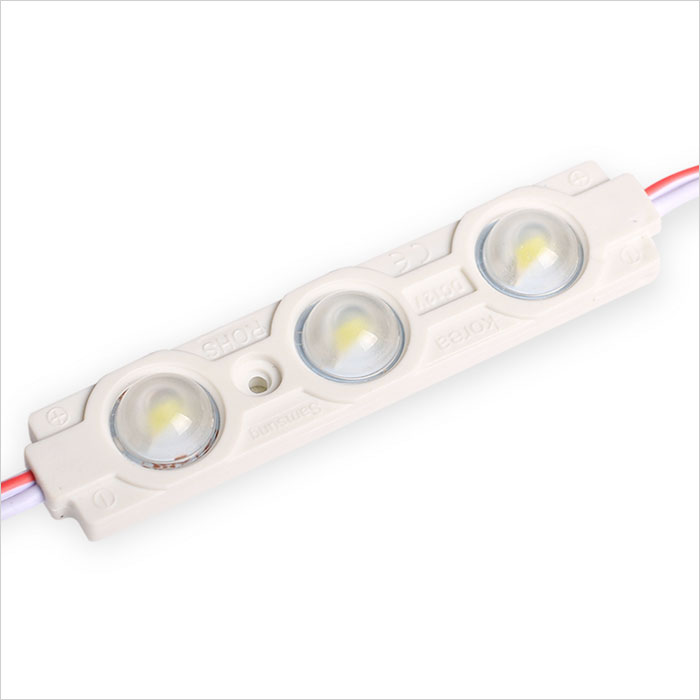

    LED Modules are designed to be a versatile solution for sign and display builders, electrical contractors, OEMs, and more. With high quality optics, each module contains 3 LEDS, and a lens that creates broad, uniform illumination without hotspots. Screw holes allow for permanent mounting, while 3M™ adhesive backing simplifies set up and take down for temporary applications like trade show displays. These modules have a sealed weatherproof body to be used in an array of lighting design applications such as channel letters or display booths.

    Warranties & Certifications

    Application & Use

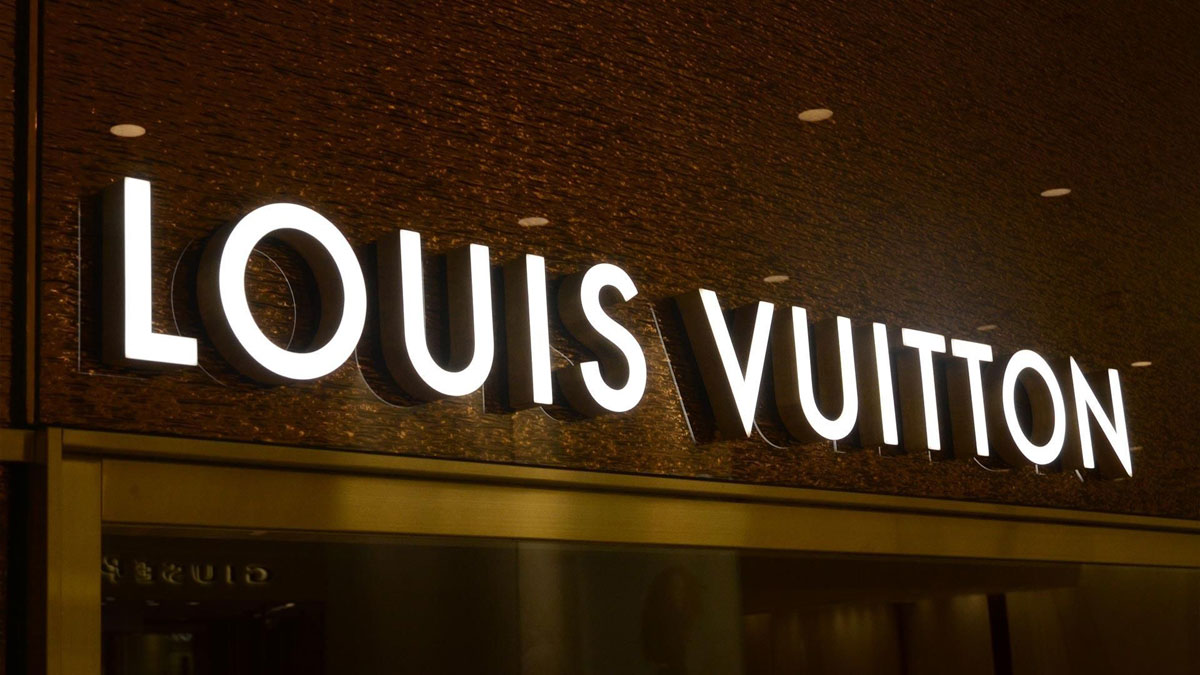

    Display Lighting, Sign Lighting, Storefront, Retail Shop, Channel Letters, Cove Lighting, Edge Lit Signs, Trade Show.


    TECHNICAL DETAILS
    Beam Angle:  170 degree
    Connection Type:  Pigtail
    Constant Current:  Yes
    Dimmable:  Yes
    Dimming Type:    Pulse Width Modulation (PWM)
    Enclosed Fixture Rated:  Yes
    IP Rating:  Weatherproof IP65
    LED Lifetime:  35000 Hours
    LED Quantity:  3 LEDs
    LED Type:  5730 SMD
    LEDs per Segment:  3
    Luminous flux:  35-45lm each led
    Material:  Plastic
    Max Module Run:  20
    Operating Temperature:    -20~+45 °C (-4~+113 °F)
    Standards And Certifications:    CE, RoHS Compliant
    Volts:    12 VDC
    Wattage Per Module:  1.5 Watts
    All specifications are subject to change without notice.
