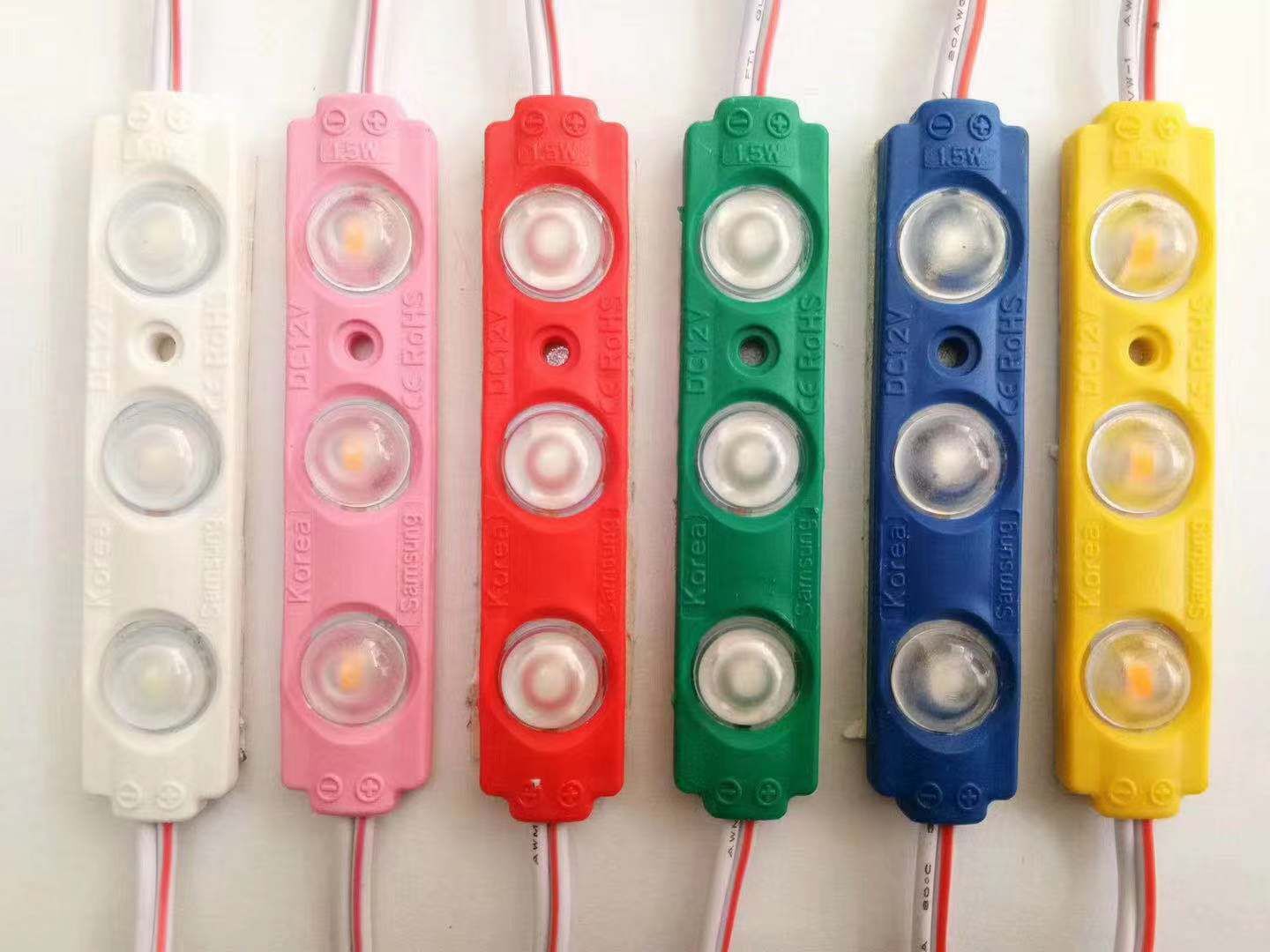

LED Modules are designed to be a versatile solution for sign and display builders, electrical contractors, OEMs, and more. With high quality optics, each module contains 3 LEDS, and a lens that creates broad, uniform illumination without hotspots. Screw holes allow for permanent mounting, while 3M™ adhesive backing simplifies set up and take down for temporary applications like trade show displays. These modules have a sealed weatherproof body to be used in an array of lighting design applications such as channel letters or display booths.

Warranties & Certifications

Application & Use
Display Lighting, Sign Lighting, Storefront, Retail Shop, Channel Letters, Cove Lighting, Edge Lit Signs, Trade Show.

TECHNICAL DETAILS
Beam Angle:  170 degree
Connection Type:  Pigtail
Constant Current:  Yes
Dimmable:  Yes
Dimming Type:    Pulse Width Modulation (PWM)
Enclosed Fixture Rated:  Yes
IP Rating:  Weatherproof IP65
LED Lifetime:  35000 Hours
LED Quantity:  3 LEDs
LED Type:  5730 SMD
LEDs per Segment:  3
Luminous flux:  35-45lm each led
Material:  Plastic
Max Module Run:  20
Operating Temperature:    -20~+45 °C (-4~+113 °F)
Standards And Certifications:    CE, RoHS Compliant
Volts:    12 VDC
Wattage Per Module:  1.5 Watts
All specifications are subject to change without notice.
