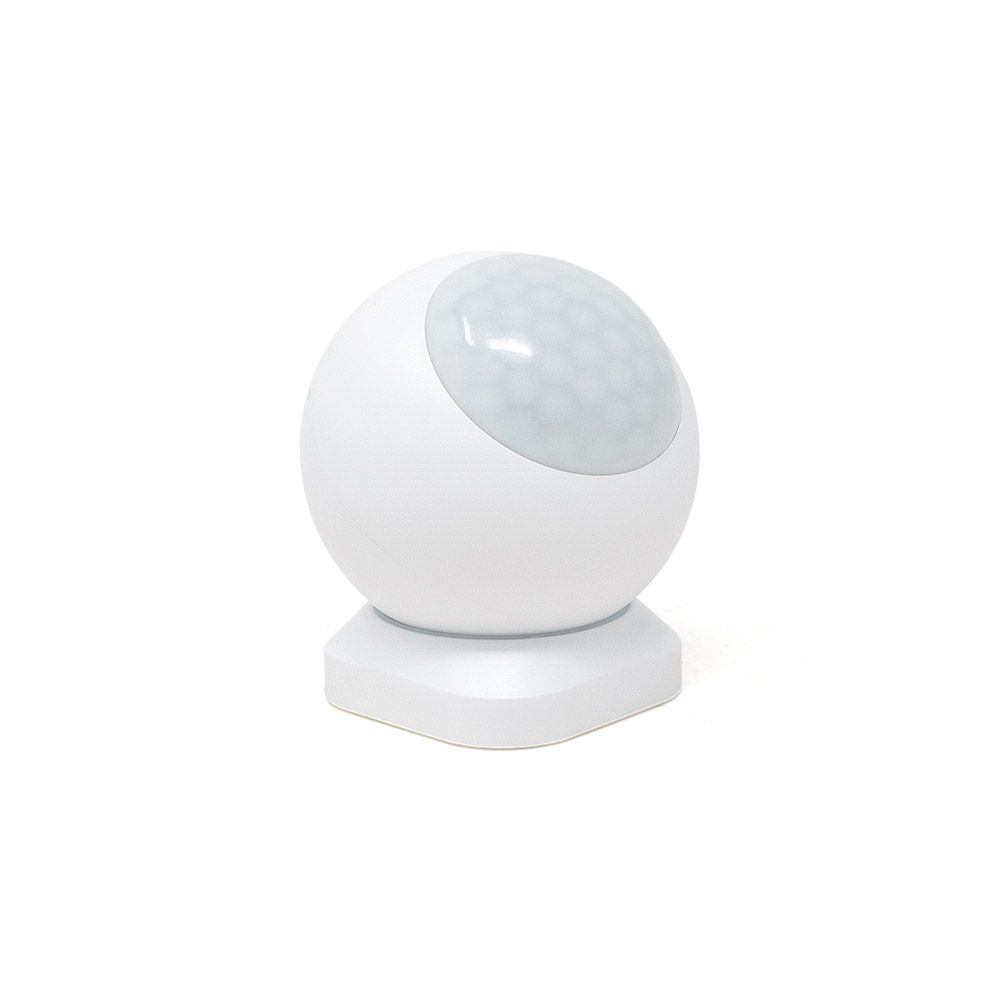

The PIR1RF is a superb wireless (battery-powered) multi-featured PIR sensor. The sensor includes a magnetic base that can be fitted to most surfaces using the attached sticky backing. The sensor attaches magnetically to the base, allowing a full 360° adjustment by simply positioning the sensor as required.

When paired to a 2.4GHz Mi-Light handset the sensor's parameters can be programmed using the handset, and the hold time can be adjusted to 30 seconds, 2 minutes, 10 minutes or 60 minutes. The light sense setting can be set so that the PIR sensor can only work in dark areas or in any light environment, Night light enables you to set the PIR sensor to switch on the lights when the light level in the environment is below 1%.

Technical Specification
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    PIR Sensor
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    Battery Powered
Connectivity:    ZIGBEE protocols
Size:    Ø49mm (Excluding Base)
Ø49mm x 56mm Height (Including Base)
Beam Angle:    120 degree
Dimmable:    No
Wireless Range:    Up to 30 metres
Voltage Type:    Not Applicable
Detection Angle:    120°
Detection Distance:    7m
Transmitting Power:    6dBm
Standby Power Consumption:    12uA
Operation Frequency:    Zigbee 802.15.4
Operating Temp:    -10 to 40ºC
