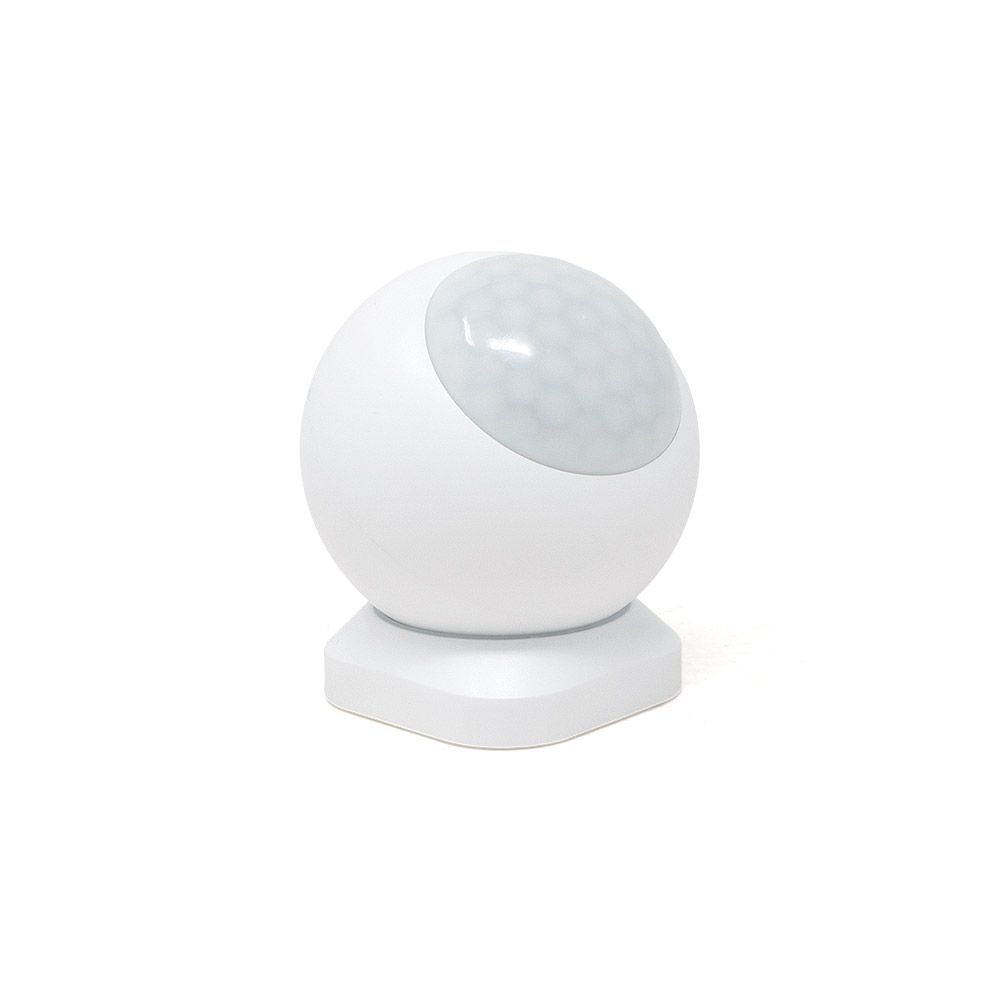

With a diameter of just 49mm this compact ZIGBEE PIR sensor is supplied with a magnetic base that allows it to be easily adjusted to suit the installation. the sensor enables you to turn on or off your lighting products when a person enters the area of detection and as the sensor is a PIR movement detector it can also warn of an intruder as part of a ZIGBEE security system. Setting up the sensor is done using the free Mi-Light Application through the appropriate gateway (purchased separately).

The sensor is battery powered and takes 1 x 3v CR123A type battery (not included). Twisting the case gives access to the battery compartment and also the pairing button. Insert the battery and then follow the instructions to pair the sensor to your smartphone application through the MI-Light gateway (purchased separately).

The sensor uses the ZIGBEE 3.0 protocol and will detect motion to switch on or off your ZIGBEE lighting products wirelessly. The sensor detection range is up to 7m with a 120deg angle of detection. Once fixed into place the sensor can be easily adjusted without tools to make the most of the detection area.

For further information about this and our other exciting range of lighting and control products please contact our technical sales team by phone, email or live chat and we will be pleased to advise you enabling you to get the best out of our products.

Technical Specification
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    PIR Sensor
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    Battery Powered
Connectivity:    ZIGBEE protocols
Size:    Ø49mm (Excluding Base)
Ø49mm x 56mm Height (Including Base)
Beam Angle:    120 degree
Dimmable:    No
Wireless Range:    Up to 30 metres
Voltage Type:    Not Applicable
Detection Angle:    120°
Detection Distance:    7m
Transmitting Power:    6dBm
Standby Power Consumption:    12uA
Operation Frequency:    Zigbee 802.15.4
Operating Temp:    -10 to 40ºC
