Featuring high-quality RGB + CCT LEDs, this low-voltage LED batten from M-Light has many professional features including colour synchronisation, which forms a MESH network with other battens in the chain, ensuring the colours all stay synchronised together wirelessly. Each batten passes the control signal to the next batten so as long as each product is within 30m of the previous batten, there is no limit to the number of units you can synchronise.

The battens are designed to be controlled wirelessly with the Mi-Light 2.4GHz RF Handsets or Wall panels and they can also be controlled using DMX when paired to the FUTD01 DMX to RF wireless transmitter. They can also be controlled from a smartphone application or with voice control when connected to a Mi-Light Gateway. With over 16 million colour combinations available plus colour temperature adjustment of white from Cool white (6500K) to Warm White (2700K), you can select any colour or colour combination you require and by mixing white, with RGB you can also adjust the colour saturation.

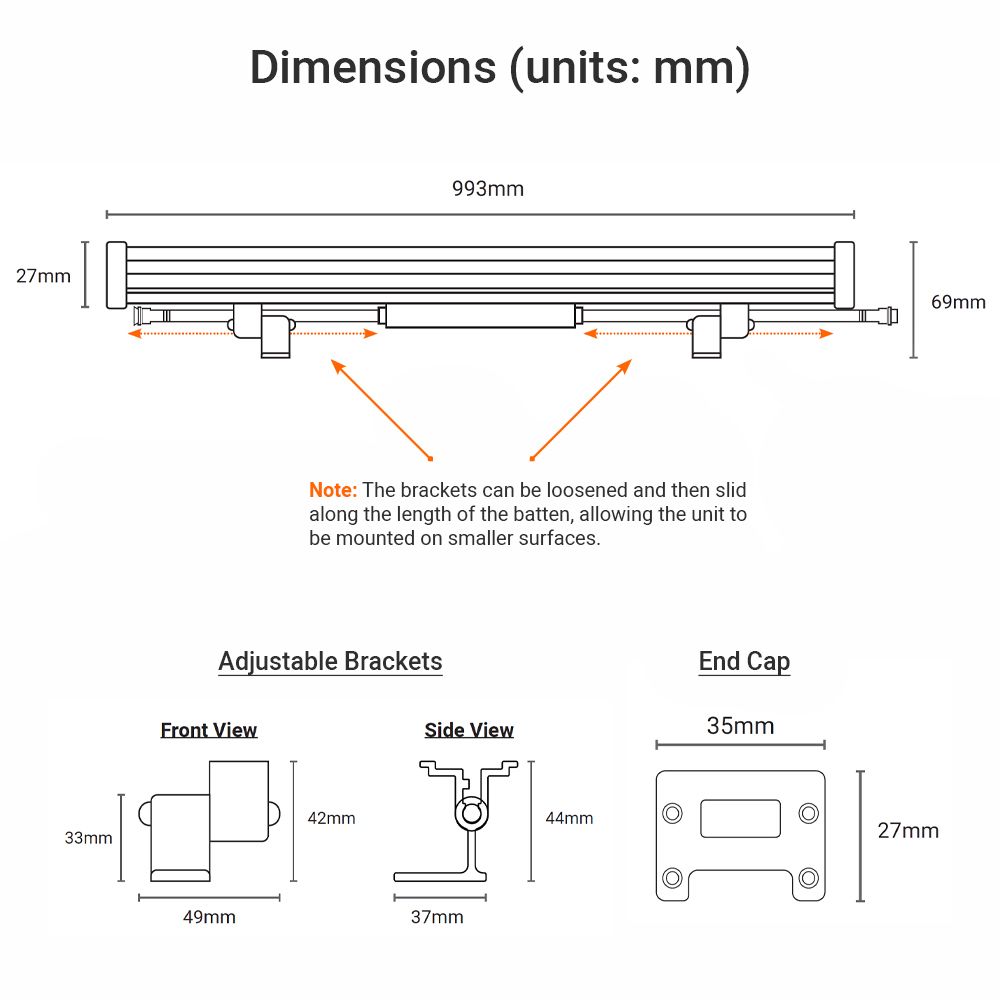

The battens are fitted with adjustable brackets so they can be angled as required at 180° forward and back. The brackets can also be loosened and then slid along the length of the batten, allowing the Wall Washer to be mounted on smaller surfaces.

It is possible to link together up to eight battens together using the 24v power in and out connections. The male connector cable is 560mm in length and the female connector cable is 400mm in length.

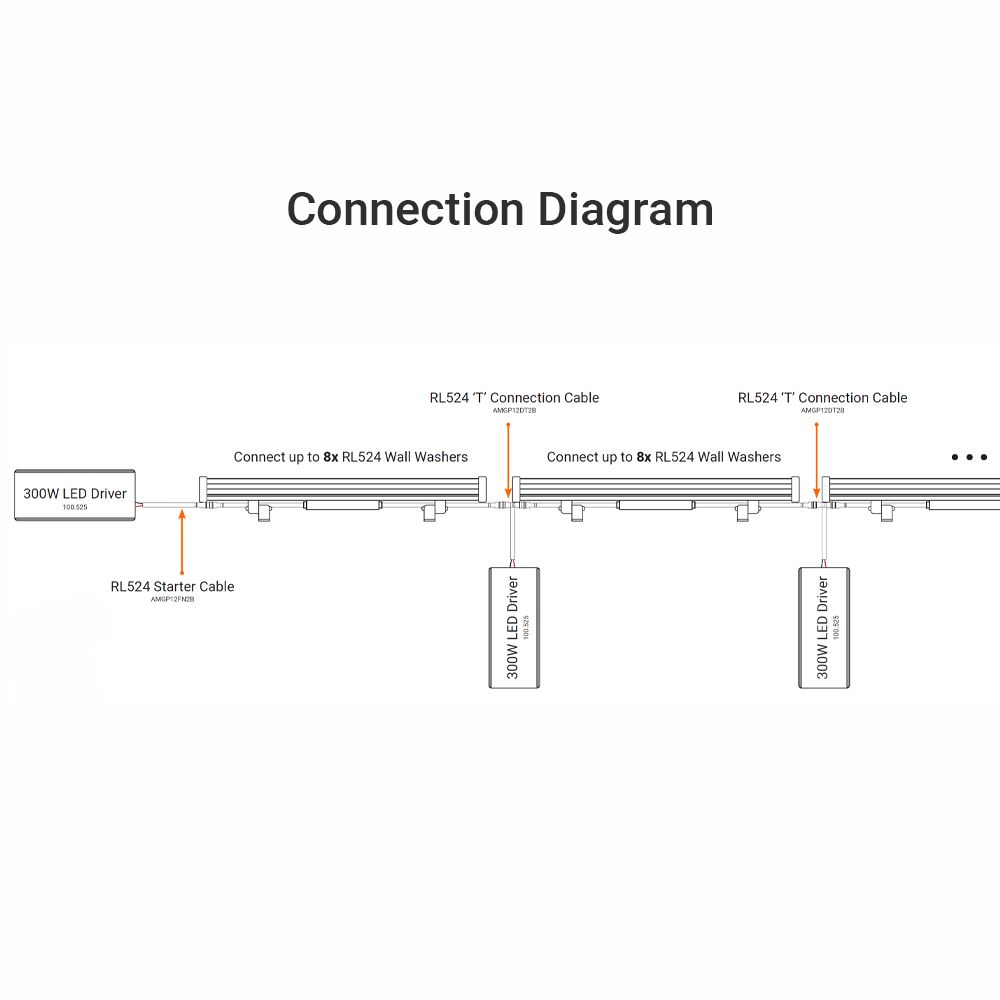

A further 8x RL524 Wall Washer lights can be added to the chain using our 'T Connection' Cable. Following the connection diagram guidelines on the provided datasheet, connect a suitable 24V LED Driver to the 'T Connection' cable and then repeat the process of linking the Wall Washers using the Male & Female power in and out connections.

For more information and any technical help please contact our technical sales team by phone, email, or live chat on our website.

Note: When linking the battens together please ensure that you have a suitable driver capable of powering the number of battens you want to link together and that the linking cables are capable of handling the current load.

Technical Specification
Product Packed:    Gift box
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Wall Washer
Colour:    RGB / CW & WW
IP Rating:    IP66 Splashproof
Metres:    1 MTR
Colour Temperature:    2700 - 6500K
Guarantee Period:    5 Years
Wattage:    24W
Input Voltage:    24V DC
Connectivity:    RF
Illumination Distance:    >15m
Size:    993mm X 35mm X 69mm
Beam Angle:    24 degree
CRI Rating (greater than):    CRI >80
Dimmable:    Yes
LED Quantity:    54 LEDs
Average LED life Hrs:    50,000
Wireless Range:    Up to 30 metres
Unit Weight:    1.21KG appx
Transmitting Power:    6dBm
Operation Frequency:    2.4GHz
Operating Temp:    -20~45°C
Luminous Flux:    1600LM
Light Efficiency:    70LM/W
Smart Synchronisation:    Version 2.0
