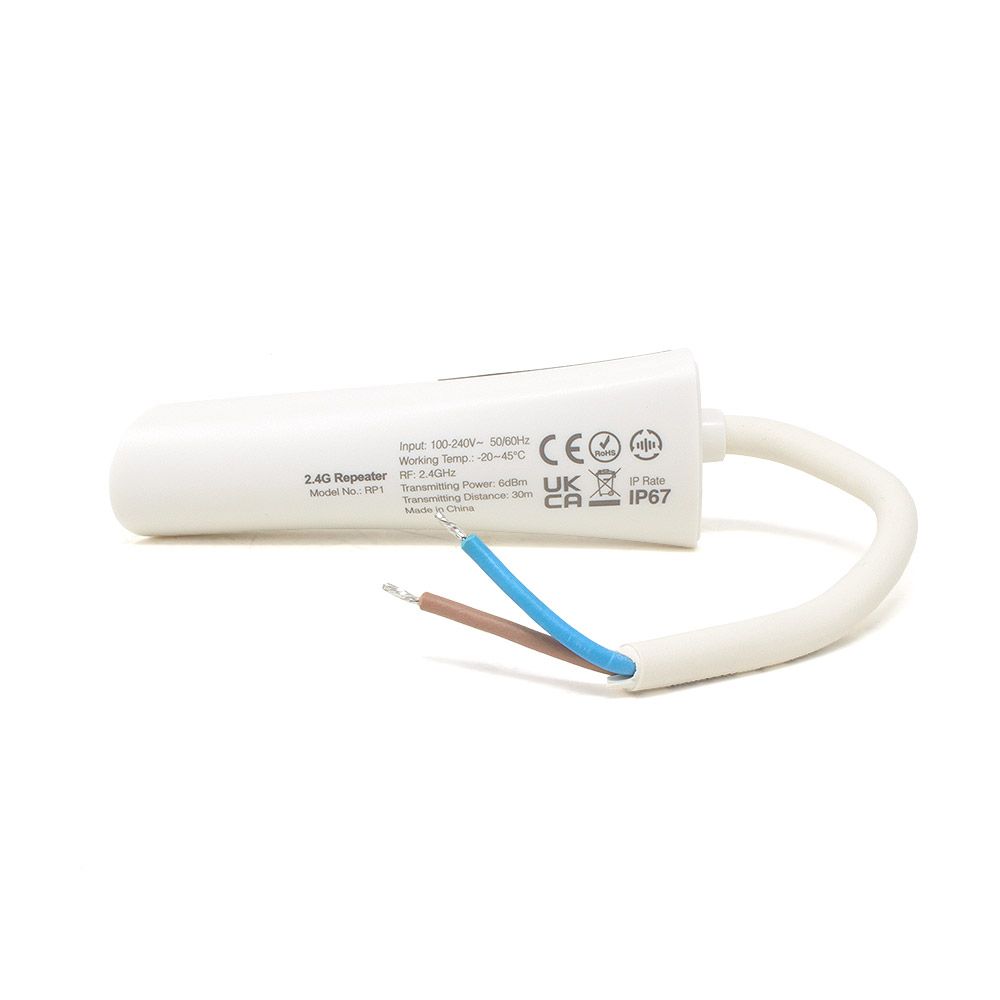

SBL-RP1 MiBoxer 2.4GHz Signal Repeater
The Mi-Light PR1 is a very effective 2.4GHz signal range extender that is designed to work with the Mi-Light range of products that feature signal synchronisation. By passing the signal from device to device, the 2.4GHz range of Mi-Light products effectively forms a MESH network of devices that all work together. For example, this allows a group of floodlights to be controlled together irrespective of distance, providing each floodlight is within 30m of the previous unit.
Sometimes this is not possible due to physical obstructions creating "dead spots" that can reduce the range of the transmitter, and also situations where there is no need for another floodlight or device to be placed between each unit.
By installing the RP1 signal repeater this can be overcome. Simply connect the RP1 to a 100V-240V mains supply (ensuring that any connections are made in an IP67 rated connector) and pair the signal repeater to the same MESH network that the devices are connected to overcome this issue.
For more information on this product and any of our Mi-Light range, please contact our technical sales team by phone, email or use our online live chat.
Technical Specification
Product Packed: Gift box
Manufacturer: Mi-Light / MiBoxer
Product Type: Receiver
IP Rating: IP67 Waterproof
Guarantee Period: 5 Years
Input Voltage: 100V - 240V AC
Size: 100mm x 35mm Dia
Dimmable: No
Wireless Range: Up to 30 metres
Transmitting Power: 6dBm
Operation Frequency: 2.4GHz
Operating Temp: -20~60°C
Smart Synchronisation: Version 1.0
