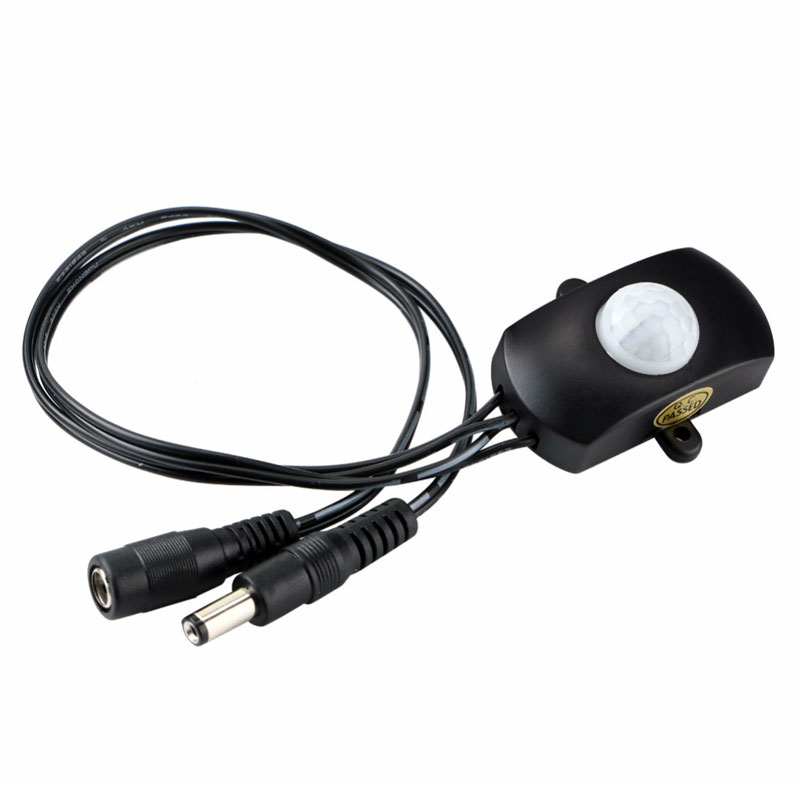

    Mini DIY DC 5~24V 5A PIR Sensor Switch Mini PIR Infrared IR Motion Sensor Detector Switch Module for LED Strip Light

      (6 Reviews) | Write a review
    SKU: LPIR-5A-2023
    Discontinued
    Starting at: $12.95  $9.95-23%
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Mon,Nov,04 and Sun,Nov,10. order with 2days,9hrs and 31 min.

    Features
    100% brand new and high quality.
    Small, lightweight, easy to install and operate, plug and play.
    Automatic ventilation exhaust fan and other electrical automatic control and other functions.
    Delay shut down automatically when you enter into the induction range(5-8M), and it is with 15s delay time of switch on/off.
    Suitable for automatic lighting corridors, corridor, bathrooms, basements, warehouses, garages and other places.
    Temperature compensation: temperature compensation chip, reducing the impact sensing distance by the temperature.


    Specification:
    Material: PVC
    Item color: white
    Sensor size: 50*40*22.5mm
    Working voltage: 5V-24V
    Load power: 80W
    Output current: 5A
    Working temp: -20 ° -+38 °
    Static current: < 50μA
    Connector DC head size: 5.5x2.1mm
    Time delay: 15s(adjustable)
    Output mode: sensor output
    Induction angle: 140 ° cone angle
    Induction distance: 5-8M
    (Note: Please allow about 1mm error due to manual measurement, and slight color difference caused by light and screen.)
