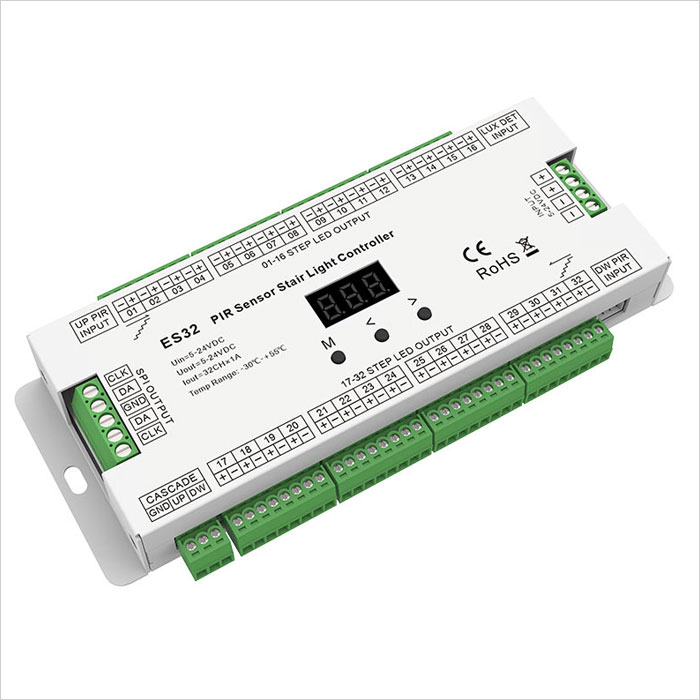

PIR Motion Sensor Intelligent Stairs Lighting Controller - 5-24 VDC
With this LED Motion sensor stair lighting controller, you can easy DIY your own intelligent stair lighting, when you go upstairs, it will light up the lights from downstairs to upstairs, and if you are going downstairs, it will light up the lights one by one from up to down! Run speed is adjustable, and delay time, you can easy make suitable smart-stair-way to your self!
Features:
PIR sensor stair light controller with daylight sensor.
32 channels constant voltage output drive low voltage LED strip, Max. 1A current per channel.
2 groups SPI(TTL) signal output, drive 27 kinds IC digital RGB LED strip, IC type and R/G/B order can be set.
Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903,
UCS2909, UCS2912, WS2811,WS2812, TM1829, TM1914A, GW6205, GS8206, LPD6803, LPD1101,
D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822.
Easy operation with OLED display and 3 buttons.
four work light mode selectable.
Two stair light controller can cascade.
Built-in multiple color mode, speed 1-8 grade adjustable.
Push switch can also be as induction signal input.
With fast self-testing function.
Warranties & Certifications
Application & Use
Home Lighting,Stair Lighting
PIR Motion Sensor Intelligent Stairs Lighting Controller
TECHNICAL DETAILS
Input voltage | 5-24VDC |
Output voltage | 32 x (5-24)VDC |
Output current | 32CH,1A/CH |
Output power | 32 x (5-24)W |
Output type | Constant voltage + SPI(TTL) |
IP rating | IP20 |
Warranty | 5 years |
Protection | Revese Polarity |
Operating Temperature | -20~+45 °C (-4~+113 °F) |
Certification | CE,EMC,LVD |
