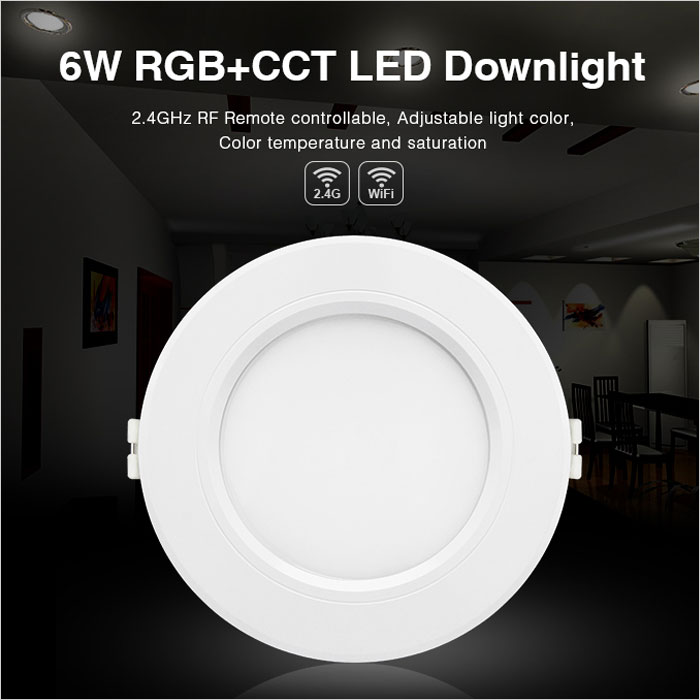

6W WiFi Smart LED Recessed Light Fixture - RGB+CCT LED Downlight - Smartphone Compatible - RF Remote Optional

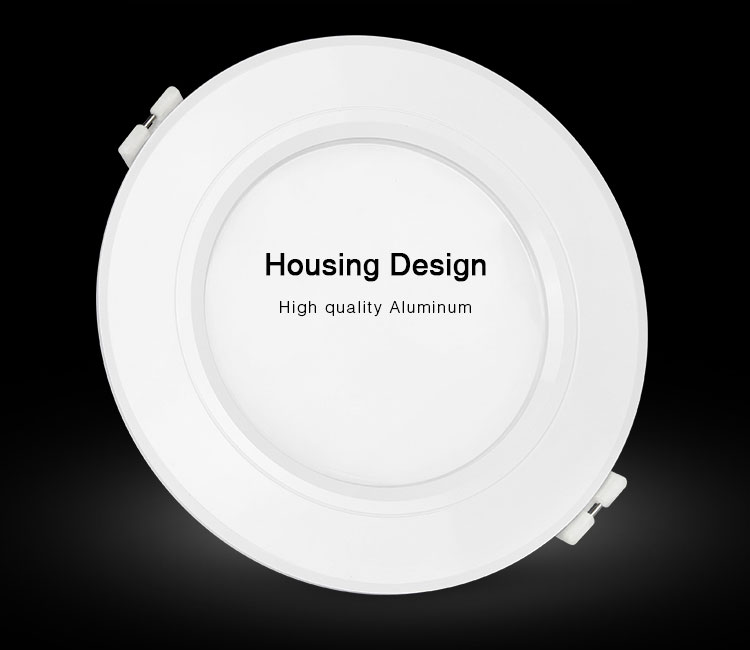

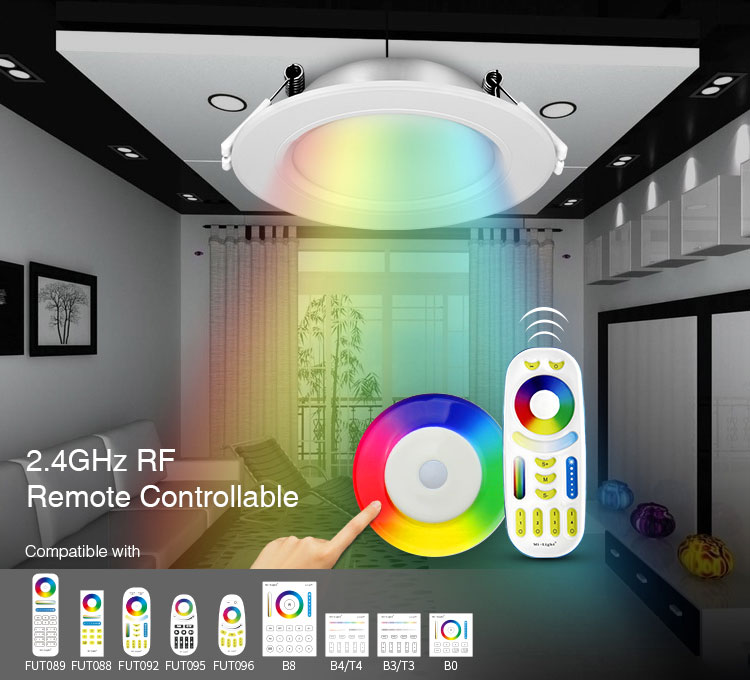

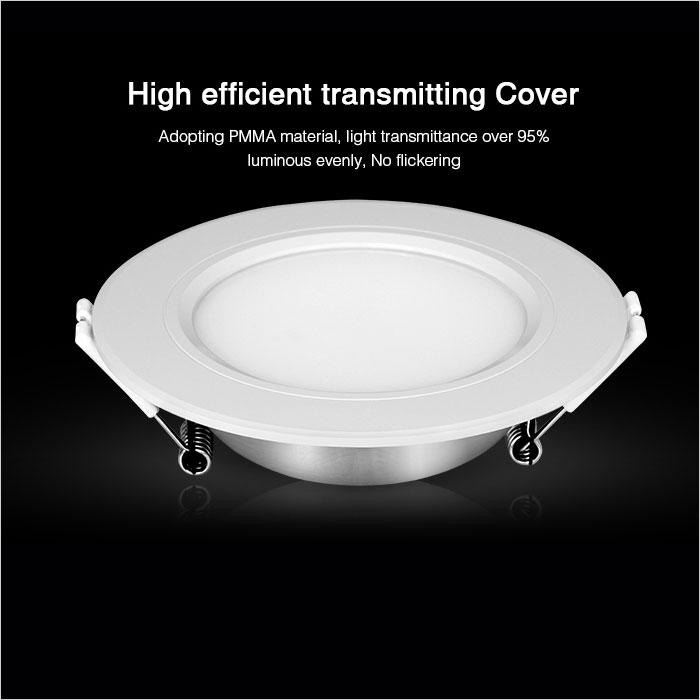

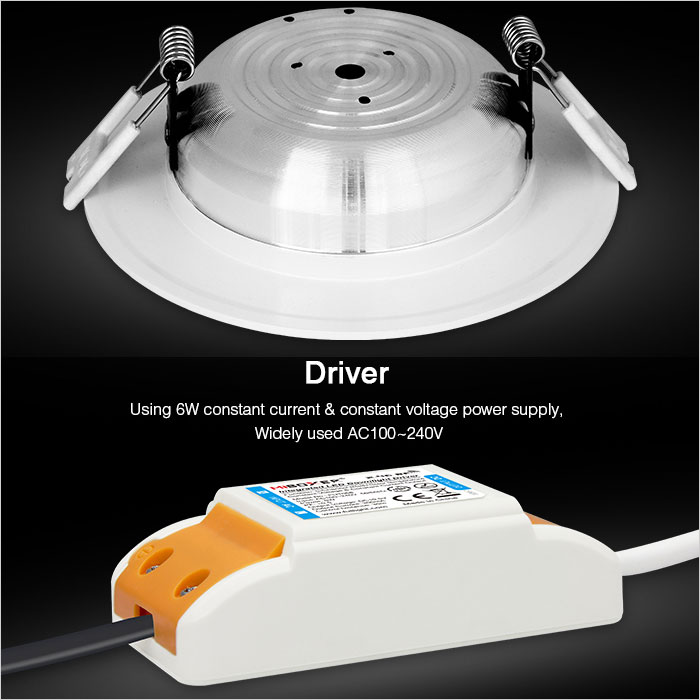

This 6W 600 Lumens RBG+CCT LED Ceiling Spotlight produces a wide beam of color-changing and white light. Use with Miboxer app and a WiFi hub, or an RF touch-color remote (sold separately). Built to last with die-cast aluminum housing and a tempered glass lens, this Recessed Light is perfect for living room lighting, basement lighting, office lighting, kitchen lighting, bathroom lighting, and other downlighting applications. A constant-current driver is included,and the LED light operates within a wide 86-265 VAC range.
Dimensional Drawings:
Warranties & Certifications
Application & Use

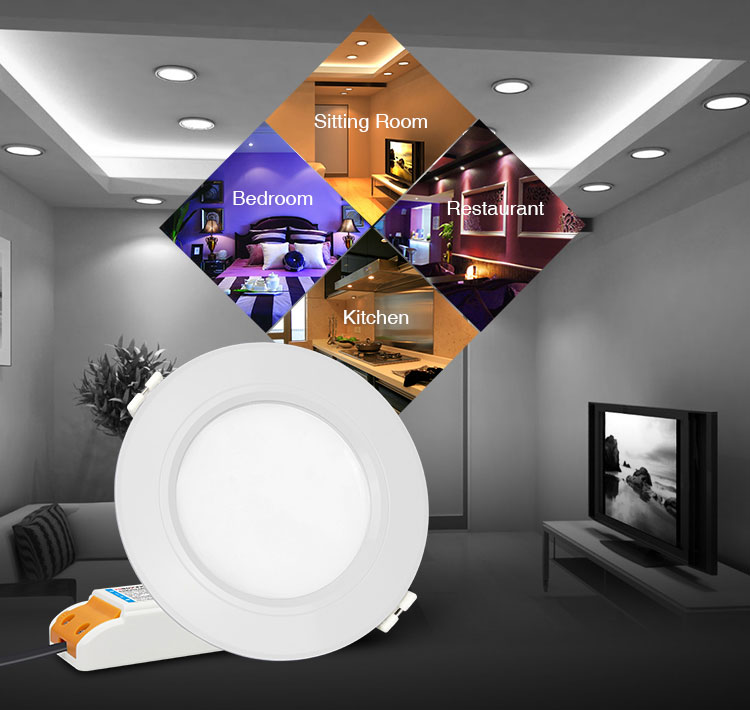

LED Bathroom Lighting,Closet Lighting,Office,LED Kitchen Lighting,Living Room LED Lighting,Pot Lights.
TECHNICAL DETAILS
Beam Angle | 120° |
Diameter | 118mm |
Control Distance | 30m |
Dimmable | Yes |
LED Color | RGB+CCT |
Color Temperature | 2700K~6500K |
LED Lifetime | 50000 Hours |
Lens Type | Glass |
Material | Aluminum |
Operating Temperature | -20~+60 °C (-4~+140 °F) |
Special Features | Custom Colors, Remote Control |
Wattage | 6 Watts |
HoIe Size | ø90~95mm |
Input Voltage | AC100~240V 50/60Hz |
Luminous Flux | 600LM |
CRI | >80 |
PF | 0.5 |
Standards And Certifications | CE, FCC, RoHS Compliant |
**All specifications are subject to change without notice.
Instructions:
- Please open the hole on the ceiling according of Diagram 1. ( For the size of the hole, please refer to the parameters of the corresponding model. )
- Connect the driver properly according to the wire connection Diagram 2. And then put the driver andwire into the ceiling from the hole.
- Push in the two spring elements, make sure that they are deployed and anchored on the back ofthe ceiling Diagram 3 and 4.
