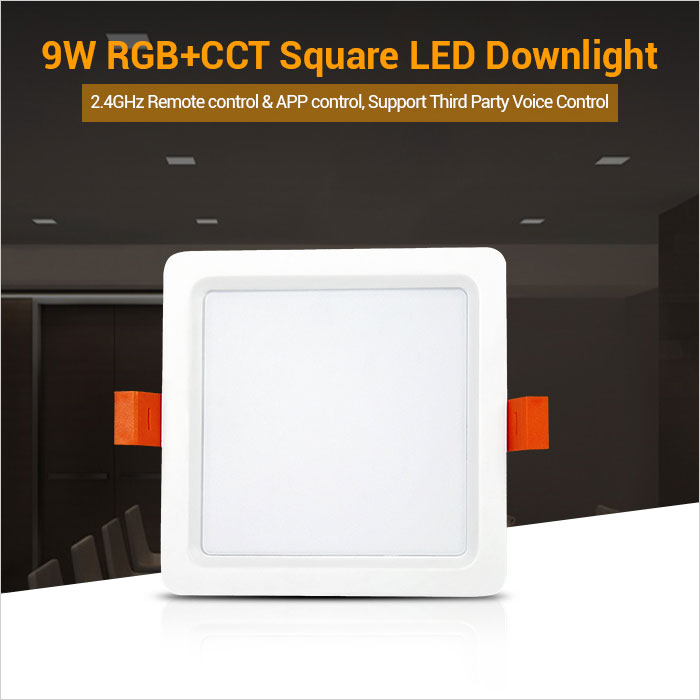

    9W WiFi Smart LED Recessed Light Fixture - Square RGB+CCT LED Downlight - Smartphone Compatible - RF Remote Optional

      (3 Reviews) | Write a review
    SKU: DW-RGBCCTxS9W-AC

    Please Choose:



    Discontinued
    Starting at: $69.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Nov,02 and Fri,Nov,08. order with 2days,9hrs and 31 min.

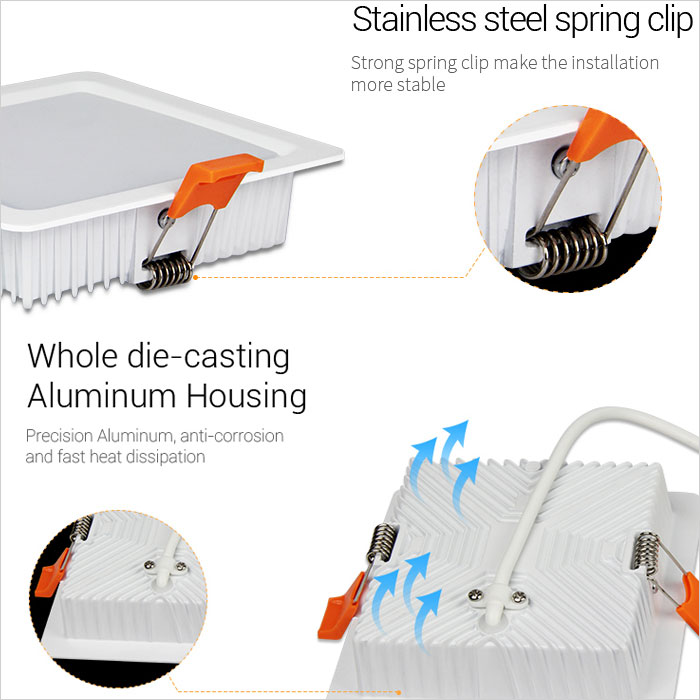

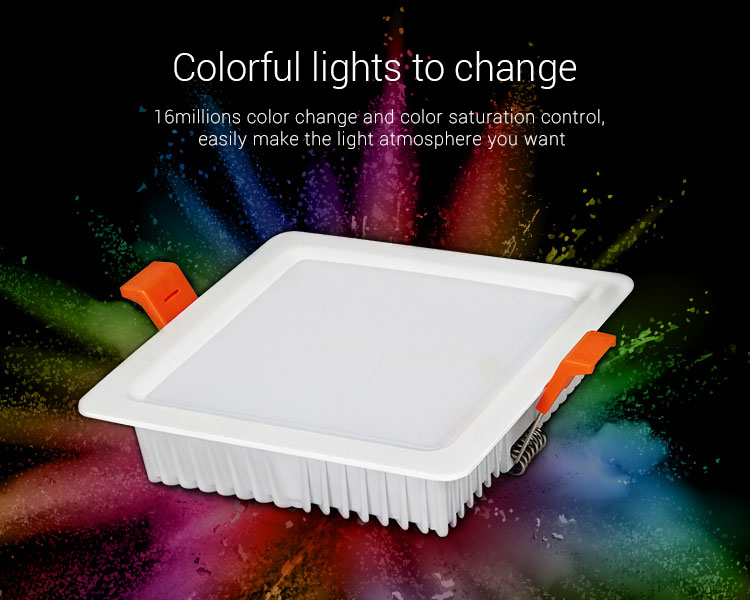

    This Square 9W 720 Lumens RBG+CCT LED Ceiling Spotlight produces a wide beam of color-changing and white light. Use with Miboxer app and a WiFi hub, or an RF touch-color remote (sold separately). Built to last with die-cast aluminum housing and a tempered glass lens, this Recessed Light is perfect for living room lighting, basement lighting, office lighting, kitchen lighting, bathroom lighting, and other downlighting applications. A constant-current driver is included,and the LED light operates within a wide 86-265 VAC range.

    Dimensional Drawings:

    Warranties & Certifications

    Application & Use
    LED Bathroom Lighting,Closet Lighting,Office,LED Kitchen Lighting,Living Room LED Lighting,Pot Lights.


    TECHNICAL DETAILS

    Beam Angle 120°
    Diameter 120mm
    Control Distance 30m
    Dimmable Yes
    LED Color RGB+CCT
    Color Temperature 2700K~6500K
    LED Lifetime 50000 Hours
    Lens Type Glass
    Material Aluminum
    Operating Temperature -20~+60 °C (-4~+140 °F)
    Special Features Custom Colors, Remote Control
    Wattage 9 Watts
    HoIe Size 105*105mm
    Input Voltage AC100~240V 50/60Hz
    Luminous Flux 720LM
    CRI >80
    PF 0.5
    Standards And Certifications CE, FCC, RoHS Compliant

    **All specifications are subject to change without notice.

    Instructions:

    1. Please open the hole on the ceiling according of Diagram 1. ( For the size of the hole, please refer to the parameters of the corresponding model. )
    2. Connect the driver properly according to the wire connection Diagram 2. And then put the driver andwire into the ceiling from the hole.
    3. Push in the two spring elements, make sure that they are deployed and anchored on the back ofthe ceiling Diagram 3 and 4.
