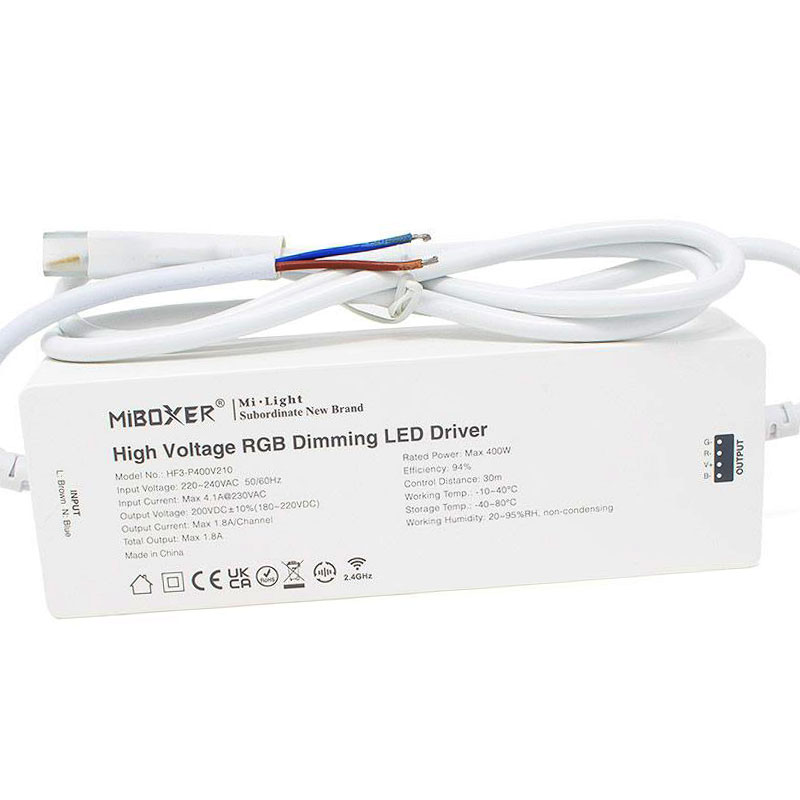

SBL-HF3P400V210 MiBoxer 2.4GHz High Voltage RGB Dimming LED Driver
This Wireless Three Channel RF Driver from Mi-Boxer is compatible with 2.4GHz RF controllers and will enable you to control your mains powered RGB colour changing LED lighting products offering millions of colour combinations. The maximum load of the three channels on this unit is 1.9A (400W). The driver features auto transmitting & synchronising functions so when multiple drivers are paired to the same zone on the controller, providing they are all within 30m of each other and one unit is within 30m of the controller, all the receivers in the group will synchronise your lighting together with no interconnecting control cables. It is also possible to select one of two Dynamic Modes when running the programs from the controller, please refer to the data sheet for detailed on how to select the the two dynamic modes using the controller.
In addition to being able to pair with the compatible Mi-Light controllers, the receivers can also be paired to a smartphone application and they also support third party voice control products such as smart speakers (Additional 2.4GHz hub required for these features).
Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the on-line chat.
Feature
- RF 2.4GHz LED Dimming Driver
- For RGB LEDs
- 30m signal transmiting and synchronization
Technical Specification
Product Type: Controller / Receiver
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 100v - 240v AC
Output Voltage: 12v / 24v DC
Connectivity: RF
Size: L119x W37.5 x H22mm
Dimmable: No
Wireless Range: Up to 30 metres
Transmitting Power: 6dBm
Operation Frequency: 2.4GHz
Operating Temp: -20~60°C
Total Output: Max12A
Output Max: 12A/Channel
Smart Synchronisation: Version 2.0
