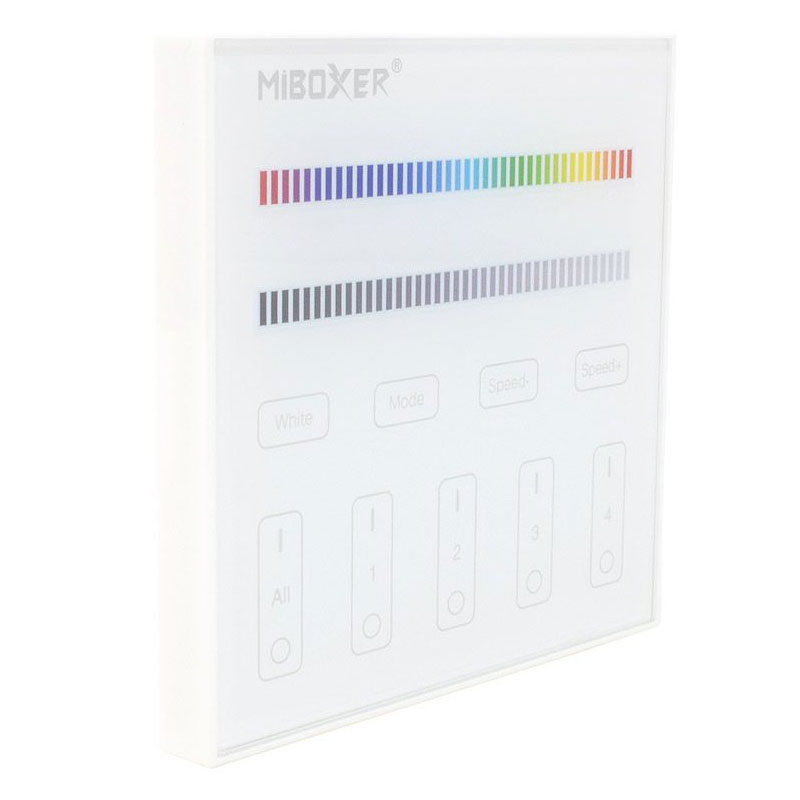

With the capacity to control up to four zones of RGB Colour changing LED lighting together or individually, this wall panel features a toughened glass front with a touch sensitive dimming slider control, master power On/Off, individual power On/Off buttons for each zone, a colour adjustment slider control and an instant "White" button (which uses RGB to make white).  All the controls use an IC high precision touch sensitive system for a more stable and sensitive operation offering smooth, accurate dimming and millions of colour combinations together with a number of dynamic built in programs that will allow you to fade or pulse through he colours creating an amazing effect to suit your mood.
This feature rich wall panel can control up to four zones of DMX512 lighting or by pairing the wall panel to a 2.4GHz receiver or a 2.4GHz compatible lighting product as it will also work as an RF controller.  When using the RF system, an unlimited number of receivers / lights can be paired to each zone on the wall panel, it is possible to control multiple products in each of the four zones.  Simply pair each product to your chosen zone and to operate individually, switch on the zone with the appropriate button and select the required brightness, colour or program required using the touch slider controls.  A master On/Off button will switch all the zones On/Off together.   When using the wall panel as a DMX wall panel simply connect a DMX cable from the wall panel to your DMX decoders or DMX compatible lighting products and control the using standard DMX512 protocols.
In addition to the DMX512 protocols and the RF transmitter built into the wall panel it is also possible to pair a 2.4GHz handset or 2.4GHz wall panel to the X3 wall panel to control it remotely.  This effectively enables you to control your DMX lighting from the DMX wall panel or via a 2.4GHz handset paired to the wall panel.  Please refer to the detailed instructions on the wall panel Date Sheet for more information on how to use this multi-functional wall panel.
The wall panel is powered from a 100v - 240v 50/60 Hz mains supply and should be connected to your DMX lighting using a three core screened DMX cable.

Compatible Mi-Light LED lighting sold separately.  For product assistance please contact us by telephone, email or via the on-line chat.

Feature

1. Brightness & Colour Slider
2. Built-in programs
3. Optional sound on button press
4. Quick and easy to pair with receivers
5. 5 Year Guarantee

Technical Specification
Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    100v - 240v AC
Connectivity:    DMX 512 protocols
Size:    L86 x W26 x H86mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Transmitting Power:    6dBm
Operation Frequency:    DMX512 + 2.4G Wireless
Operating Temp:    -20~60°C
Total Output:    DMX512 + 2.4G Wireless
