Using Bluetooth technology, this RGB LED controller lets you operate RGB LED strip lights with your smartphone (IOS 6 or Android 4.0 and above). Choose from numerous dynamic color-changing modes with adjustable speed and brightness levels or from static color modes. Additional features include a color-selection wheel, 6 timer settings, music control, mode/color-change via phone shake, and photo color match (matches specific colors in photos). This indoor LED controller has a maximum load capacity of 10 amps per channel and is compatible with LED light strips that operate within a 5-24 VDC range. Maximum load is 400 watts at 12 volts or 800 watts at 24 volts. The controller works within 50' of your phone.

Warranties & Certifications

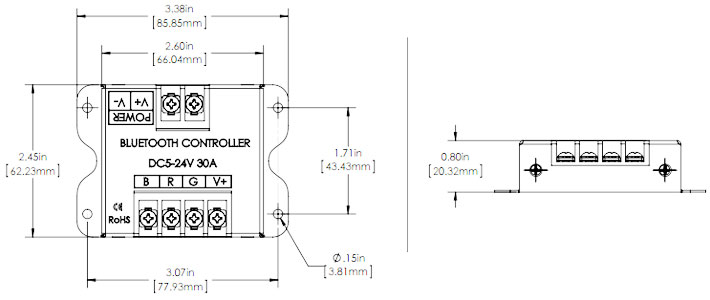

Dimensional Drawings

Application & Use
Home Lighting, Home Accent Lighting, Remote Controlled Light, Smartphone Accessory Light.

TECHNICAL DETAILS
Amps per Channel:  10 Amps/CH
Maximum Output Current:  30 A (10 A per channel)
Connection Type:  Screw Terminals
Maximum Remote Range:  65 ft (20 m)
Dimmable:  Yes
Material:  Steel
Operating Temperature:  -20~+45 °C (-4~+113 °F)
Product Weight:  0.25 lb
Remote:   Bluetooth:
Special Features:  Bluetooth, Custom Colors
Standards And Certifications:    CE, RoHS Compliant
Volts:    5~24 VDC
Package Weight:  4.8oz (0.14kg)
Package Dimensions:  3.5" (9cm) x 2.75" (7cm) x 1.25" (3cm)
All specifications are subject to change without notice.
