Three Color Knob RGB LED Dimmer Controller - 9A

Three Color Knob RGB LED Dimmer Controller - 9A

(8 Reviews) | Write a review

SKU: LDK-3RGB-9A

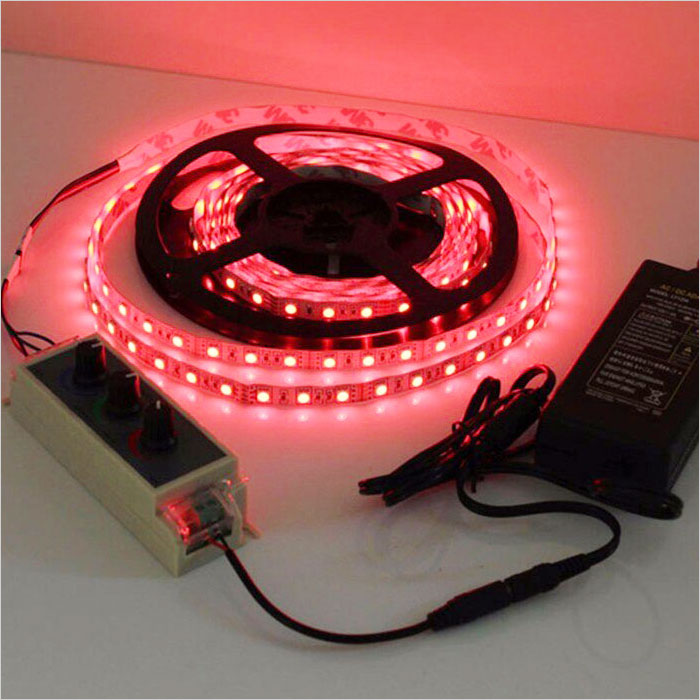

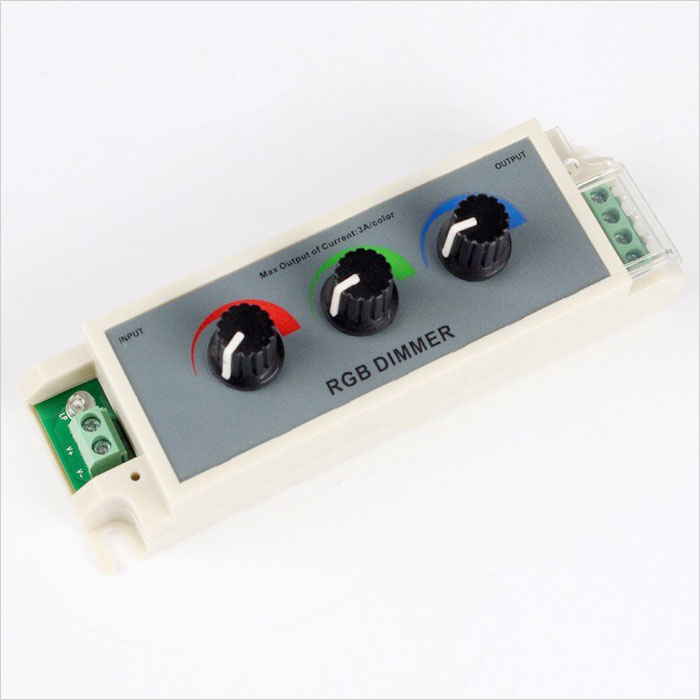

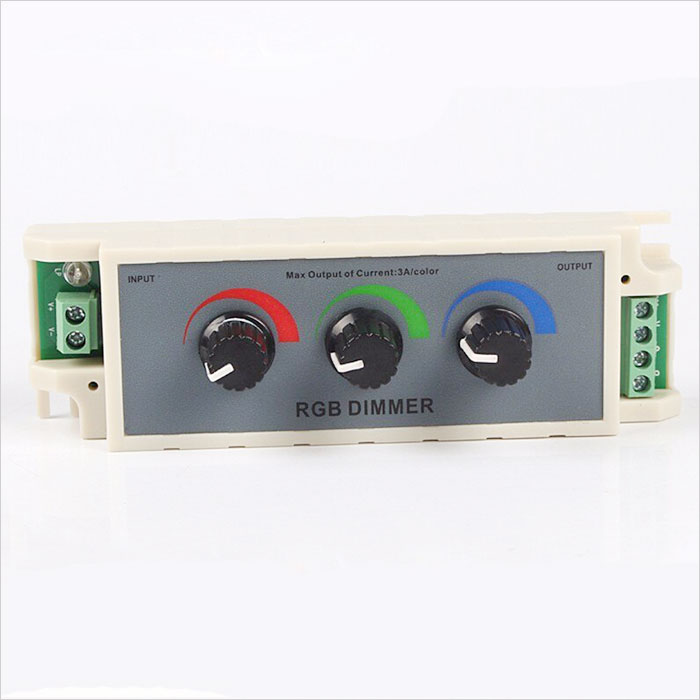

Universal Red/Green/Blue (RGB) LED dimmer can dim any 12VDC RGB LED products from 0 to 100% using Pulse Width Modulation (PWM) circuits. Knob controls for full range custom color creation. Maximum load is 3 amps per channel, 9 amps total.

Warranties & Certifications

TECHNICAL DETAILS
Amps: 9.00 Amps
Amps per Channel: 3 Amps/CH
Channels: 3 Channels

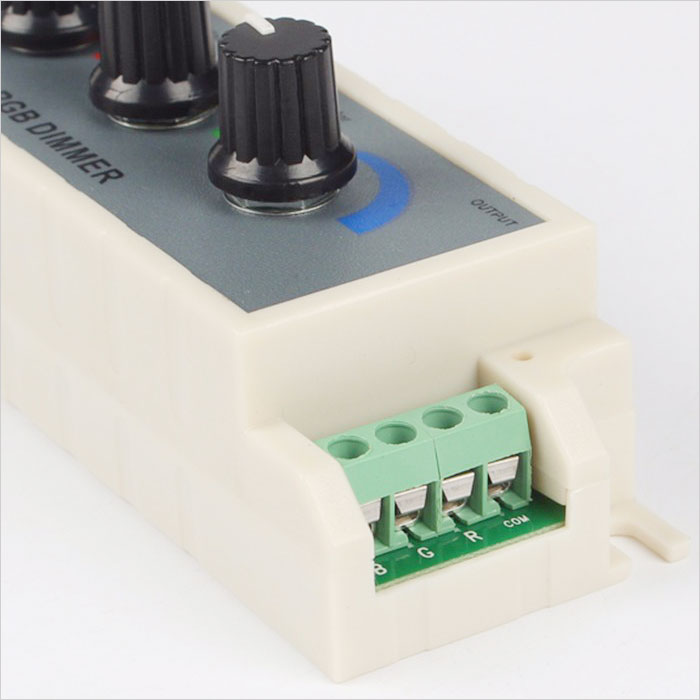

Connection Type: Screw Terminals
Remote: In-line Wired
Body color: Grey
Material: ABS
Special Features: Color Wheel, Custom Colors, Knob Control
Standards And Certifications: RoHS Compliant
Operate Voltage: DC12-24V
Output Power: 108W(12V);216W(24V)
Package Weight: 4.2oz (0.12kg)
Package Dimensions: 5.39" (14cm) x 2.22" (6cm) x 2.22" (6cm)
All specifications are subject to change without notice.
