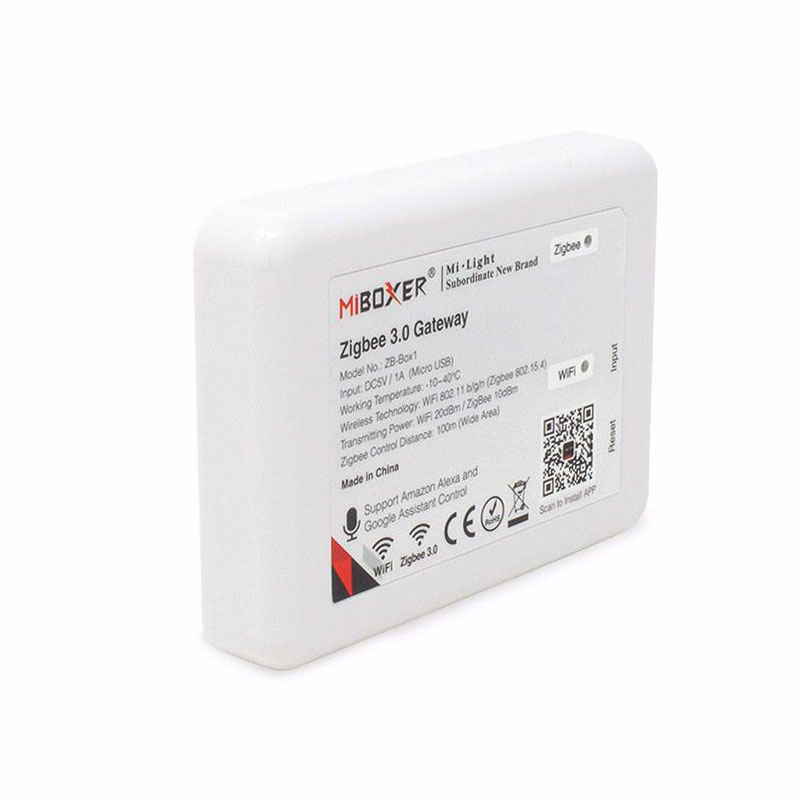

ZBBOX1 MiBoxer ZIGBEE 3.0 Gateway
This compact ZIGBEE 3.00 Gateway (Hub) from Mi-Boxer connects to your Wi-Fi router wirelessly and acts as a bridge between your smartphone or smart speaker so that you can control your lighting devices from the free "Mi-Boxer Smar" Application on your smartphone or with voice control through your smart speaker.
First place the gateway within range of your Wi-Fi router, connect the included USB cable into the gateway power port and to a USB power socket to provide power to the gateway. Next download the "Mi-Boxer Smart" application from the Apple App Store or from Google Play onto your smartphone and follow the instructions to connect your gateway to your Wi-Fi router.
Once you have registered your account through the application you can start to add your ZIGBEE lighting and control devices into the application giving them names and putting the products into virtual rooms on your device. The gateway is compatible with all the Mi-Boxer / Mi-Light ZIGBEE product range and most third-party ZIGBEE products can be controlled from the application by simply adding them to your virtual application. You will then have control over each device locally and will be able to set up ZIGBEE group control and scene automation.
For voice control, follow the instructions on how to pair your Smart Speaker to your device, the gateway works with Amazon Alexa and Google Assistant.
Note: There is a QR code on the data sheet supplied with your gateway that will take you to the app store to download the "Mi-Boxer Smart" application and also a QR code that will take you to a helpful installation video.
Feature
- ZIGBEE 3.0 Gateway
- Compatible with Mi-Light / MiBoxer handsets and wall panels
- Smartphone Compatible
- 30m signal transmitting and synchronization between receivers
- Quick and easy to pair with handsets and wall panels
Technical Specification
Manufacturer: Mi-Light / MiBoxer
Product Type: Home Automation
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: 5v DC
Connectivity: ZIGBEE protocols
Size: L90.5mm x W66mm x H15mm
Dimmable: No
Wireless Range: Up to 30 metres
Transmitting Power: WiFi 20dBm / ZIGBEE: 10dBm
Operation Frequency: 2.4GHz
Operating Temp: -20~60°C
Total Output: Max1A
Output Max: 1A/Channel
