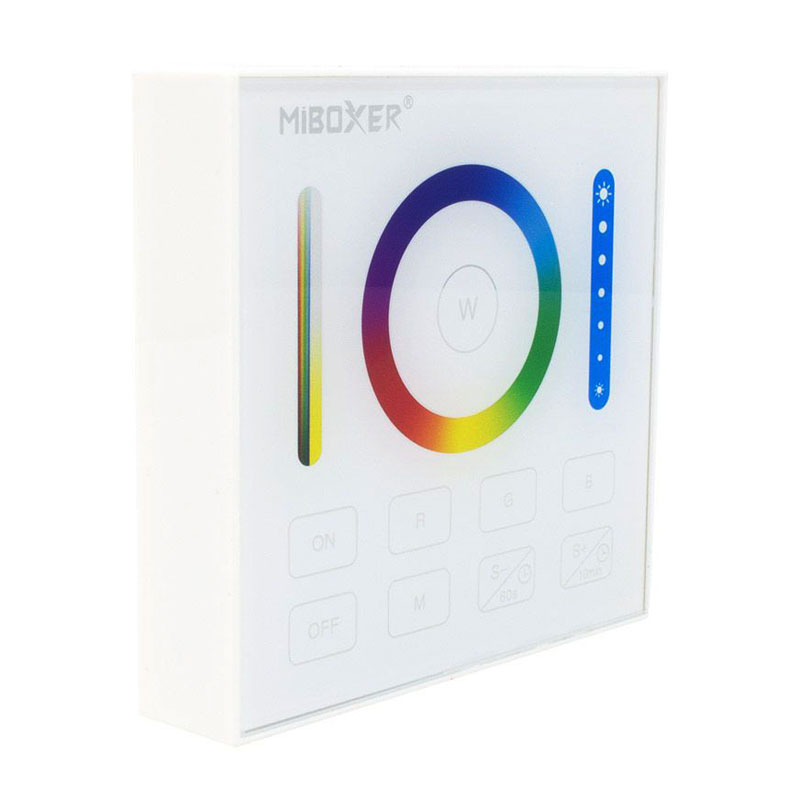

This RGBW+CCT wall panel from Mi-Light enables full control over your compatible Mi-Light Luminaires. The handset requires 2 x AAA batteries, we suggest using high quality, new batteries to get the best out of your wall panel. All the controls use an IC high precision touch sensitive system for a more stable and sensitive operation.
The various parameters that can be controlled from the wall panel include instant colour selection using the coloured disc, colour saturation and colour temperature adjustment from warm to cool white using the colour saturation slider and there is a dimming slider control to give smooth, accurate control over the brightness of the LED's. In addition, there are buttons to control each colour individually and various programs can be selected so that you can set your lighting to smoothly fade or pulse through the colours. The program speed can also be adjusted to suit your requirements.
A timer function will delay the switch off of your lighting so that when your luminaires are set to a single colour (static mode) you can select a 60 second or 10 minute delay. This is a very useful function which gives you time to exit a room or area before the lights turn off.
The wall panel can be paired to a single luminair or multiple luminaires as part of a group. When paired to multiple luminaires, providing they are all within 30m of each other and one unit is within 30m of the handset, all the lights in the group will synchronise together wirelessly so no need for interconnecting control cables.

Feature

1. Saturation touch slider
2. Dimming slider
3. Smooth colour selection wheel
4. Lights off timer
5. Optional sound on button press
6. Built in programs
7. Quick and easy to pair with receivers
8. 5 Year Guarantee

Technical Specification

Manufacturer:    Mi-Light / MiBoxer
Product Type:    Controller / Receiver
IP Rating:    IP20 Non-Waterproof
Guarantee Period:    5 Years
Input Voltage:    Battery Powered
Connectivity:    RF
Size:    L86x W86 x H16mm
Dimmable:    No
Wireless Range:    Up to 30 metres
Modulation Method:    GFSK
Transmitting Power:    6dBm
Standby Power Consumption:    20uA
Operation Frequency:    2.4GHz
Battery Type:    2 x AAA Batteries
Operating Temp:    -10 to 40ºC
