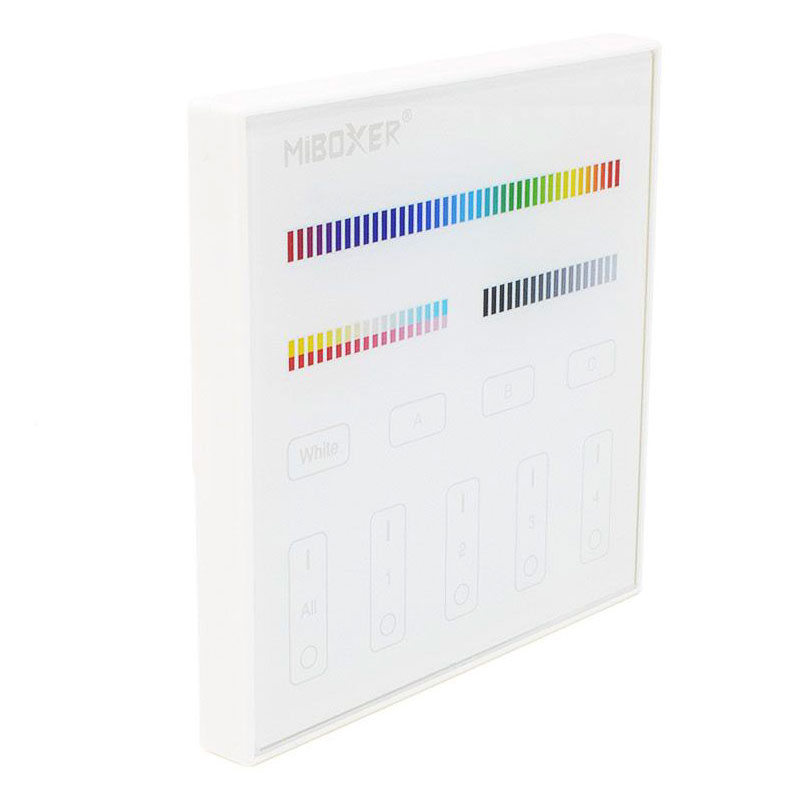

SBL-DP3S MiBoxer DALI 3 in 1 Touch Panel DT8
This stylish DALI DT8 "three in one" wall panel from Mi-Boxer is an ideal product to integrate into your DALI DT8 lighting system using standard DALI DT8 protocols. It will enable you to control up to four zones of either RGB, RGBW or RGB+CCT lighting with three programmable scenes. The wall panel is powered from the DALI BUS so no additional power supplies are required. The signal from the wall panel is sent along the DALI BUS lines to control the lighting that is set to the same DALI address.
The various parameters can be set and adjusted using the function buttons and digital display on the rear of the wall panel. The three control mode settings are RGB dimming control mode using DALI DT8 type XY, RGBW dimming control mode using DALI DT8 type RGBWAF and RGB+CCT dimming control mode using DALI DT8 type RGBWAF. Please set these as required, details of which can be found in the included manual.
When setting up your DALI system why not consider the other DALI products available in the Mi-Boxer range, from wall panels to DALI Dimmers and DALI BUS power supplies, all our DALI products work together seamlessly creating the ideal DALI network.
Feature
- DALI 3 in 1 Panel
- Built-in programs
- Optional sound on button press
- Quick and easy to pair with receivers
- 5 Year Guarantee
Technical Specification
Manufacturer: Mi-Light / MiBoxer
Product Type: Controller / Receiver
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Connectivity: DALI DT8 Protocols
Size :L86 x W86 x H33mm
Dimmable: No
Wireless Range: Up to 30 metres
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: <4mA@16V
Operation Frequency: 2.4GHz
Battery Type: DALI Bus Power Supply IEC62386
Operating Temp: -10 to 40ºC
