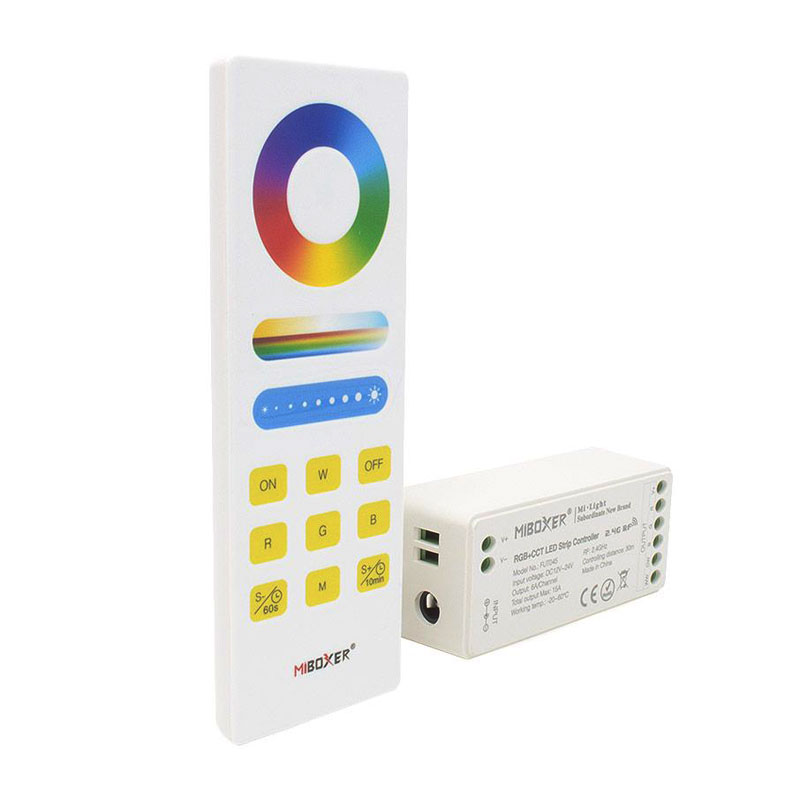

SBL-FUT045A MiBoxer RGB+CCT Smart LED Strip Control Set
This Wireless Five Channel Handset & Receiver Set from Mi-Light enables you to fully control your low voltage RGB+CCT LED lighting products. When paired to multiple receivers, providing they are all within 30m of each other and one unit is within 30m of the handset, all the receivers in the group will synchronise together wirelessly synchronising the colours selected on your handset so no need for interconnecting control cables.
The handset requires 2 x AAA batteries, we suggest using high quality, new batteries to get the best out of your handset. All the controls use an IC high precision touch sensitive system for a more stable and sensitive operation.
The various parameters that can be controlled from the handset include instant colour selection using the coloured disc, white colour temperature adjustment from warm white to cool white together with colour saturation using the colour saturation slider. There is also a dimming slider control to give smooth, accurate control over the brightness of the LED's. In addition, there are buttons to control each colour individually and various programs can be selected so that you can set your lighting to smoothly fade or pulse through the colours. The program speed can also be adjusted to suit your requirements.
The receivers can also be paired to a smart phone application and they also support third party voice control products such as smart speakers (Additional hub required for these features).
A handy timer function will delay the switch off of your lighting so that when your luminaires are set to a single colour (static mode) you can select a 60 second or 10 minute delay. This is a very useful function which gives you time to exit a room or area before the lights turn off.
Compatible Mi-Light LED lighting sold separately. For product assistance please contact us by telephone, email or via the on-line chat.
Feature
- RGB+CCT Control Set
- Pre-Paired Handset and Receiver
- Plug and play installation
- Smooth Colour Selection
- 64 million colours at your fingertips
- Lights Off Timer
- APP Control
- Up to 30m range
- 5 Year Guarantee
Technical Specification
Manufacturer: Mi-Light / MiBoxer
Product Type: Controller / Receiver
IP Rating: IP20 Non-Waterproof
Guarantee Period: 5 Years
Input Voltage: Handset - Battery / Receiver - DC 12 - 24V
Connectivity: RF
Size Handset: L134 x W47 x H16.5mm Receiver: L97 x W37 x H28mm
Dimmable: No
Wireless Range: Up to 30 metres
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: 20uA
Operation Frequency: 2.4GHz
Battery Type: 2 x AAA Batteries
Operating Temp: NA
Smart Synchronisation: Version 1.0
