    SBL-FUT086 MiBoxer 8-Zone 433MHz Remote Controller

      (6 Reviews) | Write a review
    SKU: SBL-FUT086
    Discontinued
    Starting at: $32.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Nov,02 and Fri,Nov,08. order with 2days,9hrs and 31 min.

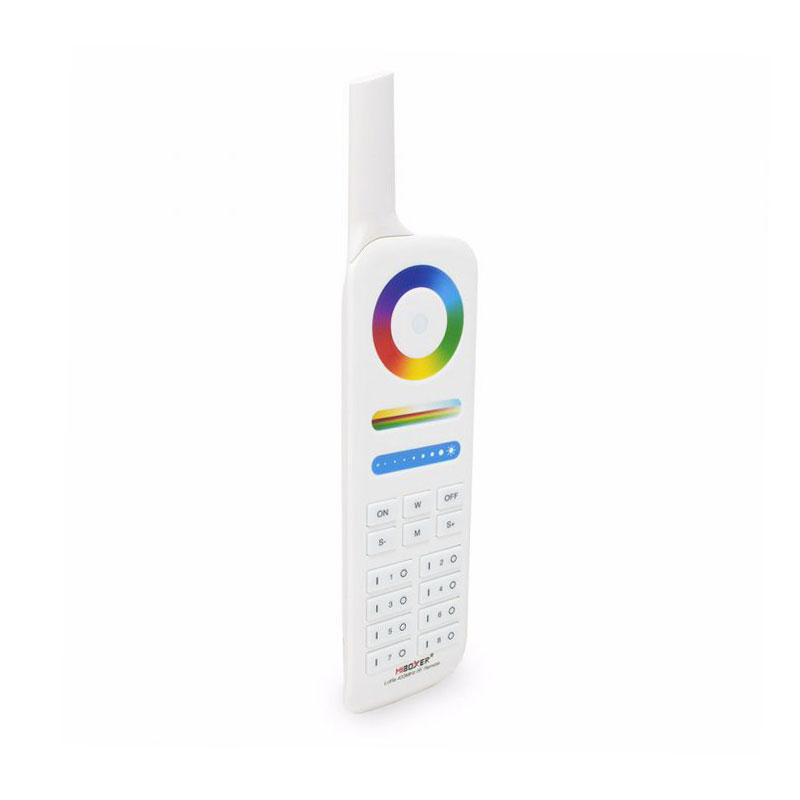

    Supplied with a wall mounting bracket, this Eight Zone RGBW+CCT remote control handset from Mi-Boxer enables full control over your compatible 433MHz Mi-Light Luminaires in up to eight separate zones.  The handset requires 2 x AAA batteries, we suggest using high quality, new batteries to get the best out of your handset.  All the controls use an IC high precision touch sensitive system for a more stable and sensitive operation.
    Each zone can be powered On / Off individually and there is also a master On / Off button to switch all the zones together.
    The various parameters that can be controlled from the handset include instant colour selection using the coloured disc, colour saturation and colour temperature adjustment from warm to cool white using the colour saturation slider and there is a dimming slider control to give smooth, accurate control over the brightness of the LED's.  In addition, there are buttons to control each colour individually and various programs can be selected so that you can set your lighting to smoothly fade or pulse through the colours.  The program speed can also be adjusted to suit your requirements.
    Compatible Mi-Boxer LED lighting sold separately. For product assistance please contact us by telephone, email or via the on-line chat.

    Technical Specification


    Manufacturer:    Mi-Light / MiBoxer
    Product Type:    Controller
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Input Voltage:    Battery Powered
    Connectivity:    RF: 433MHz (LoRa Spread Spectrum)
    PCB Weight:    Not Applicable
    Size:    47 X 19 X 197.5mm
    Dimmable:    No
    LED Type:    Not Applicable
    Colour Temperature Variation:    IP20 No
    Power Factor >:    Not Applicable
    Wireless Range:    Up to 50 metres
    Continuous Operation:    Not suitable for 24/7 continuous use
    Modulation Method:    LoRa Spread Spectrum
    Transmitting Power:    10dBm
    Standby Power Consumption:    16uA
    Operation Frequency:    RF: 433MHz
    Battery Type:    2 x AAA Batteries
    Operating Temp:    NA
