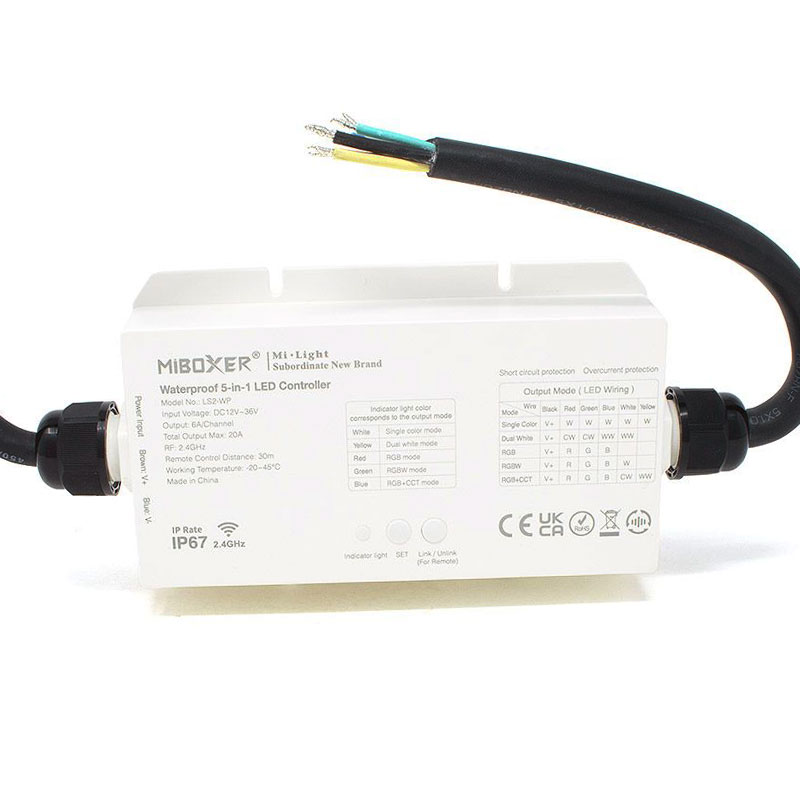

SBL-LS2WP MiBoxer 2.4GHz Waterproof 5 in 1 LED Controller
This waterproof (IP67 rated) "Five-in-One" Smart LED receiver / controller can control your single colour, dual white (CCT), tri-colour (RGB), quad-colour (RGBW) and RGBW+CCT 12v or 24v LED products when paired to a compatible 2.4GHz Mi-Light / Mi-Boxer RF handset or wall panel. In addition, when paired to the FUTD01 DMX / 2.4GHz transmitter you can also control the receiver by wireless DMX from a DMX512 controller.
To set the control mode simply toggle the set button which will change the colour of the adjacent indicator light to show White for Single colour mode, Yellow for Dual White mode, Red for Tri-Colour (RGB) mode, Green for Quad Colour (RGBW) mode and Blue for Five Channel (RGB+CCT) mode.
The receiver features auto transmitting & synchronising functions so when multiple receivers are paired to the same zone on the controller, providing they are all within 30m of each other and one unit is within 30m of the controller, all the receivers in the group will synchronise your lighting together with no interconnecting control cables.
In addition to being able to pair with the compatible Mi-Light controllers, the receivers can also be paired to a smart phone application and they also support third party voice control products such as smart speakers (Additional hub required for these features).
Compatible Mi-Light LED lighting and controllers sold separately. For product assistance please contact us by telephone, email or via the on-line chat.
Each channel is rated a 6A however the total combined load over all five channels should not exceed 20A maximum load. The controller will accept a 12v or 24v DC constant voltage input.
Feature
- 2.4GHz RF Waterproof 5 in 1 Receiver
- Compatible with Mi-Light / MiBoxer handsets and wall panels
- Smartphone Compatible
- 30m signal transmitting and synchronization between receivers
- Quick and easy to pair with handsets and wall panels
Technical Specification
Product Type: Controller / Receiver
IP Rating: IP67 Waterproof
Guarantee Period: 5 Years
Input Voltage: 12v / 24v / 36v DC
Connectivity: RF
Size: L185mm x W31mm x H87mm
Dimmable: No
Wireless Range: Up to 30 metres
Operation Frequency: 2.4GHz
Operating Temp: -20~45°C
Total Output: Max 20A
Output Max: 6A/Channel
