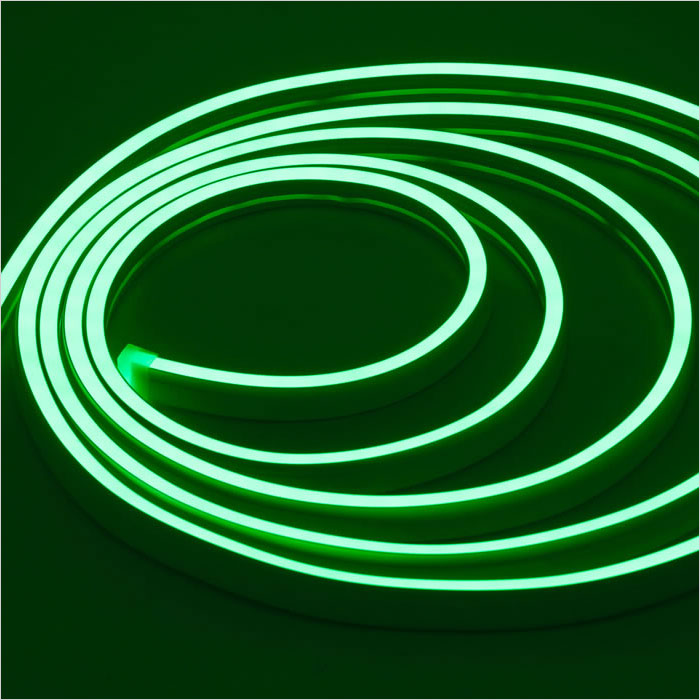

Just 6mm wide and with 120 x 2835 SMDs per metre, LED Neon Flex produces a seamless light band with no visible LED dots. Constructed using sturdy and very flexible PVC, it will let you create a new world of shapes and lighting effects for your home or business.
Neon LED Flex is a new approach to LED lighting. It draws 10 watts per metre (24V), and can be installed in lengths of up to 15m when powered from both ends. And it’s rated IP67 so it can be used for both interior and exterior projects. An ideal replacement for traditional glass neon, it’s great for signage, bars and nightclubs, and all kinds of bespoke lighting projects.
You can cut your LED Neon Flex to the length(s) you need at the marked cut-points, with any convenient utility knife. Or smartbrightLEDs offer a cutting service, so we can make up your order to the exact lengths you require – no matter what size.

Product Details:

1. Dual color silicone extrusion, anti-yellowing and salt spray resistance.
2. 5m of ultra-bright 2835 LEDs; 36 LEDs/ft
3. Dot-free, shadowless illumination
4. 24 VDC input
5. Flat surface and horizontal bending with 100mm diameters.
6. Anti-distortion and strong stretching resistance design, no damage to the LED strip while bending.
7. Lifetime exceeds 50000 hours
8. CE certified and UL listed
9. Five-year warranty

Dimensions >

Warranties & Certifications

Applications
Neon Flex Lighting are essential for night scenes and can be used in bars, commercial streets, signboards, pedestrian streets; Side lighting effects, suitable for indoor ceiling, outdoor floor and step decoration and lighting.

TECHNICAL DETAILS

**All specifications are subject to change without notice.

Maximum Bending Arc

Packaing Diagram

Cautions 1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED. 2. For better lighting effect of the product, each 5 meters strip must connect the main power source. 3. Must guarantee that each power source (GND) must be connected. 4. Should not be curving in the diameter 5in following radian, please do not rebate, in order to avoid damage lamp bead or break. 5. Please follow the user manual for installation. 6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety. 7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED. 8. Installs as far as possible the product in the appropriate environment. 9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage.

** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
