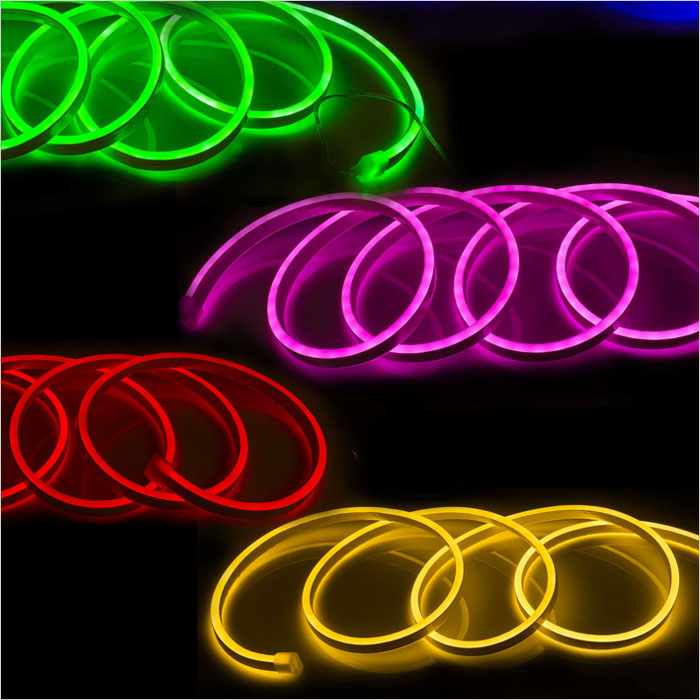

5m Single Color LED Neon Strip Light - NA0410 LED Side Bend Neon Flex - 12V/24V - IP67 Waterproof
Swap traditional neon glass tubes for these durable, flexible LED neon strip lights and stand out from the rest. Drawing from minimal power, these strips produce a continuous line of striking single-color neon light. Shatterproof and watertight, they are rated for use outdoors and in damp locations. Anti-yellowing and heat resisting silicon glue, chemical resistance acid and alkaline, available for extremely terrible outdoor environment.Excellent flexibility to shape optionally.Uniform and soft luminance, no light spot.Super brightness large chip, golden wire welded and copper led holder for quicker heat dissipation, higher stability, longer life span.
Product Details:
- Dual color silicone extrusion, anti-yellowing and salt spray resistance.
- 5m of ultra-bright 2835 LEDs; 36 LEDs/ft
- Dot-free, shadowless illumination
- 12VDC or 24 VDC input
- Flat surface and horizontal bending with 100mm diameters.
- Anti-distortion and strong stretching resistance design, no damage to the LED strip while bending.
- Lifetime exceeds 50000 hours
- CE certified
- Five-year warranty
Dimensions > Accessories >
Warranties & Certifications
Applications
Deck Lighting, Pathways, Stairways, Accent Lighting, Patios
TECHNICAL DETAILS
Operating Voltage | 12 VDC/ 24 VDC |
LED Color | Red, Green, Blue, Yellow, Pink |
LED Beam Angle | 120 degree |
Wattage | 12 watts per metre |
PCB Color | White |
LED Quantity | 600 LEDs |
Sectionsize | 04*10(mm) |
Strip Width | 5mm (0.20in) |
Segment Length | 50mm |
LED Density | 36 LEDs/ft. |
Rated Lifespan | 50,000 hours |
Length | 16.4ft (5m) reel |
Dimmable | Yes (requires controller) |
Wire Length | 508mm (20in) |
Suitable for Outdoor Use | Yes |
Protection Rating | Weatherproof IP67 |
Operating Temperature | -20~+45 °C (-4~+113 °F) |
Standards And Certifications | CE, RoHS Compliant |
**All specifications are subject to change without notice.
Maximum Bending Arc
Packaing Diagram
Cautions 1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED. 2. For better lighting effect of the product, each 5 meters strip must connect the main power source. 3. Must guarantee that each power source (GND) must be connected. 4. Should not be curving in the diameter 5in following radian, please do not rebate, in order to avoid damage lamp bead or break. 5. Please follow the user manual for installation. 6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety. 7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED. 8. Installs as far as possible the product in the appropriate environment. 9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage. |
** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
