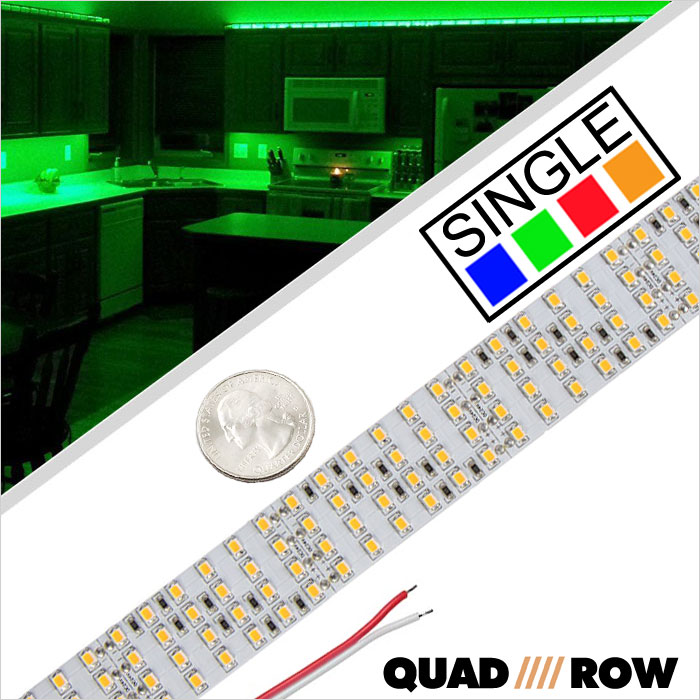

    2835 Single Color LED Strip Light - Bright Quad Row LED Tape Light - 24V - IP20 - 5m - 991 lm/ft

      (5 Reviews) | Write a review
    SKU: 4SNC-2835-IP20-80CRI-5m

    Please Choose:





    Discontinued
    Starting at: $169.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Dec,21 and Fri,Dec,27. order with 2days,9hrs and 31 min.

    This super-bright LED light strip is great for creating a high-power light fixture and can be used for accent lighting, wall washing, theater lighting, stage lighting, sign backlighting, bias lighting, cabinet lighting, under-cabinet lighting, showcase lighting, trade show lighting, or for other indoor applications where space is limited. Using enhanced 2835 SMD LEDs, the quad-row light strip emits up to 1,085 lumens of red, green, or blue illumination per foot. The non-weatherproof LED strip light is available in custom lengths up to 5m and can be easily cut into 24-LED segments and installed with its peel-and-stick adhesive backing. The length selected will automatically calculate the quantity of 24-LED segments in your custom length. This strip must run back to the power source every 16-3/8' (5m) to avoid excessive voltage drop. The single-color light strip has 24 VDC operation and is designed to last 60,000 hours. High-CRI version also available in cool, natural, and warm white colors.

    Features:

    1. 80+ CRI rating ensures vibrant, natural-looking color tones
    2. 24V input
    3. Strip width measures 28mm
    4. Lifetime exceeds 50000 hours
    5. CE certified and UL listed
    6. Lifetime warranty

    Warranties & Certifications

    Application & Use
    SmartBrightLEDs White Series LED strip lights are installed in a wide variety of applications including:
    TV backlighting, Linear lighting, Cove lighting, Display / jewelry case lighting, Bar and restaurant accent lighting, Above cabinet lighting, Under counter lighting, Hotel lobbies, Cove lighting


    TECHNICAL DETAILS

    Voltage 24V DC
    Beam Angle 120 degree
    Connection Type Pigtail
    IP Rating Non-Weatherproof, Weatherproof IP67
    LED Density 132 LEDs/ft.
    LED Type 2835 SMD
    LEDs per Segment 24
    Strip Width 28mm (1.10in)
    Length per Segment  5.7cm (2.25in)
    Max Run 90
    Rated Lifespan 50,000 hours
    Length 16.4ft (5m)
    Dimmable Yes (requires Trulux controller)
    DMX Compatible Yes
    Wattage per Foot 12 Watts
    Max Run in Feet 16.2ft
    Efficacy 93 lm/w
    Segment Length 56mm (2.2in)
    Operating Temperature -20~+45 °C (-4~+113 °F)
    Standards And Certifications CE, RoHS Compliant

    **All specifications are subject to change without notice.


    Incorrect Use:

    Packaing Diagram

    Use of environmental conditions
    1). LED strips installation must be operated by professionals.
    2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
    3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
    4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
    5). Please do not strongly pull、crash the LED strips during  installation  process. And avoid squeezing and scratching LED strips with sharp objects.
    6). During the warranty period, only defective products are acceptable to be replaced by the factory.  Factory is not responsible for other expenses because of replacement,such as transportation fee, installation fee, etc.



                                                                                                                                                 Cautions
    1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED.
    2. For better lighting effect of the product, each 5 meters strip must connect the main power source.
    3. Must guarantee that each power source (GND) must be connected.
    4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break.
    5. Please follow the user manual for installation.
    6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety.
    7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED.
    8. Installs as far as possible the product in the appropriate environment.
    9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage.

    ** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
