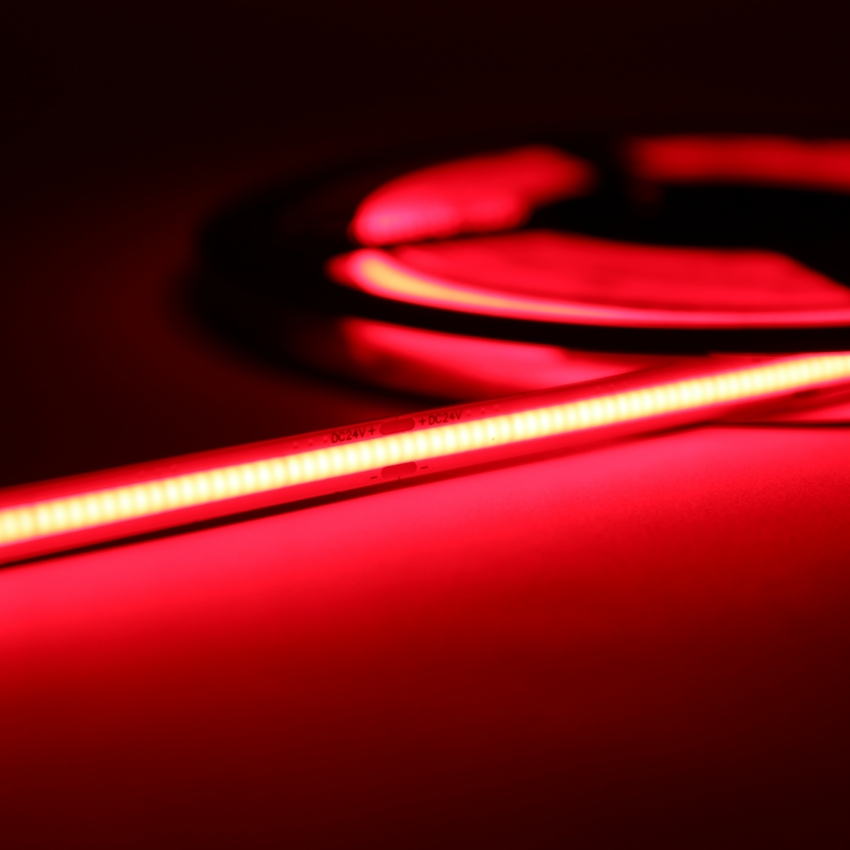

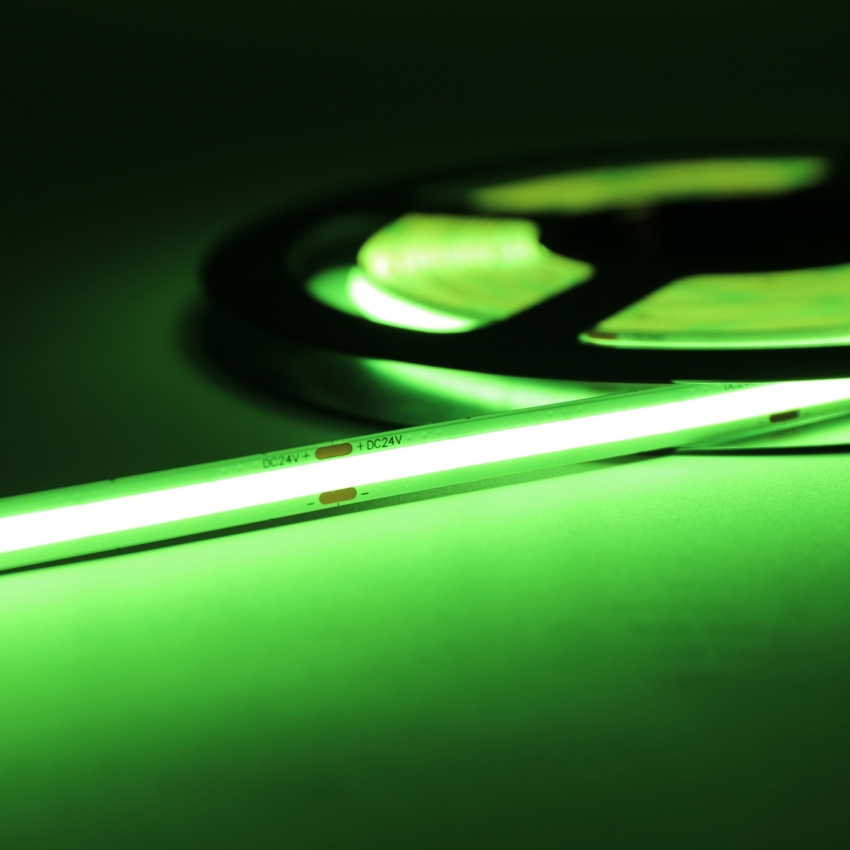

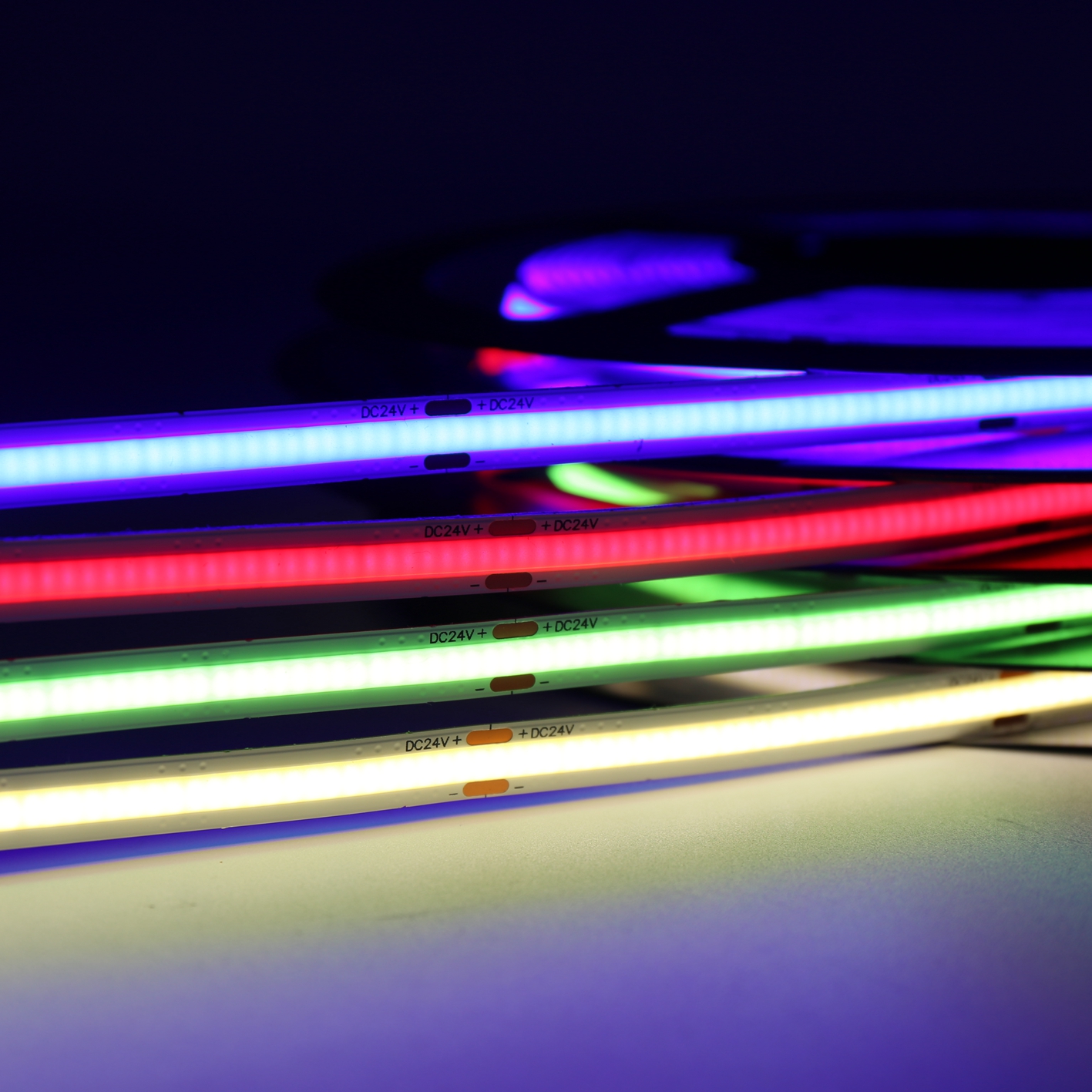

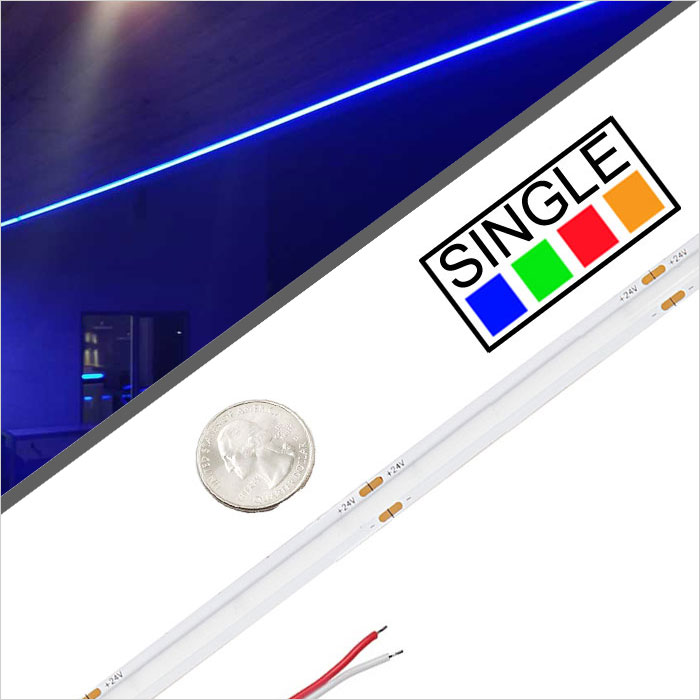

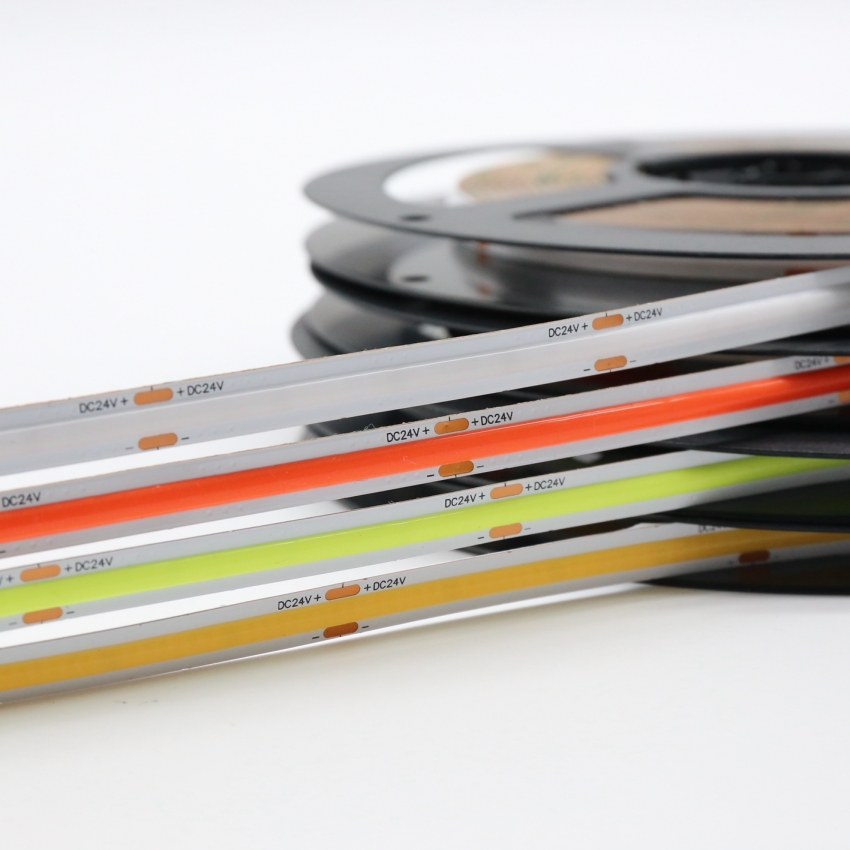

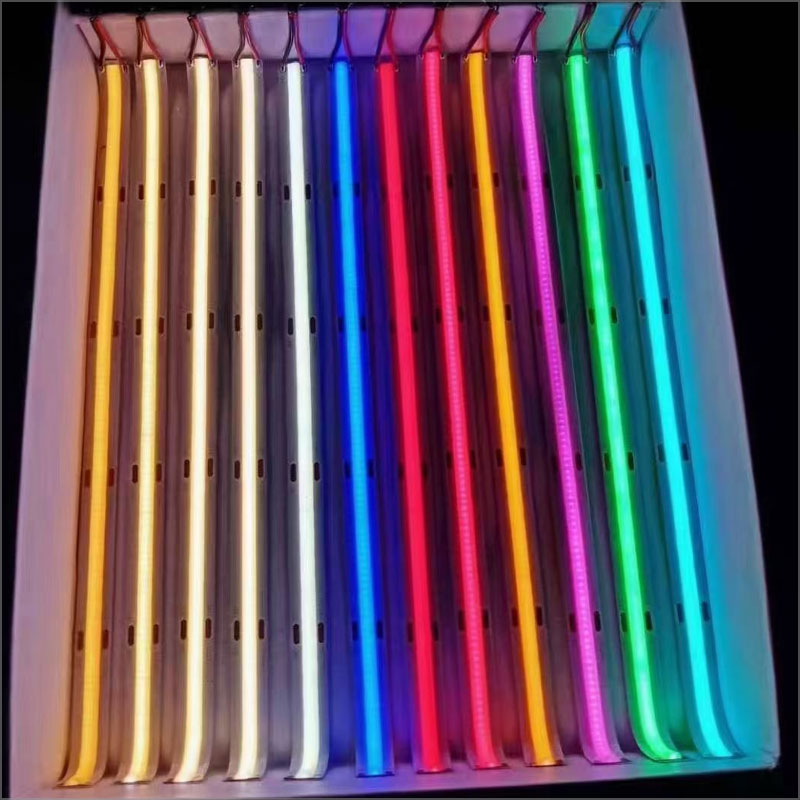

5m Single Color COB LED Strip Light - COB Series LED Tape Light - 24V - IP20
COB Series COB LED Strip Light creates a smooth, seamless single color light. Chip-on-board technology has a higher density of LEDs, for a more intense, uniform light that reduces heat buildup. Superior design will not show visible dots or hot spots, making it ideal for reflective surfaces such as granite countertops and tile floors. With no need for additional diffusers, the low profile strip can illuminate narrow applications such as backlighting or displays. Improved flexibility can wrap light along edges and curved surfaces.
Product Details:
- Strip width: 8mm, Also available in 10mm Wide version
- 3M™ adhesive backing
- Flexible COB design for highly adaptable mounting
- 2.46 in. (62.5 mm) segment length
- 24 VDC input voltage
- 50 W total (3.05 W/ft)
- 30,000 hour lifetime (L70)
- 16.4 ft (5 m) max run
- 0-100% dimmable
- Connection: pigtail
- 180° beam angle
- UL Listed
- IP20 Rated for dry conditions
- 5-year warranty
Warranties & Certifications
Application & Use
SmartBrightLEDs White Series LED strip lights are installed in a wide variety of applications including:
TV backlighting, Linear lighting, Cove lighting, Display / jewelry case lighting, Bar and restaurant accent lighting, Above cabinet lighting, Under counter lighting, Hotel lobbies, Cove lighting
TECHNICAL DETAILS
LED Beam Angle | 180 degree |
Connection Type | Pigtail |
Voltage | 24 VDC |
Current Draw Per Foot | 127mA |
Current Draw | 2.08A (2080mA) |
IP Rating | Non-Weatherproof |
LED Density | 156 LEDs/ft. |
LED Quantity | 2560 LEDs |
LED Type | COB (chip-on-board) |
LED per Segment | 32 |
Rated Lifespan | 50,000 hours |
Length | 16.4ft (5m) |
Dimmable | Yes (requires Trulux controller) |
Max Run | Up to 32.8ft (10m) |
Strip Width | 8mm (0.31in) |
Wattage Total | 50 Watts |
Wattage per Foot | 3.1 W/ft (10.2 W/m) |
Minimum Cut Length | 62.5mm (2.46in) |
Operating Temperature | -20~+40 °C (-4~+104 °F) |
Standards And Certifications | RoHS Compliant, UL Listed |
**All specifications are subject to change without notice.
Download COB Series Single Color,CCT and RGB Specification Sheet
Incorrect Use:
Packaing Diagram
Use of environmental conditions
1). LED strips installation must be operated by professionals.
2). For avoiding LED get vulcanized, LED strip should be installed in the environment where does not has oil and corrosive substances. Such as these substances which contain Sulphur、Bromine、Iodine and Chlorine. Some other chemical elements which will cause Aromatic hydrocarbons releasing(such as: methylbenzene、xylene、methyl acetoacetate Ethyl acetate etc.).The environment in which includes strong acid and strong base.
3). For cutting LED strip operation, it is necessary to use the standard accessories provided by smartbrightLEDs (e.g. DC wire, end-cap, front-cap, adhesive, etc.), and according to the correct cutting and connecting method for the installation.
4). LED strip cannot be installed in some areas where water hazard might be formed, such as the surface of pits and ditches. And similar places in which rain and water may be accumulated easily.
5). Please do not strongly pull、crash the LED strips during installation process. And avoid squeezing and scratching LED strips with sharp objects.
6). During the warranty period, only defective products are acceptable to be replaced by the factory. Factory is not responsible for other expenses because of replacement,such as transportation fee, installation fee, etc.
Cautions 1. In order to guarantee the LED life and the use environment, cannot make any force when the product lighting use to pull the power cables, forbids to collide, in order to avoid damages LED. 2. For better lighting effect of the product, each 5 meters strip must connect the main power source. 3. Must guarantee that each power source (GND) must be connected. 4. Should not be curving in the diameter 60mm following radian, please do not rebate, in order to avoid damage lamp bead or break. 5. Please follow the user manual for installation. 6. Please note the careful operation, in the power source connection's situation, will touch the alternating current supply end possibly to cause your safety. 7. In the actual application, the power source should retain 20% remainders, guaranteed that the sufficiency the voltage lightens LED. 8. Installs as far as possible the product in the appropriate environment. 9. Pays attention to the power cable in the installment process positive and negative extremely, please do not wrong, power source and product voltage to be whether correct, in order to avoid creates the product the damage. |
** If you do not follow the above "Cautions" to operate and result in damaging the product, the factory will not accept maintenance and return.
