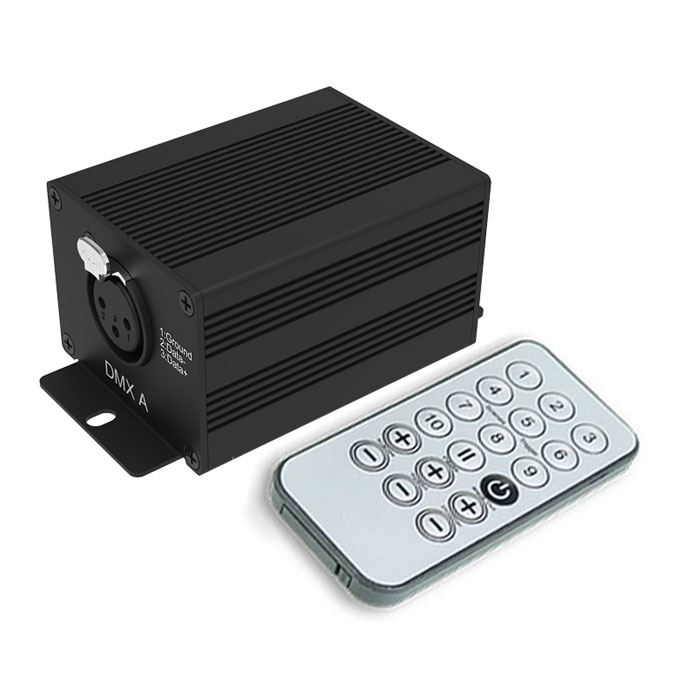

HARDWARE TECHNICAL SPECIFICATIONS
Input USB 2.0 via Mini USB
Number of DMX Outputs up to 128 on 3 pin XLR (XLR5 optional)
DMX Speed 1 to 45 Hz, MaB, Bk
Stand Alone Mode Yes, 128 channels, fine DMX channels ( 16 bits)
Internal Memory Yes (40 Kb)
Memory Capacity 2600 steps with 16 ch., 650 steps with 64 ch., 325 steps with 128 ch.
Infra-red Receiver Yes, (IR remote control for triggers available in option)
Infra-red Options 10 scene selection, scene speed, general dimmer and next scene
Dry Contact Triggers Yes (4 contacts port)
Next Scene Trigger Button Yes
Power Supply Input 5V via USB
High voltage Protection Yes
Housing Strong Aluminum
Infre-Red remote No
Usb Mode Yes
Display of signal states USB LED
Power 2 W
CPU’s technology 32 bits
Dimensions H : 40mm(1.57in) / W : 50mm(1.97in) / D : 78mm (3.07in)
Weight 0.115Kgs
Color Black
IP rating IP20
Place of Use Indoor
Storage Keep in dry place
Compatibility 8 and 16 bits DMX fixtures
Operating Temperature - 25 to +70 C°
Certifications CE, RoHS, Fcc
International Warranty Yes, 1 year
Software features:
LED Player 128 channels, stand alone, No Audio Beat, 20 Scenes and 20 Programs in
 Live Board
Studio DMX 3D viewer Demo mode, 20 object / 20 fixtures max., 192 channels max.
Pro DMX No
Art-Net Output from PC No
Wi-Light 2016 App Yes, can control the LED Player Live Board with a WIFI connection
System Compatibility Windows, MAC Os X (10.6 and higher) and Linux (64 Bits)
Free Software Updates Yes
Package Content:
Small package + 1 USB cable + 1 USB to DMX Interface (3 Pin XLR, 5 pins in option)
