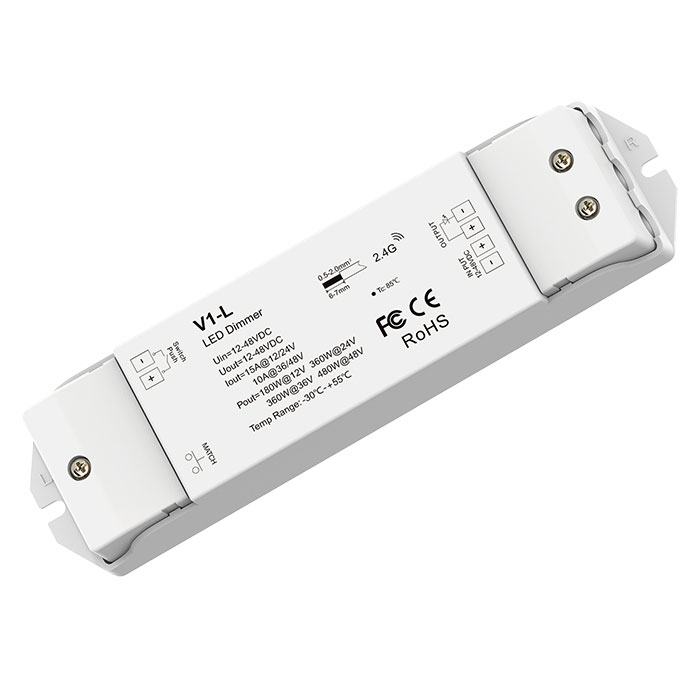

Features
● 4096 levels 0-100% dimming smoothly without any ash.
● Match with RF 2.4G single zone or multiple zone dimming remote control.
● One RF controller accept up to 10 remote control.
● Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
● Synchronize on multiple number of controllers.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● Light on/off fade time 3s selectable.
● Over-heat / Over-load / Short circuit protection, recover automatically

Download V1-L Specification Sheet

RF DIM Control System

Wireless series products are widely used in lighting projects for their features of free wiring, easy installation, low cost, reliable performance and rich combination.

Skydance wireless dimming series includes 1/ 2/3/4 channelscontroller, remote control, panelcontrollers&remote and dimmable LED driver. Through product different collocation to achieve light on/off control, brightness adjustment, group partition, scene, timing, sensor and other intelligent control functions.

1. The dimming (1 channel) controller can be matched with all remote controls (including hand-held remote, panel remote, desktop remoteof dimming, CCT, RGB, RGBW and RGB+CCT), achieving 0-100%dimming, 256 level brightness, 4096 level gray-scale.

2. Adopt 2.4G wireless technology, the remote control distance is 30 meters, the controller has the cascade function, through the signal forwarding between the controllers can reach hundreds of meters of control distance.

3. The 2/3/4 channel controller can be used as a dimming controller when connect with single color light and matching the dimming remote control.

4. One controller can be matched with up to 10 remote controls. A controller can match in the same remote control of different zones, to achieve flexible grouping function.

5. A remote control can control single or multiple zones, each zone can be matched with an infinite number of controllers.

6. All controllers on the same zone are automatically synchronized.

7. The dimming series includes constantvoltage controller, constantcurrent controller, dimming remote control, dimming panel, constantvoltage dimmable LED driver, constant-current dimmable LED driver, WiFi-RF converter and power repeater, etc.
