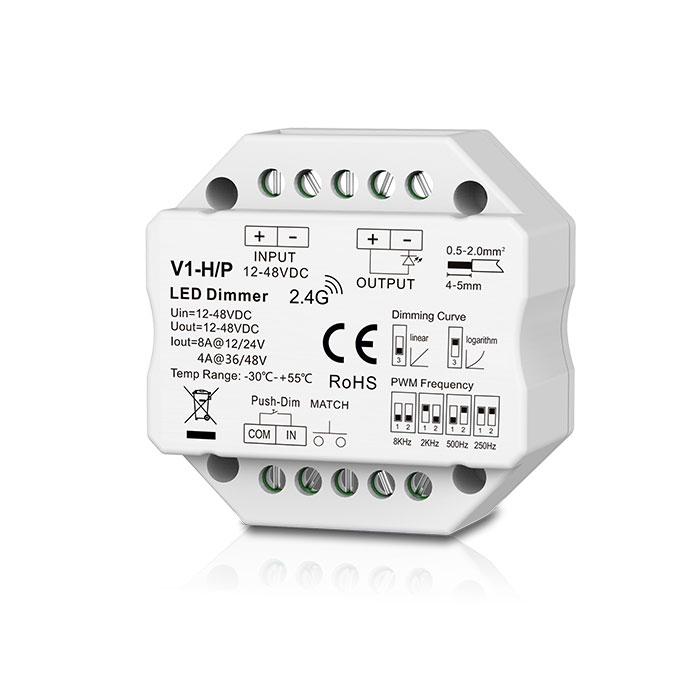

1CH*6A/8A 12-48VDC CV controller - V1-H/P
SKU:
V1-H/P
Features
● 4096 levels 0-100% dimming smoothly without any flash.
● Match with RF 2.4G single zone or multiple zone dimming remote control.
● One RF controller accept up to 10 remote control.
● Auto-transmitting function: Controller automatically transmit signal to another
controller with 30m control distance.
● Synchronize on multiple number of controllers.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● Logarithmic or linear dimming curve selectable.
● PWM frequency 250Hz, 500Hz, 2kHz or 8kHz selectable.
● Light on/off fade time 3s selectable.
● Easy to be placed in standard wall junction box behind a push switch.
Download V1-H/P Specification Sheet
