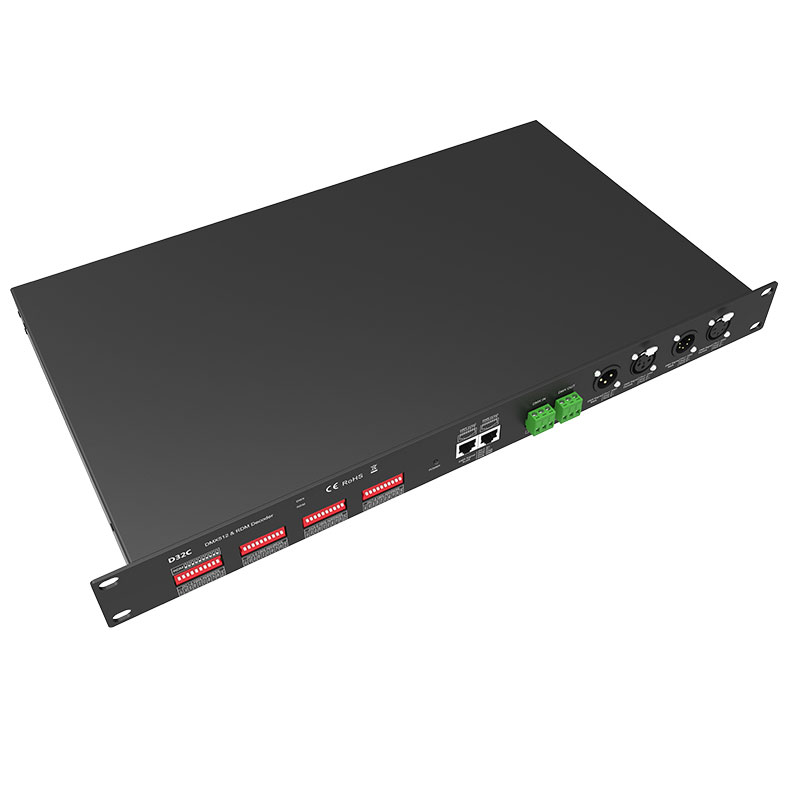

32 Channel Constant Current DMX512 & RDM Decoder - 12~48VDC - SBL-TY-D32C(350mA)
Features
● DC12-48V power input, 32 channel PWM constant current output.
● Comply with the DMX512 standard protocols.
● Set DMX decode start address via DIP switch.
● RDM function can realize intercommunication between DMX master and decoder. For example, DMX decoder address can be set by DMX master console.
● Green terminal, XLR3, XLR5 and RJ45 port DMX signal input.
Download SBL-TY-D32C Specification Sheet
CC DMX512&RDM Decoder
1. The CC DMX512 decoder are compatible with latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) international standard protocols.
2. CC DMX decoders convert universal DMX512/1990 digital signal to constant current PWM signal to drive LED controlled by DMX512 console or our DMX master to realize 0-100% lighting adjustment.
3. The DMX address can be set via a digital tube display key, or remotely via a DMX512/RDM console.
4. To control single color, dual color, RGB or RGBW constant current LED lighting with 3/4channels CC DMX decoder.
5. Short circuit / Reverse polarity protection.
