Features
● Comply with the DMX512 standard protocols.
● Digital numeric display, set DMX decode start address by buttons.
● RDM function can realize intercommunication between
DMX master and decoder. For example,
DMX decoder address can be set by DMX master console.
● 1/2/4 DMX channel output selectable.
● PWM frequency 2000/500Hz selectable.
● Logarithmic or linear dimming curve selectable.
● Stand-alone dynamic mode and 4 channel dimmer mode selectable, which be controlled by buttons with built-in programs, instead of DMX signal.
● Green terminal, XLR3 and RJ45 port DMX signal input.

Download SBL-S4-DX Specification Sheet

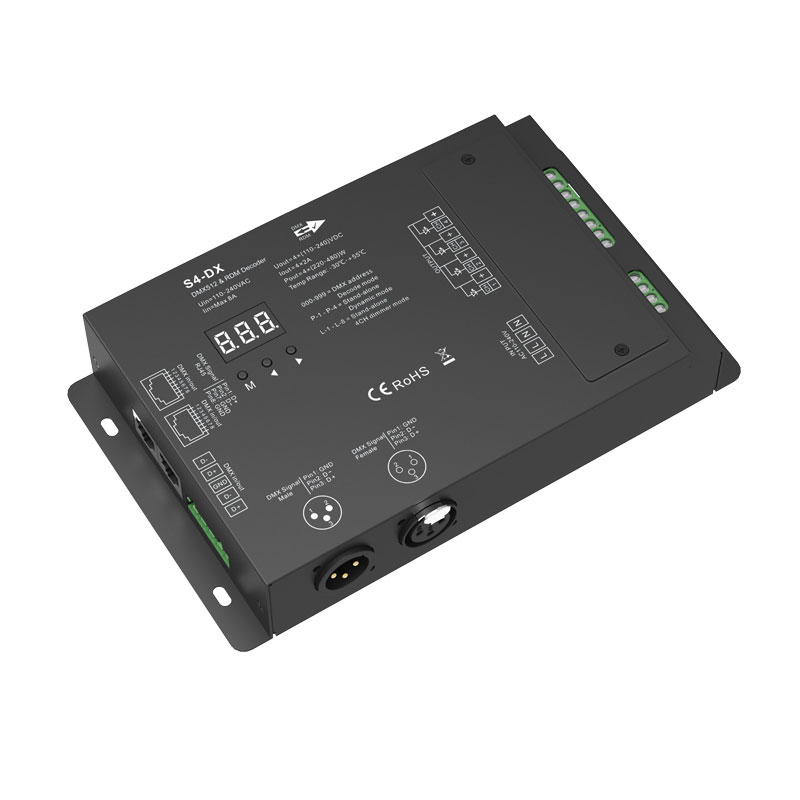

High Voltage LED STRIP DMX512&RDM Decoder
1. The high voltage LED strip DMX512 decoder are compatible with latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) international standard protocols.
2. The high voltage LED strip DMX decoders convert universal DMX512/1990 digital signal to constant voltage PWM signal to drive LED controlled by DMX512 console or our DMX master to realize 0-100% lighting adjustment.
3. The DMX address can be set via a digital tube display key, or remotely via a DMX512/RDM console.
4. To control single color, dual color, RGB or RGBW high voltage LED strip with the 3/4 channels high voltage LED strip DMX decoder.
5. Over-load protection.
