Featrues
● DC to DC constant current output, multiple output current settings.
● Comply with the DMX512 standard protocols.
● Digital numeric display, set DMX decode start address by buttons.
● RDM function can realize intercommunication between DMX master and decoder. For example, DMX decoder address can be set by DMX master console.
● 1/2/4 DMX channel output selectable.
● 16bit (65536 levels) /8bit (256 levels) grey level selectable.
● PWM frequency 250/500/1000/2000/4000/8000/16000Hz selectable.
● Logarithmic or linear dimming curve selectable.
● Stand-alone RGB/RGBW mode and 4 channel dimmer mode selectable, which be controlled by buttons with built-in programs, instead of DMX signal.

Download SBL-D4C Specification Sheet

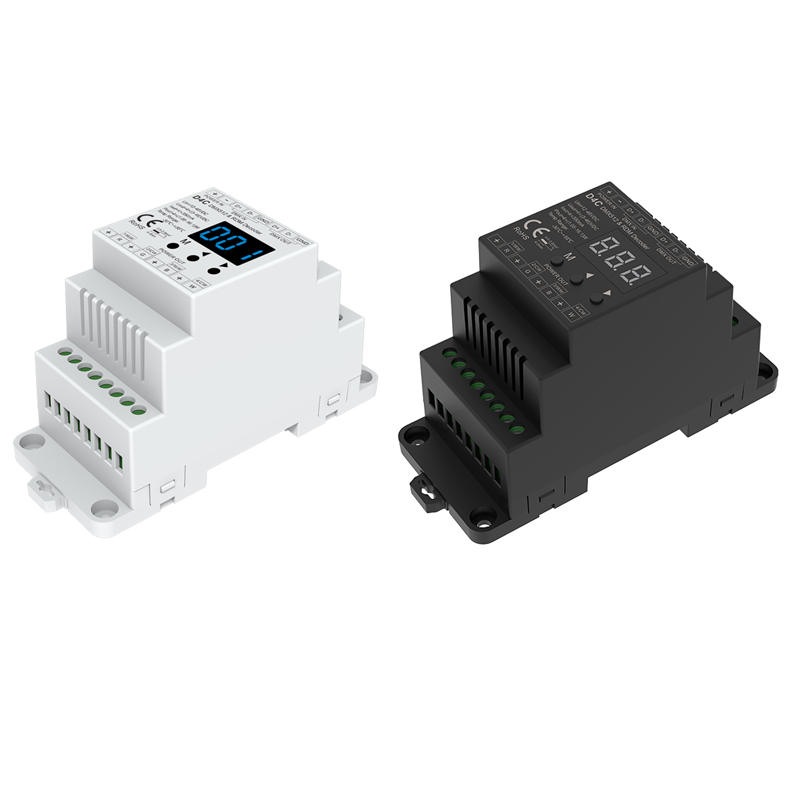

CC DMX512&RDM Decoder
1. The CC DMX512 decoder are compatible with latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) international standard protocols.
2. CC DMX decoders convert universal DMX512/1990 digital signal to constant current PWM signal to drive LED controlled by DMX512 console or our DMX master to realize 0-100% lighting adjustment.
3. The DMX address can be set via a digital tube display key, or remotely via a DMX512/RDM console.
4. To control single color, dual color, RGB or RGBW constant current LED lighting with 3/4channels CC DMX decoder.
5. Short circuit / Reverse polarity protection.
