Features
● Comply with the DMX512 standard protocols.
● Digital numueric dispaly, set DMX decode start address by buttons.
● RDM function can realize intercommunication between DMX master and decoder. For example, DMX decoder address can be set by DMX master console.
● 1/2/4 DMX channel output selectable.
● 0-10V or 1-10V output selectable.
● Logarithmic or linear dimming curve selectable.
● Stand-alone RGB/RGBW mode and 4 channel dimmer mode selectable, which be controlled by buttons with built-in programs, instead of DMX signal.

Download SBL-DL-L Specification Sheet

0/1-10V Signal Converter
1. Includes RF 0/1-10V dimmer and DMX 0/1-10V decoder.
2. The RF 0/1-10V dimmer output 1 or 4 channel 0/1-10V signal, which is matched with the RF dimming remote control.

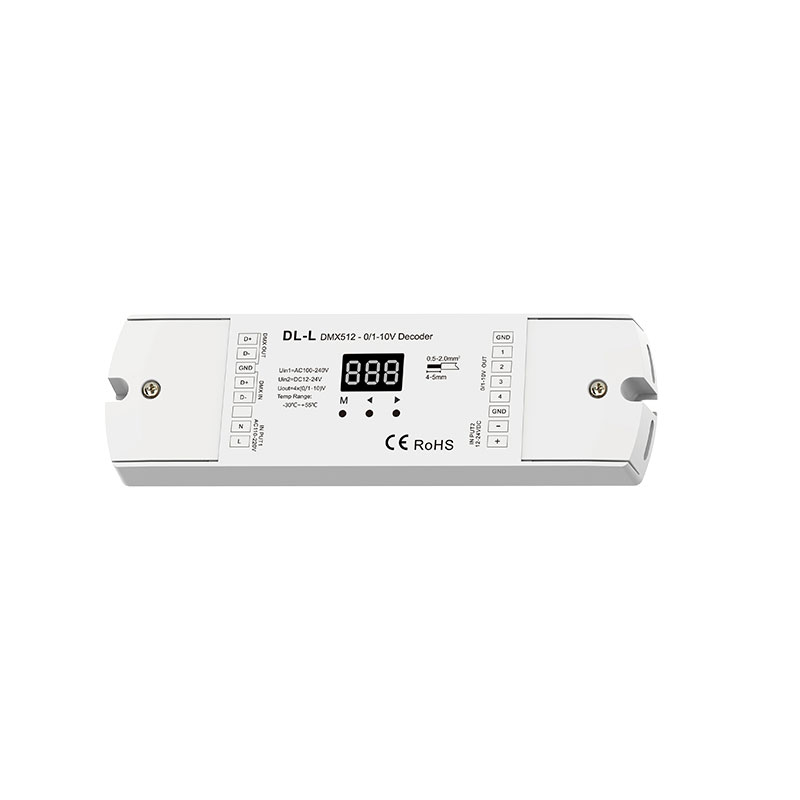

3. The DMX 0/1-10V decoder output 4 channel 0/1-10V signal, compatible with DMX512/RDM standard protocol, andset the DMX address by digital tube display key.
