Features
● One DMX512 signal input, repeat four DMX512 signal output, each allowing for 32 DMX devices to be connected.
● Dedicated to amplify, distribute and insulate the signal that comes from the lighting system equipment when it is connected to the bus of DMX512(or RS-485).
● Photo-electricity insulation between input and output terminals, output terminals among channels.
● Input isolated from outputs to 500VAC, 1000VDC.
● Outputs are isolated from each other to 500VAC, 1000VDC.
● Input and outputs are ture RS-485 rated, and no microprocessors are used for maximum reliability.
● 3 pin XLR / 3 screw terminals input and loop through, 5 pin XLR option available.
● 6 front panel LEDs indicate power in, DMX in and DMX output status at each output.

Download SBL-DMX Specification Sheet

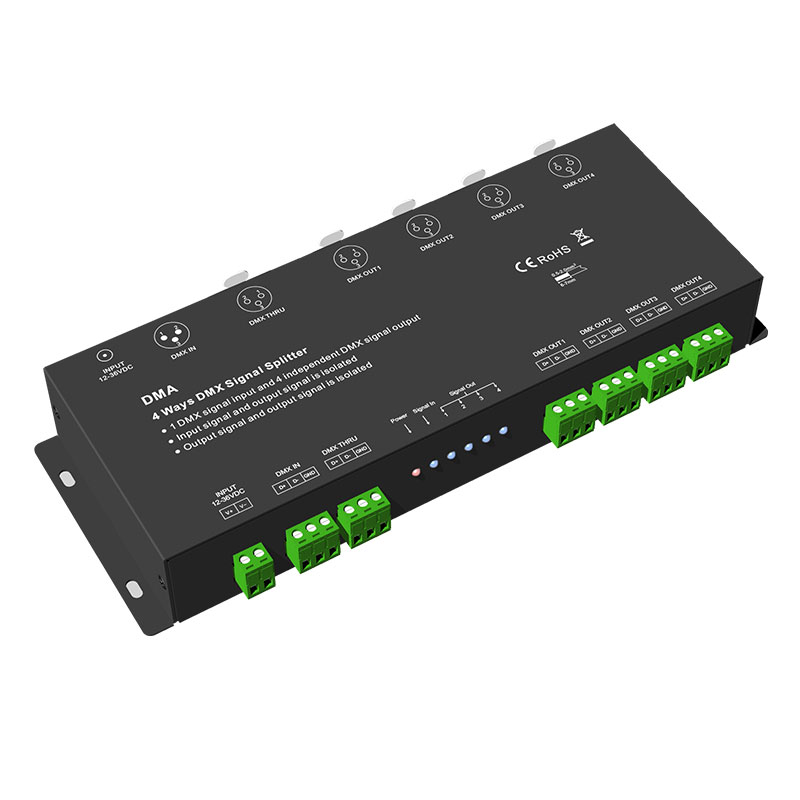

DMX512 Signal Amplifier
1. The DMX signal amplifier is dedicated to the DMX512(or rs-485) bus for signal amplification, distribution, and isolation.
2. The DMX signal is transmitted over a long distance, or the DMX signal attenuation after multiple DMX decoder devices are connected together is processed by shaping and amplifying to extend the signal transmission distance.
3. 1 way input, 1/2/4 way output, photoelectric isolation between input and output.
