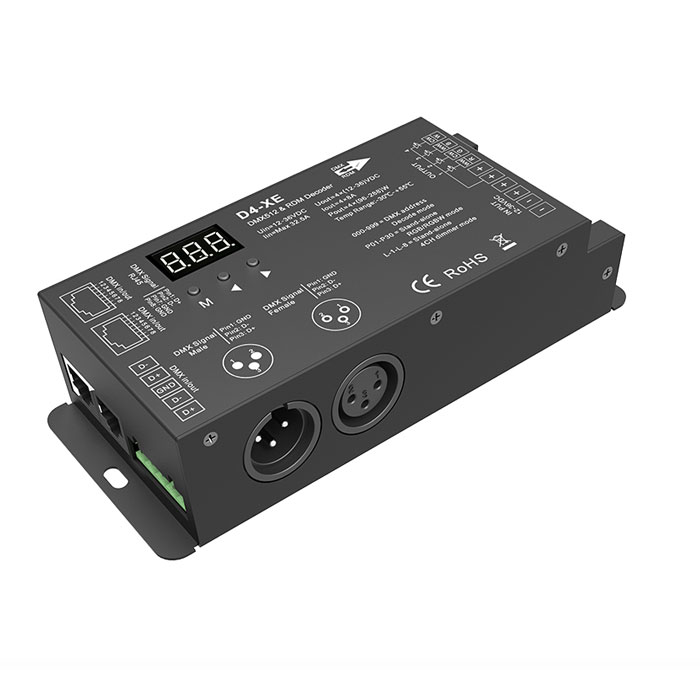

    4CH*8A 12-36VDC CV DMX Decoder - D4-XE

      (1 Reviews) | Write a review
    SKU: D4-XE
    Discontinued
    Starting at: $86.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

    ● Comply with the DMX512 standard protocols.
    ● Digital numeric display, set DMX decode start address by buttons.
    ● RDM function can realize intercommunication between
     DMX master and decoder. For example,
     DMX decoder address can be set by DMX master console.
    ● 1/2/4 DMX channel output selectable.
    ● 16bit (65536 levels) /8bit (256 levels) grey level selectable.
    ● PWM frequency 250/500/1000/2000/4000/8000/16000Hz selectable.
    ● Logarithmic or linear dimming curve selectable.
    ● Stand-alone RGB/RGBW mode and 4 channel dimmer mode selectable,
     which be controlled by buttons with built-in programs, instead of DMX signal.
    ● Green terminal, XLR3 and RJ45 port DMX signal input.
    ● Over-heat / Short circuit protection, recover automatically.
    Download D4-XE Specification Sheet
