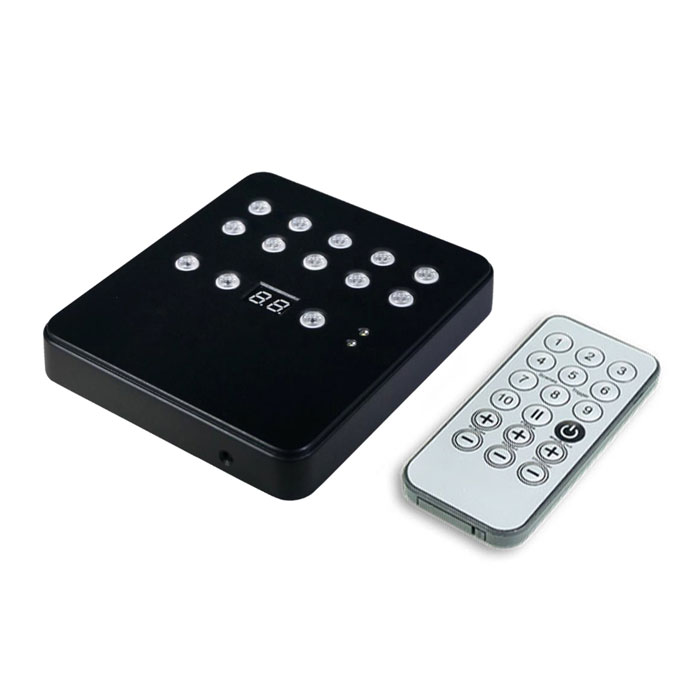

HARDWARE TECHNICAL SPECIFICATIONS
Input/output Connectors: Screw terminal (4 pins + 5 pins)
Number of DMX Input/Output: 512 or 1024 (PC + Standalone)
PC DMX IN triggers: Yes
Standalone DMX IN triggers: 512 channels available only with a 1024 interfaces
DMX Merging: Yes, 512 channels from DMX B to DMX A, only with 1024 interfaces
Standalone DMX merging: 512 channel from DMX B to DMX A only with 1024 interfaces
External triggers: x4 contacts (5V.) multiplexed to 15 contacts max, (20m max cable length)
Infra-Red connection: Yes via an external IR module and 3 connection wires (max 15m away)
Master/Slave connection: Yes, 3 wires for 16 connected interfaces max, (20 m cable distance max)
DMX Speed: 1 to 45 Hz, MaB, Bk
USB Mode: Yes
Stand Alone Mode: Yes
Internal Clock (RTC): Yes
Internal calendar: Yes
Backups of the internal clock: Yes, 3 weeks without power
Internal memory: Yes (4 MB)
Memory Capacity: 4000 steps with 512 channels, 100 000 steps with 16 channels
Display of signal states: DMX LED + USB LED
Data display: 7 segment LED display (blue)
Power supply input: 9-36V external or 5V with USB
Contact Input Voltage (stand-alone): 5 V
Input Current: 80 to 200 mA
Power: 2 W
CPU's technology: 32 bits
Dimensions: H : 127 mm, W : 110 mm, D : 19 mm
Weight: 250 g
Color: Black / White
Operating temperatures: -25 to +70 °C
Certificates: CE, RoHS
IP Rating: IP20
Place of Use: Indoor
Storage: Keep in a dry place
Warranty: 24 months
Compatibility: 8 and 16 bit DMX fixtures
System Compatibility: Windows XP, Vista, 7, 8, 8.1, 10, MAC OS X (10.6 and higher), Linux
