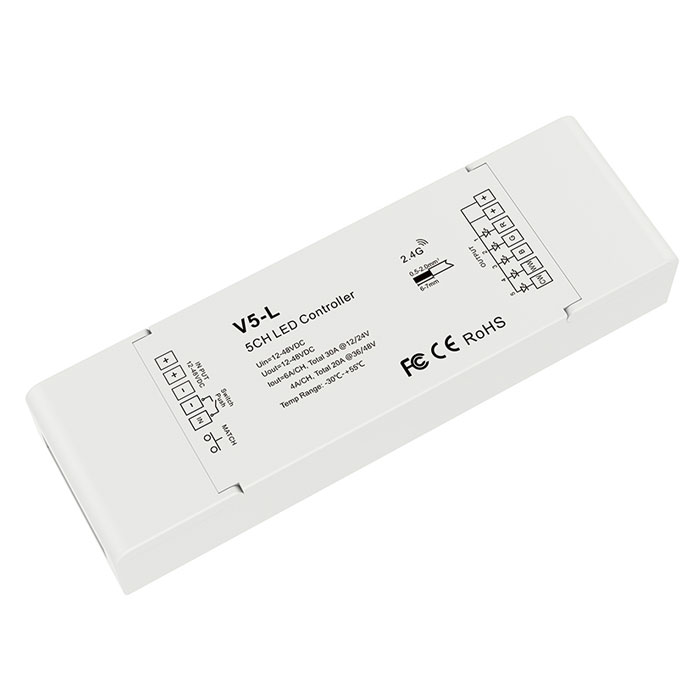

    5CH*6A 12-48VDC CV Controller(Push Dim) - V5-L

      (4 Reviews) | Write a review
    SKU: V5-L
    Discontinued
    Starting at: $69.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Nov,21 and Wed,Nov,27. order with 2days,9hrs and 31 min.

    ● 5 in 1 function, used for control RGB, RGBW, RGB+CCT, color temperature or single color LED strip.
    ● Match with RF 2.4G single zone or multiple zone remote control.
    ● One RF controller accept up to 10 remote control.
    ● 4096 levels 0-100% dimming smoothly without any flash.
    ● Built in 10 dynamic mode, include jump or gradual change style.
    ● Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
    ● Synchronize on multiple number of controllers.
    ● PWM frequency 500Hz, 2000Hz, 8000Hz or 16000Hz selectable.
    ● Light on/off fade time 3s selectable.
    ● Connect with external push switch to achieve on/off and 0-100% dimming function.
    Download V5-L Specification Sheet
