Features
● AC phase-cut mosfet DALI dimmer, one DALI address, one channel output.
● In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
● DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
● Reverse-phase dimming or forward-phase dimming selectable.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
● Over-heat protection, recover automatically

Download SBL-DT Specification Sheet

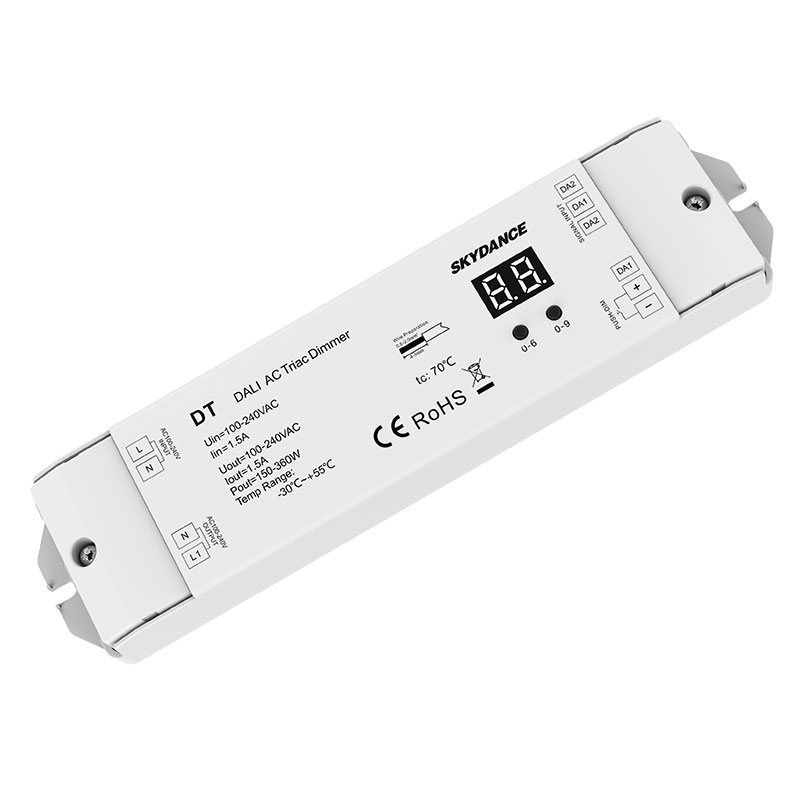

DALI Triac Dimmer
1. one DALI address, one channel output.
2. In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI productsfrom other international incorporation.
3. DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
4. Leading edge dimming or trailing edge dimming selectable.
5. To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
