Features
● DMX512 to SPI decoder and RF controller with digital display.
● Compatible with 34 kinds digital IC RGB or RGBW LED strip,
IC type and R/G/B order can be set.
Compatible ICs:
TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B, SK6812, UCS8904B, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822,
TM1914A,GS8206,GS8208.
● DMX decode mode, stand-alone mode and RF mode selectable.
● Standard DMX512 compliant interface, set DMX decode start address by buttons.
● Under stand-alone mode, change mode, speed or brightness by bottons.
● Under RF mode, match with RF 2.4G RGB/RGBW remote control.
● 32 kinds dynamic mode, include horse-race, chase, flow, trail or gradual change style.

Download SBL-DS Specification Sheet

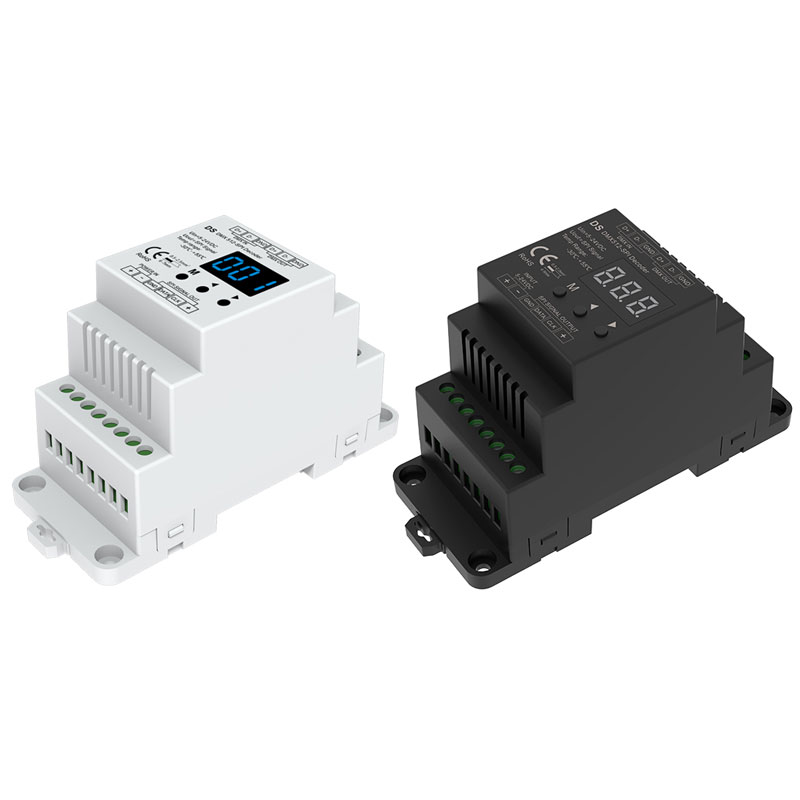

DMX-SPI Decoder
1. The DMX-SPI decoder are compatible with latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) international standard protocols.
2. The DMX-SPI decoder convert universal DMX512/1990 digital signal to SPI(Data or Data + Clock) signal, to drive pixel LED strip.
3. DMX address, chip type, R/G/B color order and control pointscan be set via digital tube display key.
4. The DMX-SPI decoder can also be matched with the RGB SPI remote.
5. 32 change modes are available, including horse-race, chase, flow, trail or gradual change style.
