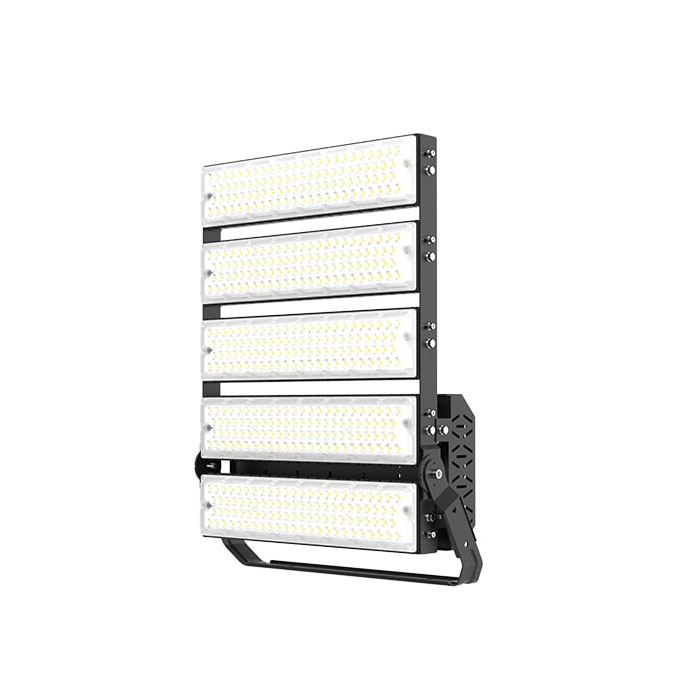

    1000W LED Sports Lighting, 175LM/W, 175,000 lumens, 100-277V, 2000W Equivalent

      (9 Reviews) | Write a review
    SKU: LSHM‐B1000W‐LVX

    Please Choose:







    Discontinued
    Starting at: $986.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Tue,Dec,03 and Mon,Dec,09. order with 2days,9hrs and 31 min.
    • 175Lm/W can save a lot of energy consumption for your stadium sports field and get more and higher quality light;
    • 1000 watt Module LED Flood light can emit 175,000 lumens of light and can replace 2000 watt metal halide MH or HPS / HID lamps. 3000-6500K optional light colors ensure that bright and clear light with different color temperatures can be selected in different scenes;
    • Using folding Aluminum Fin design, light weight, Thermal effect is good;
    • The bracket can be rotated up and down for easy adjustment, and can be installed in various ways. Ideal for directing light more precisely in the right direction or areas with special lighting requirements. It is the best installation or refurbishment option for basketball courts, football fields, baseball fields, golf courses and other sports fields;

    Warranties & Certifications


    Specifications
    Watt:    1000W
    Lumen:    160,000Lumen,    175,000Lumen
    Efficiency:    160Lm/W±3%,    175Lm/W±3%
    Input Volt:    100-277VAC
    Chip Brand:    Lumileds/ Osram 5050
    CCT:    3000K 4000K 5000K 5700K 6500K
    Modules:    None Rotatable
    Weight:    20kg
    Size:    729*650*188mm
    Beam Angle:    10/ 20/ 40/ 60/ 90 degree/ 140*100/ 135*60 degree(P50)
    Driver:    Meanwell 5PCS XLG-240-H-A/ ELG-240-48A
    Driver(Optional):    Sosen 5pcs SS-200VA-56
    Wind rating:    51.0-56.0m/s
    IP Rating:    IP66 & IK10
    CRI:    Ra70 (Ra80, Ra90 optional)
    Dimmable:    Optional dimmable and non-dimmable
    Certification:    ENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved
    Life Time:    L70/B10 >50,000hours
    Warranty:    5 Years / 7 years extended warranty available


    Why Choose 1000W LED Sports Lighting?

    1.High luminaire efficiency up to 175lm/w;
    2.Marine grade aluminum housing;
    3.IP66 and IK10 protection rate;
    4.5 years warranty;
    5.Folding aluminum fin design which are very light weight;
    6.ENEC ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved;
    7.Module Rotatable ±25° ,Separate module can be mounted on the same robust bracket to offer the utmost flexibility;

    View Dimensional Drawings

    Photometrics
    The optical lens is made of PC, and the transmittance reaches 92%,reducing light loss,maximize the lumens on where it should be lit up and evenness, minimize lighting pollution to nature and human life.

    Installation
    1.Wall installation 2. Ground installation 3.Pole installation

    Application
    LED Sports Flood Light is very suitable for large areas such as sports fields, stadiums, Racing track, Ballpark airports, terminals, etc.
