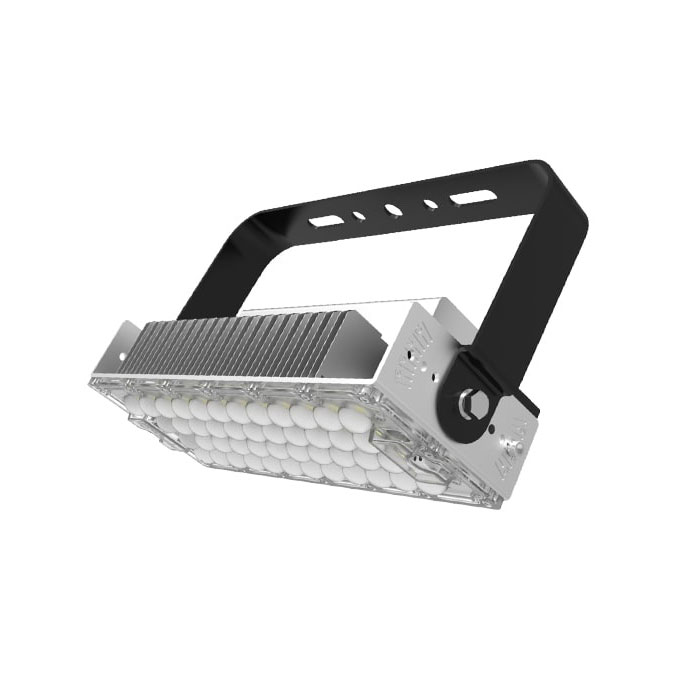

100W Slim Pro LED Sport Flood Light Fixtures - 240V Outdoor 17500lm Aluminum Fin Module Spotlights
- 175Lm/W can save a lot of energy consumption for your stadium sports field and get more and higher quality light;
- 100 watt LED Sport Flood light can emit 17,500 lumens of light and can replace 200-250 watt metal halide MH or HPS/ HID lamps. 3000-6500K optional light colors ensure that bright and clear light with different color temperatures can be selected in different scenes;
- Using folding Aluminum Fin design, light weight, Thermal effect is good;
- The bracket can be rotated up and down for easy adjustment, and can be installed in various ways. Ideal for directing light more precisely in the right direction or areas with special lighting requirements. It is the best installation or refurbishment option for basketball courts, football fields, baseball fields, golf courses and other sports fields;
Warranties & Certifications
Specifications
Watt: 100W
Lumen: 16,000Lumen, 17,500Lumen
Efficiency: 160Lm/W±3% 175Lm/W±3%
Input Volt: 100-277VAC
Chip Brand: Lumileds/ Osram 5050
CCT: 3000K 4000K 5000K 5700K 6500K
Modules: Rotatable
Weight: 2.2kg
Size: 297*263*132mm
Beam Angle: 10/ 20/ 40/ 60/ 90 degree/ 140*100/ 135*60 degree(P50)
Driver: Meanwell XLG-100-H-A
Wind rating: 51.0-56.0m/s
IP Rating: IP66 & IK10
CRI: Ra70 (Ra80, Ra90 optional)
Dimmable: Optional dimmable and non-dimmable
Certification: ENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved
Life Time: L70/B10 >50,000hours
Warranty: 5 Years / 7 years extended warranty available
Why Choose Slim Pro 100W LED Sport Flood Lights?
1.High luminaire efficiency up to 175lm/w;
2.Marine grade aluminum housing;
3.IP66 and IK10 protection rate;
4.5 years warranty;
5.Folding aluminum fin design which are very light weight;
6.ENEC ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved;
7.Module Rotatable ±25° ,Separate module can be mounted on the same robust bracket to offer the utmost flexibility;
View Dimensional Drawings
Photometrics
The optical lens is made of PC, and the transmittance reaches 92%,reducing light loss,maximize the lumens on where it should be lit up and evenness, minimize lighting pollution to nature and human life.
Application
LED Sports Flood Light is very suitable for large areas such as sports fields, stadiums, Racing track, Ballpark airports, terminals, etc.
