Our 480W Stadium LED lighting Fixtures is designed to replace 1200-1500W metal halides and HPS flood lamps. We have authoritative certifications such as ETL DLC ENEC TUV CE RoHS SAA CB IECEE Lm79 Lm80 ISTMT IK08 Salt spray test. We specialize in the R&D and manufacturing of Stadium LED flood lighting to support the illuminating of large areas. We have achieved very good results in all kinds of large area lighting. High performance lighting ideal for sports fields and stadiums,Each module can be adjustable with the marking scale to adjust the angle accurately,which help achieve the perfect uniformity illumination.

Warranties & Certifications

Features
1.Unique quality of light with flickerfree operation suitable for HDTV broadcasting and Super Slow Motion.
2.Flexible optical system optimising lighting distributions for best in class results.
3.Compact and low weight for minimal structural costs.
4.Fully controllable solution enabling instant lighting, stepped illumination levels and event lighting with dynamic lighting scenarios.
5.100-277VAC, no additional adapter required
6.480W led floodlights up to 79,200 Lumens.
7.We offer a 5-year warranty on this LED floodlight.
8.60%-80% energy efficiency, can work more than 50,000 hours, you can save a lot of energy consumption every year after replacing our LED lights.
9.Lightweight design will reduce safety hazards and installation difficulties when installed at high altitude.
10.Instant start and no flicker, so there is no need to worry about startup issues.
11.High uniformity and color rendering.

Specifications
Watt：    480W
Lumen：    79,200 Lumen
Efficiency：    165Lm/W±3%
Input Volt：    100-277VAC
Chip Brand：    Lumileds 5050
CCT：    4000K 5000K
Modules：    Rotatable
Weight：    16.2kg
Size：    745.3*594*172mm
Driver：    Meanwell 2*XLG-240-H-A
Beam Angle：    10/ 20/ 60/ 90*10(p50-p8)/ 135*60(p50)/97*47(TypeLV)
CRI：    Ra70 (Ra80, Ra90 optional)
IP&IK Rating：    IP66 / IK08
Wind rating：    51.0-56.0m/s
Life Time：    L70/B10 >50,000hours
Warranty：    5 Years / 7 years extended warranty available
Dimmable：    Dimmable and Non-dimmable
Certification：    ETL DLC ENEC TUV CE RoHS SAA CB IECEE Lm79 Lm80 ISTMT IK08 Salt spray test

View Dimensional Drawings

1.Rotating scale on the luminaire for customers to adjust the angle more accurately.

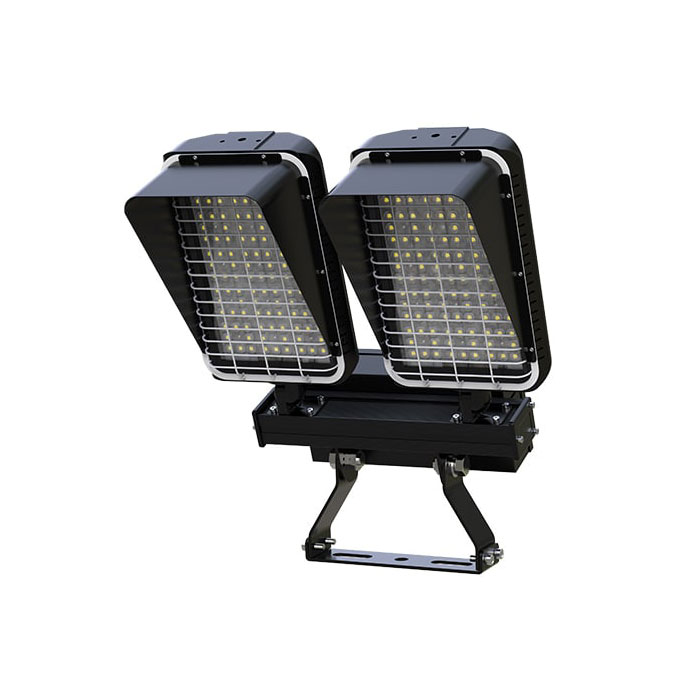

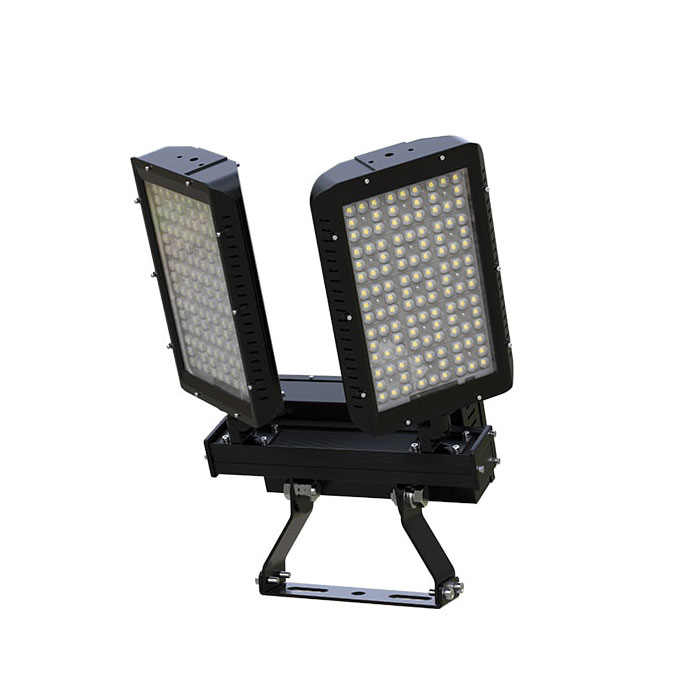

2.Module rotatable up & down & back and front up to 360 degree.

Most manufacturers design the lighting fixtures implementing lens and reflector technologies for desired light distribution.These existing LED lighting methods according to the characteristics of the light will spread to a wider area and will also fall on the area that does not need the light and may lead to light pollution which is inefficient in terms of energy savings. Dragonfly LED Football filed light technology prevents light pollution and emits the light only to the target area, This is advanced technology to control luminance with low power consumption to providea simillar level of luminous flux and also to maximize energy savings.

The lightweight design not only ensures the convenience of high power LED Flood Lights during installation. Moreover, many safety hazards can be eliminated during use. After a long period of use, the pole will gradually age. If the weight of the fixture is too heavy, it may collapse, as shown in the picture below. With our lightweight Stadium LED flood Light, the probability of this happening will be greatly reduced.

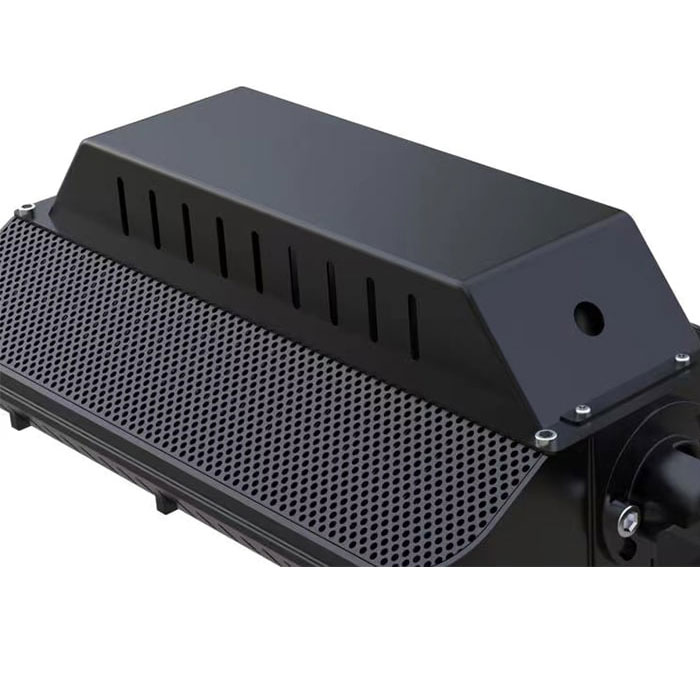

Our golf course LED flood light uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast flood light. There is a big advantage in installing our led football field flood light for aerial work. Lightweight design provides easy refurbishment of existing HPS, MH installations as well as quick installation.

The IP66 waterproof and lightning protection design makes the LED football field floodlights resistant to harsh conditions.

The male female plugs are used for all power supplies and modules. Make maintenance and installation more convenient.

As shown in the figure below, a bad light source will cause too many shadows on the main court, affecting the athlete's line of sight and experience, and will reduce the visual clarity of the audience and the TV station, which will seriously cause strobe and affect the viewing experience.
In order to minimize the impact of this shadow, we have already solved this process in designing this LED golf course lights. With our new LED Flood Light, we will get a good lighting environment. Our module is rotatable. A uniform distribution of light can be achieved perfectly. And equipped with anti-glare cover, so that athletes and viewers can get a good experience.

Highly uniform illumination makes this LED golf field light ideal for outdoor sports lighting, regional lighting.

Our engineers can customize professional DIAlux simulation for your venue for free.You only need to provide relevant site information, and our engineers will choose the best combination of power and beam angle for the LED lights.
