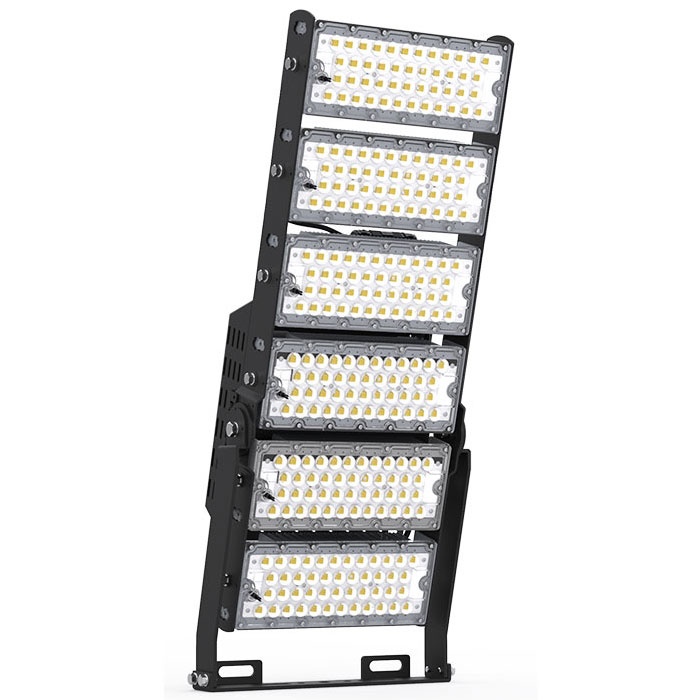

This Series LED High Mast Light features adoption of Lumileds 5050 Light source and Power Supply with high quality, energy conservation, high luminance and long service life. And there are multiple certifications of the US authoritative ENEC, REACH, ETL, cETL, DLC,CB,Salt Spray test. It adopts Marine grade aluminum shell for aesthetics and good heat dissipation, with a long service life of 50000h.The products emits soft and well-distributed light along with brighter effect and great color rendering. With illumination equivalent to 1200 watt metal halide fixtures you'll enjoy an instant-on,flicker-free cold start,and industry-leading 160Lm/W.And it adopts UL TUV certification power supply with high efficiency along with low heat and high accuracy of constant current. It also features unique structure, high efficiency and green technology.Widely used in stadiums, golf courses, tennis courts, docks, parking lots, airports and other lighting venues.

Warranties & Certifications

Features
IP65 rated LED floodlight
Rotatable modules offering maximum customisation
Heavy duty stirrup mounting bracket
Multiple optics available
Can be installed as a floodlight or high bay
With illumination equivalent to 1200 watt metal halide fixtures you'll enjoy an instant-on, flicker-free cold start, and industry-leading 160Lm/W.
Protractor scale for easier aiming
50,000-hour operating life means years of maintenancefree operation.
Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.
Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.

Specifications
Watt:    600W
Lumen:    96,000Lumen
Efficiency:    160Lm/W±3%
Driver:    Meanwell Driver 3*ELG-240-48A
Input Volt:    100-277VAC
Chip Brand:    Lumileds 5050
Color Temp:    3000K / 4000K / 5000K / 5700K
Weight:    13.2kg
Size:    861*362*132mm
Beam Angle:    10 /20/ 40 / 60 / 90/ 140*100 degree
Modules:    Module rotatable up & down 15 degree
Dimming:    Dimmable/ Non-dimmable
Wind rating:    51.0-56.0m/s
Lifespan:    >50,000 Hours
IP Rating:    IP65 & IK08
Certficates:    ENEC, REACH, ETL, cETL, DLC,CB,Salt Spray test

View Dimensional Drawings

Our led high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast. There is a big advantage in installing our led high mast lights for aerial work. Lightweight design provides easy refurbishment of existing HID installations as well as quick installation.

Adjustable angle
1.Rotatable module
2.Replaceable optical lens
3.Protractor scale for easier aiming
4.Lengthened heavy duty mounting bracket allowing for 360 degree rotation
5.Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink and other 6.components,these fixtures can withstand corrosive and salt intensive environments.

Applications
Applied in large sports field lighting, golf and tennis court,racetrack,
badminton, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.
