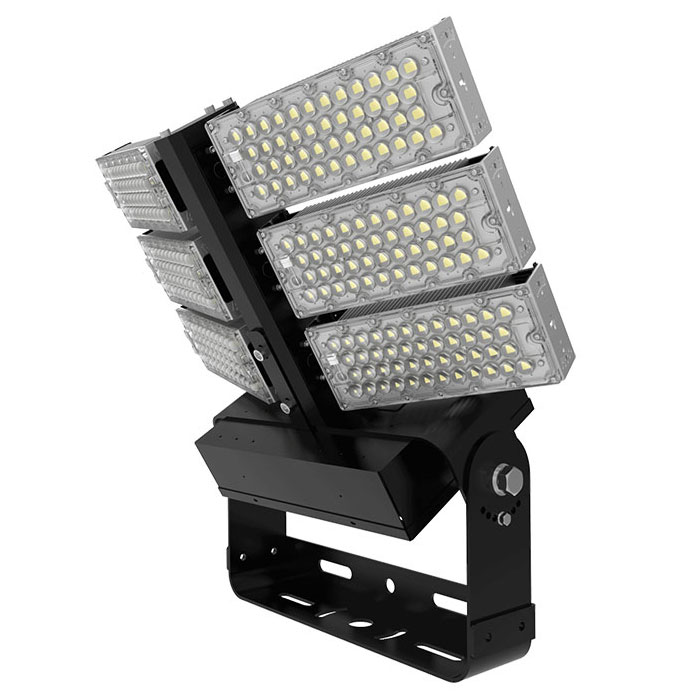

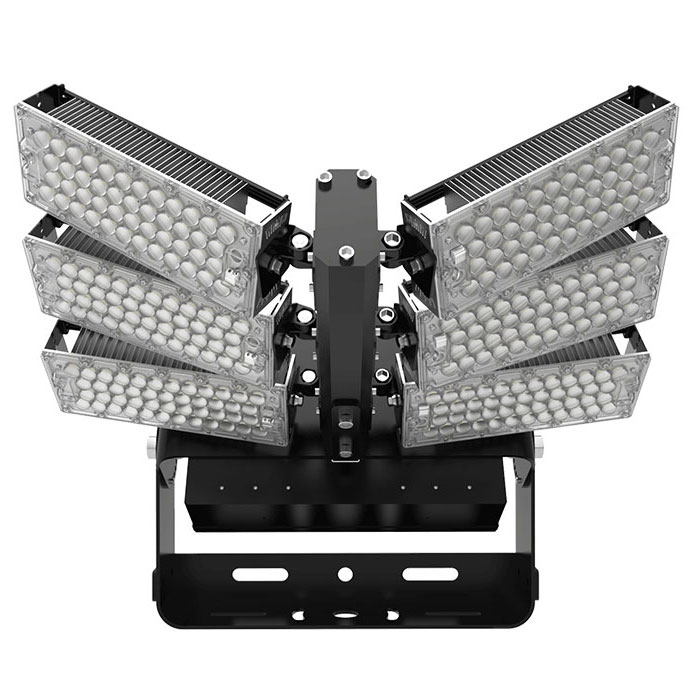

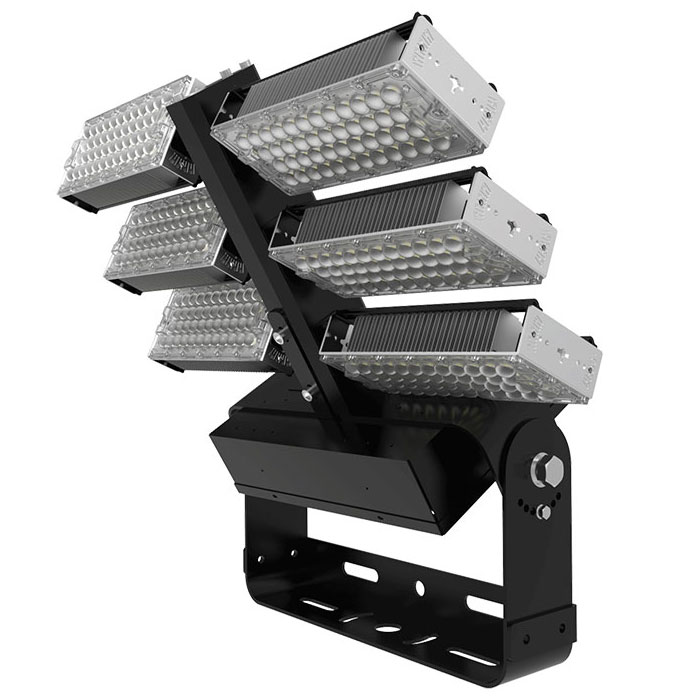

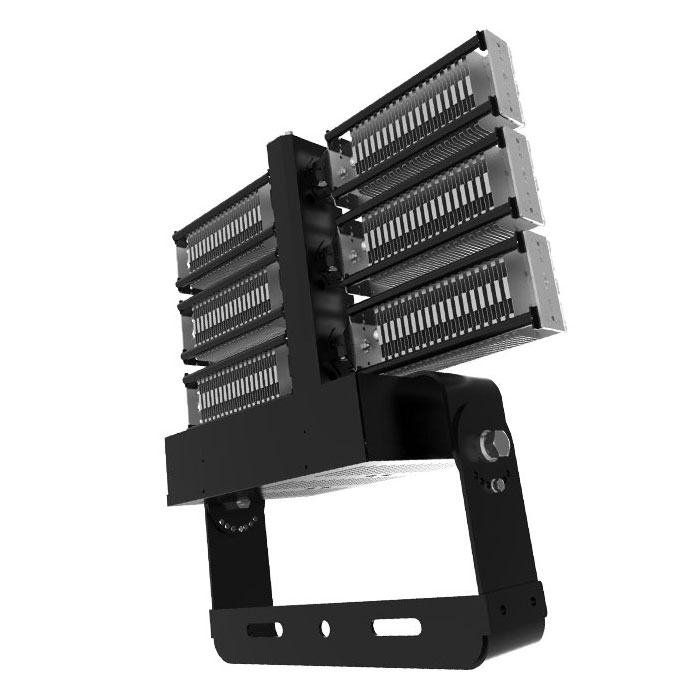

720W LED High Mast Light, High Pole Light with Rotatable Module
Our LED high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast. There is a big advantage in installing our led high pole lights for aerial work. Lightweight design provides easy refurbishment of existing HID installations as well as quick installation.
Warranties & Certifications
Features
IP65 rated LED floodlight

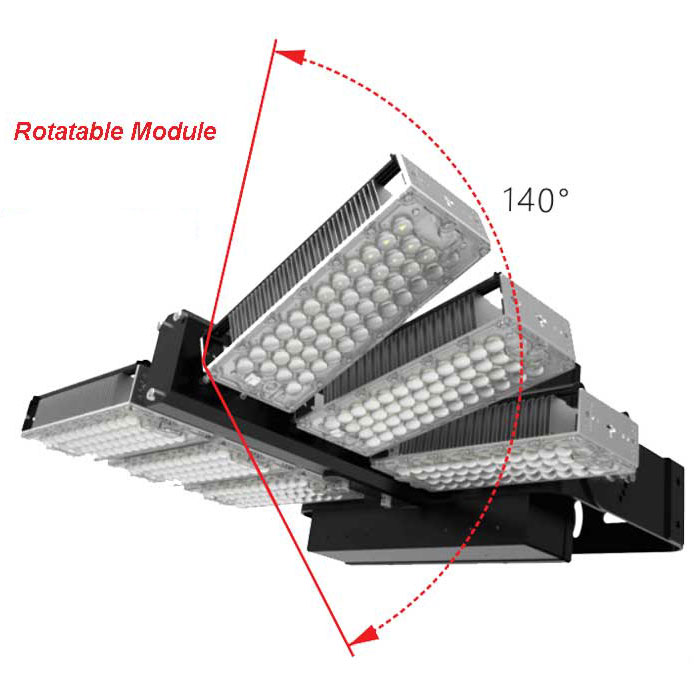

Rotatable modules offering maximum customisation
Heavy duty stirrup mounting bracket
Multiple optics available
Can be installed as a floodlight or high bay
With illumination equivalent to 1200 watt and 1500W metal halide fixtures you'll enjoy an instant-on, flicker-free;cold start, and industry-leading 155-160Lm/W.
Protractor scale for easier aiming
50,000-hour operating life means years of maintenancefree operation.
Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.
Lightweight design provides easy retrofitting of existing HID installations,along with quick mounting on all new installations.
Specifications
Watt: 720W
Lumen: 111,600Lumen
Efficiency: 155Lm/W±3%
Input Volt: 100-277VAC
Chip Brand: Lumieleds 5050
CCT: 3000-6500K
Modules: 360 Degree Rotatable
Weight: 23kg
Size: 723*694*268mm
Driver: Meanwell 3*ELG-240-48A/ 3*XLG-240-H-A
IP Rating: IP65 & IK08
Lifespan: >50,000 Hours
Dimming: Dimmable / Non-dimmable
Module rotatable: Module rotatable up & down & back and front
Fixture Material: Marine grade aluminum
Wind rating: 51.0-56.0m/s
Beam Angle: 10/ 20/ 40/ 60/ 90/ 140*100/ 135*60 degree(P50)
Certfication: ENEC ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved
View Dimensional Drawings
Light weight
1.weight of folding fin heat sink is 50% ligher than die costing, extrution etc.
2.1070 aluminum, thickness 0.5mm. structure on heat dissipation, the heat dissipation area is larger, and the heat dissipation effect is better, it's with Lighter weight, which is 1/3 of weight of die-casting, proximate matter and cold forging.
Applications
Applied in large sports field lighting, golf and tennis court,racetrack,
badminton, roads, football, basketball, tower lights, etc. Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.
