• 175Lm/W can save a lot of energy consumption for your stadium sports field and get more and higher quality light;

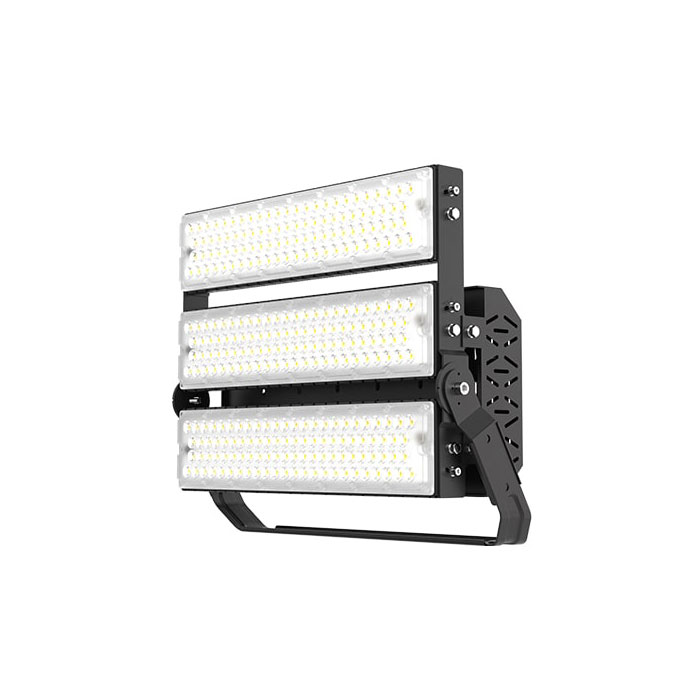

• 720 watt Module LED Flood light can emit 122,400 lumens of light and can replace 1500 watt metal halide MH or HPS / HID lamps. 3000-6500K optional light colors ensure that bright and clear light with different color temperatures can be selected in different scenes；
• Using folding Aluminum Fin design, light weight, Thermal effect is good；
• The bracket can be rotated up and down for easy adjustment, and can be installed in various ways. Ideal for directing light more precisely in the right direction or areas with special lighting requirements. It is the best installation or refurbishment option for basketball courts, football fields, baseball fields, golf courses and other sports fields；

Warranties & Certifications

Specifications
Watt:    720W
Lumen:    115,200Lumen,    122,400Lumen
Efficiency:     160Lm/W±3%,    170Lm/W±3%
Input Volt:    100-277VAC
Chip Brand:    Lumileds/ Osram 5050
CCT:    3000K 4000K 5000K 5700K 6500K
Modules:      None Rotatable
Weight:    12.5kg
Size:    649*375*188mm
Beam Angle:    10/ 20/ 40/ 60/ 90 degree/ 140*100/ 135*60 degree(P50)
Driver:    Meanwell 3pcs XLG-240-H-A/ ELG-240-48A
Wind rating:    51.0-56.0m/s
IP Rating:    IP66 & IK10
CRI:    Ra70 (Ra80, Ra90 optional)
Dimmable:    Optional dimmable and non-dimmable
Certification:    ENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved
Life Time:    L70/B10 >50,000hours
Warranty:    5 Years / 7 years extended warranty available

Why Choose 720W Module LED Flood Lights?

1.High luminaire efficiency up to 175lm/w;
2.Marine grade aluminum housing;
3.IP66 and IK10 protection rate;
4.5 years warranty;
5.Folding aluminum fin design which are very light weight;
6.ENEC ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved;
7.Module Rotatable ±25° ,Separate module can be mounted on the same robust bracket to offer the utmost flexibility;

View Dimensional Drawings

Photometrics
The optical lens is made of PC, and the transmittance reaches 92%,reducing light loss,maximize the lumens on where it should be lit up and evenness, minimize lighting pollution to nature and human life.

Installation
1.Wall installation 2. Ground installation 3.Pole installation

Application
LED Sports Flood Light is very suitable for large areas such as sports fields, stadiums, Racing track, Ballpark airports, terminals, etc.
