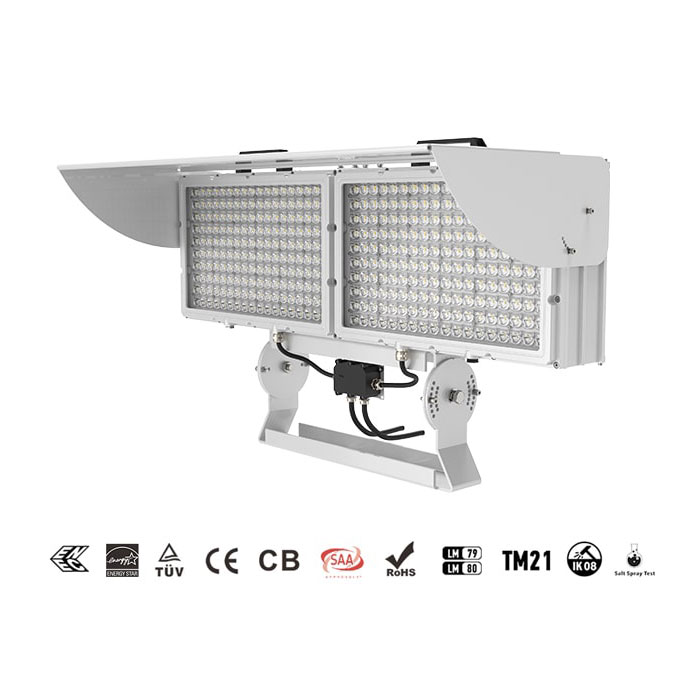

Anti-glare High Power 1000W LED Stadium Light - External driver 170,000lm 176-305VAC Arena Flood Light
Alpha 1000W is a lighting fixture specially desined for use in stadiums, anti-glare, high power, easy installation pure aluminum design is its unique advantage.LED stadium lighting has occupied the global lighting market. They are safe, consume less power, have a long life, lower the total cost of ownership and provide high-quality bright light. But the glare of stadium lighting is very unpleasant, which will directly affect the performance of the players and the enthusiasm of the audience. The alpha LED Stadium Light uses a uniquely designed beam angle of P70, which greatly reduces the glare from the lighting, and is very suitable for Stadium, Arena, football court and rugby court etc.
Features
1. Lamp design with handle makes. installation more convenient;
2. The anti-glare design prevents the lighting from affecting the eyes of athletes and spectators;
3.High-quelity glass and lens make the light quality higher;
4.Using 1060 Pure aluminum heat sink.better heat dissipotion performance.more durable;
5.Aiming device can help calibrotethe lamp during instelletion;

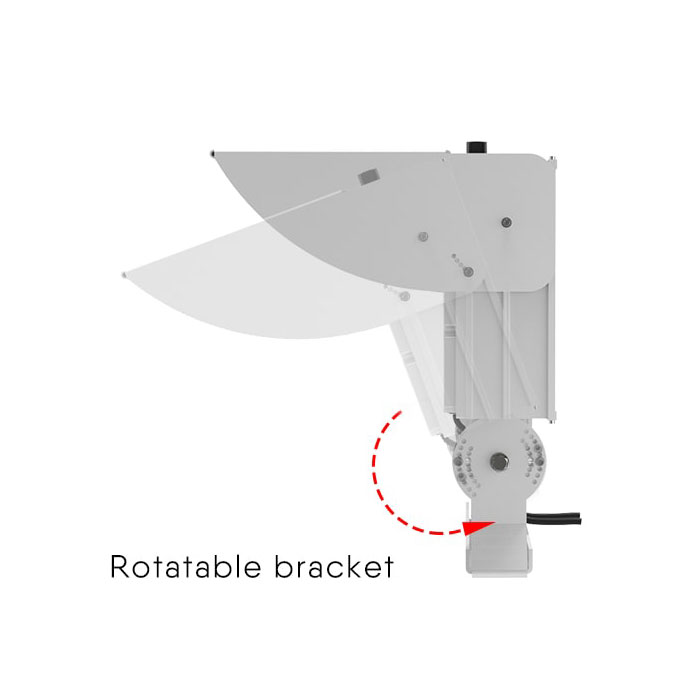

6.The bracket can be rotated andadjusted;
Warranties & Certifications
Specifications
Watt: 1000W
Lumen: 140,000Lumen, 170,000Lumen
Efficiency: 140Lm/W±3%, 170Lm/W±3%
Beam Angle: P70(Anti-glare), P45(Anti-glare), 30, 60, 90 degree
Input Volt: 176-305VAC 50/60HZ

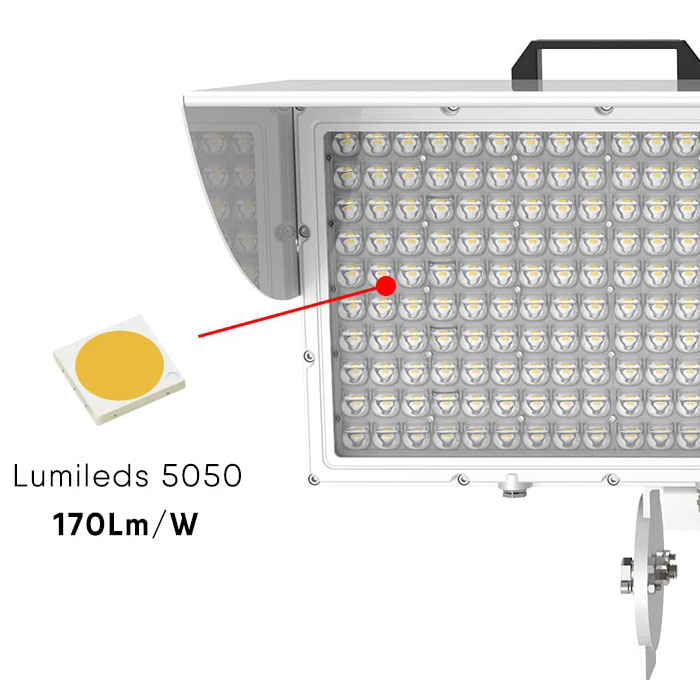

Chip Brand: Lumileds 5050
CCT: 4000K 5000K 5700K 6000K
CRI: CRI>70 (CRI>80 optional)
Wind rating: 51.0-56.0m/s
Reflector driver box: Included
Dimming: Non-dimmable (Dimmable Optional)
Weight: 28kg
Size : 920*382*545mm
Driver: Inventronics EBM-1K2S740MG
Certification: ENEC ERP TUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved
View Dimensional Drawings

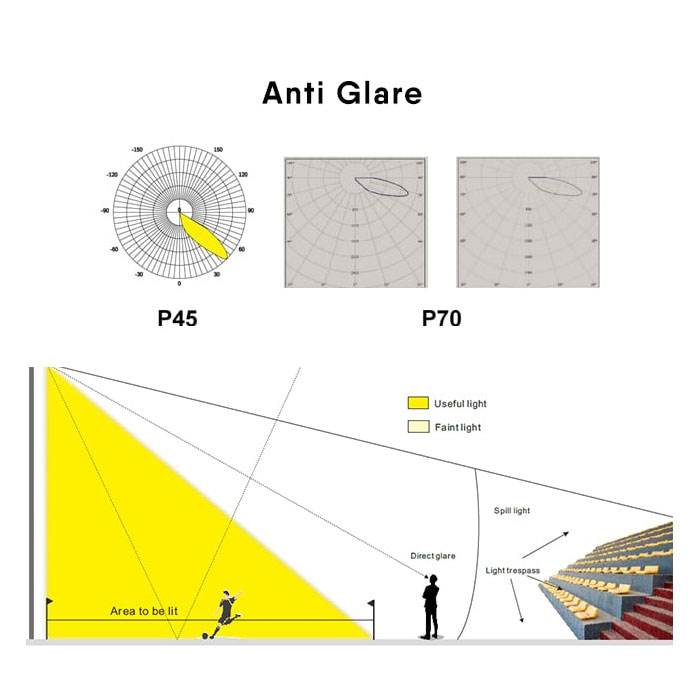

Anti-Glare Beam Angle
1.P70 Beam Angle can only be installed straight to the pole no need to adjust the angle of the bracket,the direction of light perpendicular to the ground;
2.P45 Beam Angle can only be installed straight to the pole no need to adjust the angle of the bracket,the direction of light perpendicular to the ground;
Optional External or Internal driver box version

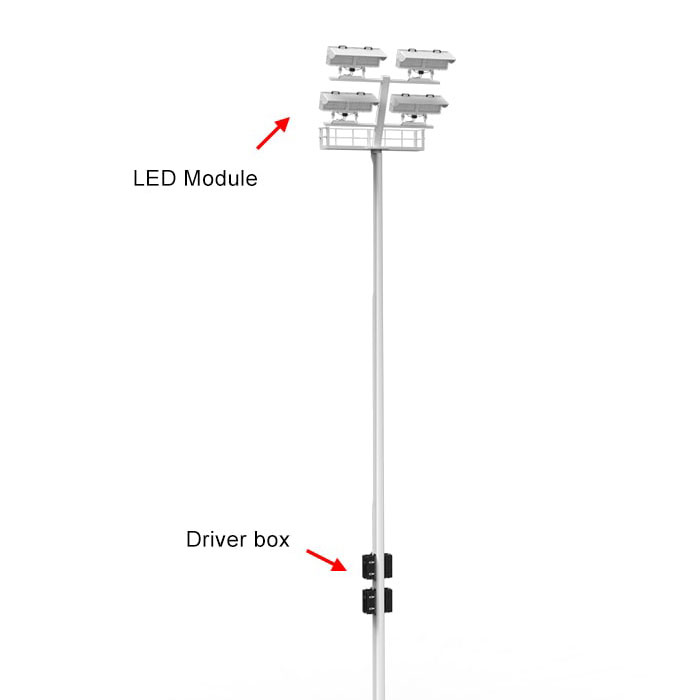

1.External driver box version
External driver box version is suitable for large sports venues. External driver box will be installed remotely from the lamp under the pole which lower the weight and easy for future maintanance;
2.Internal driver version
Internal driver version Internal driverversion, cost-effective, suitablefor small sports field lighting needs. Reduced installation time and fastinstallation;
Beam Angle
P70(Anti-glare), P45(Anti-glare), 30, 60, 90 degree;
Certification Testing
Alpha LED Stadium Light will undergo rigorous various tests before they leave the factory to ensure the quality of the lamps.

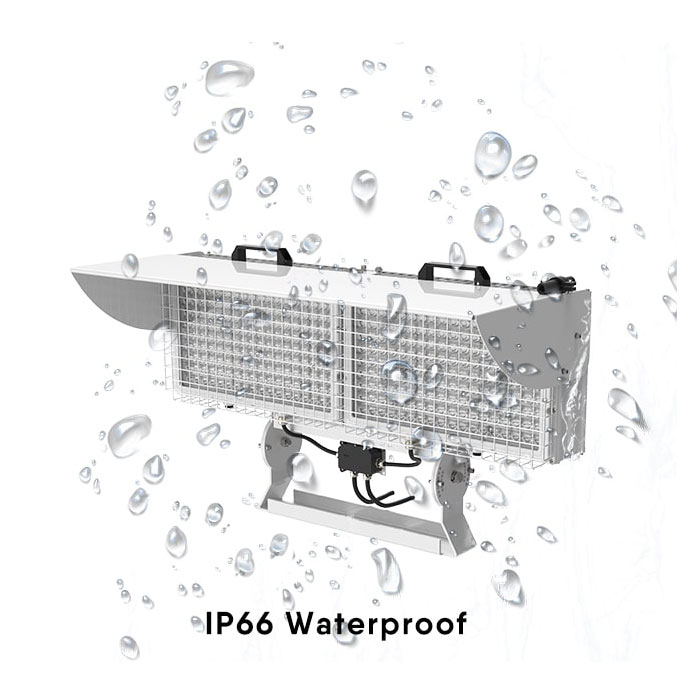

Including: 1.IPX6 Testing 2.IK08 Testing 3. Surge Testing 4. IED Testing 5. Temperature Testing 6. Drop Testing
Application
Alpha series LED Stadium Light because of its unique advantages, anti-glare GA<40, the lamp can be installed separately from the power supply, reducing the weight of the pole. Therefore, it is very suitable for application in various large sports fields, arenas, central squares, etc.
